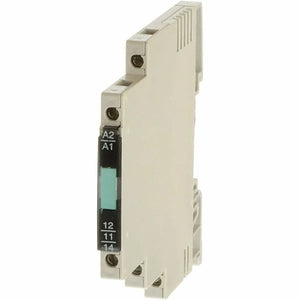

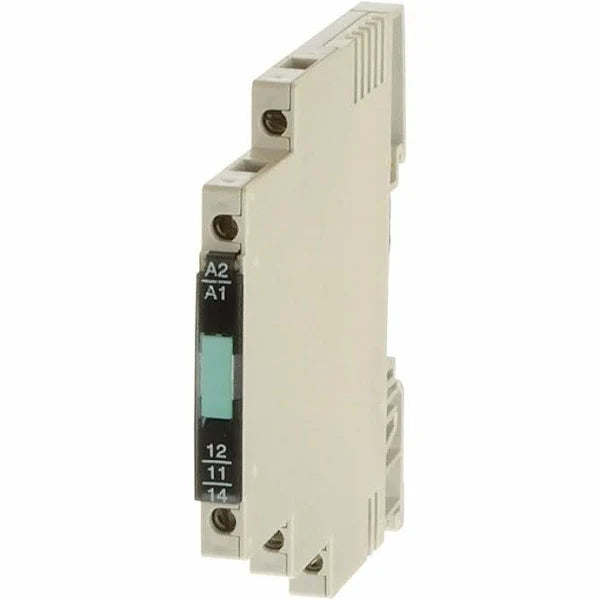

3TX7004-1LB00 | Siemens | Output Interface Module
- Regular price
- $90.00
- Sale price
- $90.00
- Regular price
-
Do you need more quantity?
Product Description P/N: 3TX7004-1LB00
Description
The Siemens 3TX7004-1LB00 is a SIRIUS Output Interface Module designed for industrial applications. Featuring 1 C/O (changeover) configuration, this module facilitates reliable switching operations within control systems. It operates with a power supply voltage of 24V AC/DC, offering flexibility in compatibility. Equipped with screw terminals, it ensures secure and convenient electrical connections. The housing width of the module is compact, measuring 6.2mm, enabling efficient space utilization within control panels or enclosures.
Technical Specifications
Part # |
3TX7004-1LB00 |
Manufacturer |
SIEMENS |
Brand |
FURNAS ELECTRIC CO |
Category |
Drives |
Subcategory |
Control/Interface Board |
Type of voltage |
AC/DC |
current circuit / rated value |
|
- Minimum Hz |
50 |
- Maximum Hz |
60 |
Control supply voltage |
|
- At 50 Hz / at AC / rated value |
24 |
- Minimum V |
24 |
- Maximum V |
24 |
- At 60 Hz / at AC / rated value |
24 |
- Minimum V |
24 |
- Maximum V |
24 |
- For DC / rated value |
24 |
- Minimum V |
24 |
- Maximum V |
24 |
Design of the electrical connection |
Screw-type terminals |
Jumper socket |
No |
Relay operating mechanism |
Poled |
Switching function |
Changeover switch |
- Guided |
No |
Product component / jumper socket |
No |
Width (mm) |
6.2 |
Height (mm) |
78 |
Depth (mm) |
81 |
Protection class |
IP20 |
Ambient temperature during operating (°C) |
-25 ... +60 |
Information About 3TX7004-1LB00
The Siemens 3TX7004-1LB00 is a SIRIUS Output Interface Module designed to provide versatile control capabilities in industrial settings. It features a single changeover contact (1 C/O) configuration, suitable for various applications requiring control switching functionality. The module supports a supply voltage of 24VAC/DC, ensuring compatibility with common industrial power systems.
Equipped with screw terminals, the 3TX7004-1LB00 facilitates secure and convenient wiring connections, enhancing installation efficiency. With a compact housing width of 6.2mm, the module conserves space within control panels, optimizing layout and integration.
The 3TX7004-1LB00 module is engineered to meet industrial-grade standards, offering reliable performance in demanding environments. Its robust design and durable construction ensure longevity and resilience against environmental factors and operational stressors.
Designed for industrial automation and control applications, the Siemens 3TX7004-1LB00 SIRIUS Output Interface Module serves as a fundamental component in control systems, enabling precise and responsive control of machinery and processes. Whether used in manufacturing, processing, or other industrial sectors, this module delivers consistent and dependable operation.
The module's compatibility with both AC and DC power sources enhances its versatility, allowing seamless integration into diverse control systems. Its single changeover contact configuration provides flexibility in controlling various devices and equipment.
With its compact design and reliable performance, the Siemens 3TX7004-1LB00 SIRIUS Output Interface Module offers an efficient solution for industrial control applications. It ensures precise and dependable operation, contributing to the overall efficiency and productivity of industrial processes.
Manufacturer information
Siemens: A renowned global manufacturer, leading in technology, engineering, and innovation across diverse sectors for a sustainable future.
