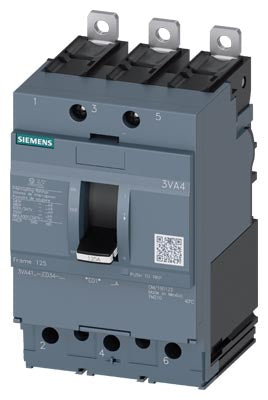

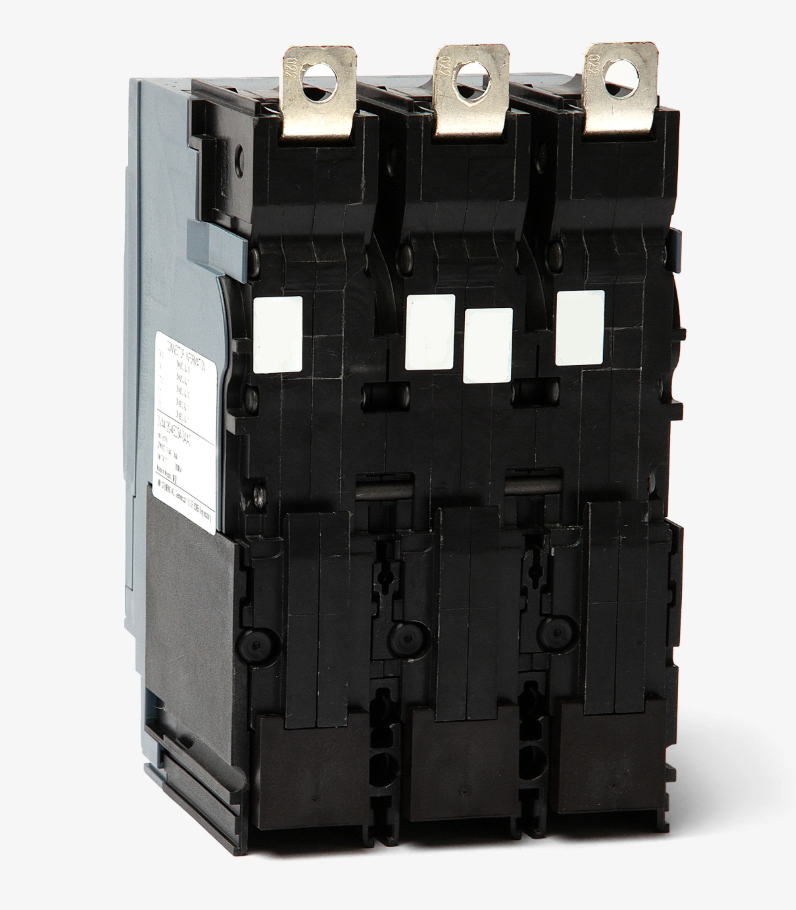

3VA4110-6ED34-0AA0 | Siemens 3VA4 100A 3-Pole 600V Molded Case Circuit Breaker
- Regular price
- $679.00
- Sale price
- $679.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 3VA4110-6ED34-0AA0
Description
The Siemens 3VA4110-6ED34-0AA0 is a 3-pole molded case circuit breaker rated at 100 amps and 600 volts, designed for dependable circuit protection in industrial and commercial electrical systems. Featuring a high interrupting capacity of 65kA at 480V, it ensures safe operation under demanding load and fault conditions. The breaker combines durable construction with precise thermal magnetic trip technology for consistent overload and short-circuit protection.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Circuit Breaker |
| Part Number | 3VA4110-6ED34-0AA0 |
| Subcategory | Molded Case |
| Series | 3VA4 |
| Frame Type | 3VA41 |
| Poles | 3 |
| Phase | 3-Phase |
| Rated Current | 100A |
| Rated Voltage | 600V AC |
| Interrupting Capacity | 65kA @ 480V, 25kA @ 600Y/347V |
| Trip Unit Type | Thermal Magnetic (LI – Long-Time and Instantaneous) |
| Connection Type | Bolt-On |
| Terminal Connection | Load-Side Lug |
| Frame Size | 125A |
| Temperature Range | -25°C to +70°C (-13°F to +158°F) |
| Certifications | UL Listed, CSA Approved |
| Country of Origin | Mexico |
| Dimensions (H × W × D) | 5.315 × 6.299 × 3.465 in |
| Weight | 2 lb |
Information About 3VA4110-6ED34-0AA0
The 3VA4110-6ED34-0AA0 is part of Siemens’ 3VA4 molded case circuit breaker series, known for its modular design and advanced protection capabilities. Built with a 3VA41 frame and thermal magnetic trip unit, it provides LI (Long-Time and Instantaneous) functions for accurate current management. The device supports bolt-on connections with load-side lugs, ensuring a secure electrical interface and easy installation. Designed to meet UL standards, it delivers reliable performance in power distribution panels and industrial control systems operating at up to 600V.
Key Features:
- Rated Current: Supports up to 100A continuous operation for medium-power electrical loads.
- Voltage Rating: Operates at up to 600V AC for versatile industrial and commercial use.
- Interrupting Capacity: Rated 65kA at 480V and 25kA at 600Y/347V for effective fault protection.
- Trip Unit Type: Thermal magnetic unit with fixed long-time and instantaneous trip characteristics.
- Connection Type: Bolt-on terminals with load-side lugs for secure and quick installation.
- Frame Size: 3VA41 125A frame offering compact dimensions and high durability.
- Operating Temperature: Reliable from -25°C to +70°C (-13°F to +158°F).
- Certifications: UL Listed and CSA Approved for verified safety compliance.
The 3VA4110-6ED34-0AA0 delivers the reliability and precision required for dependable electrical protection in demanding industrial and commercial environments.
