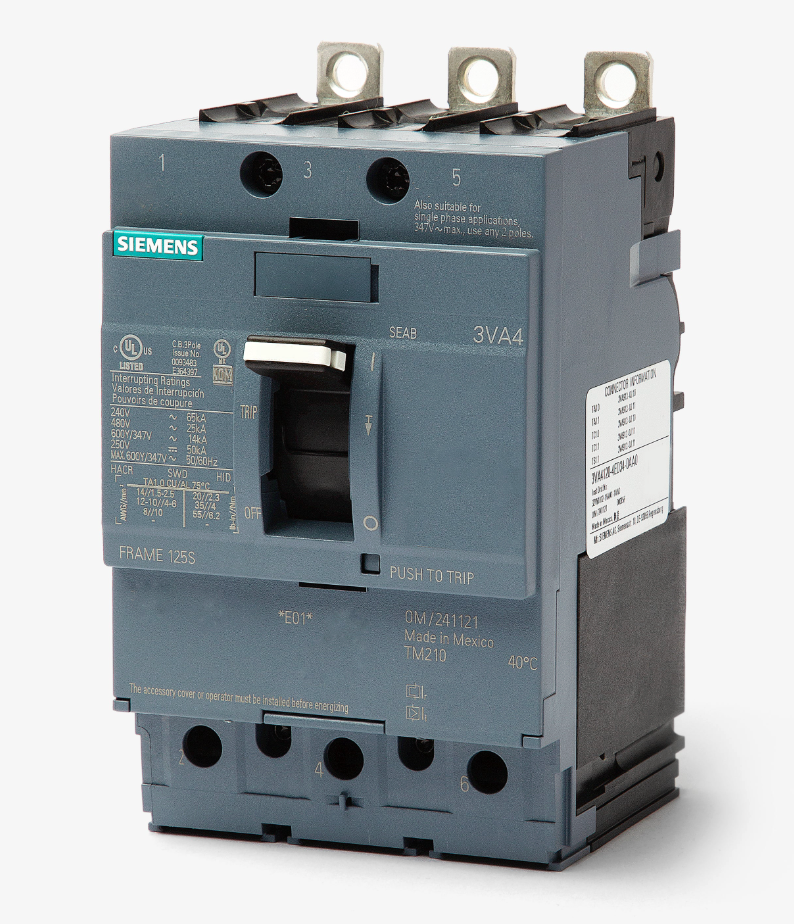

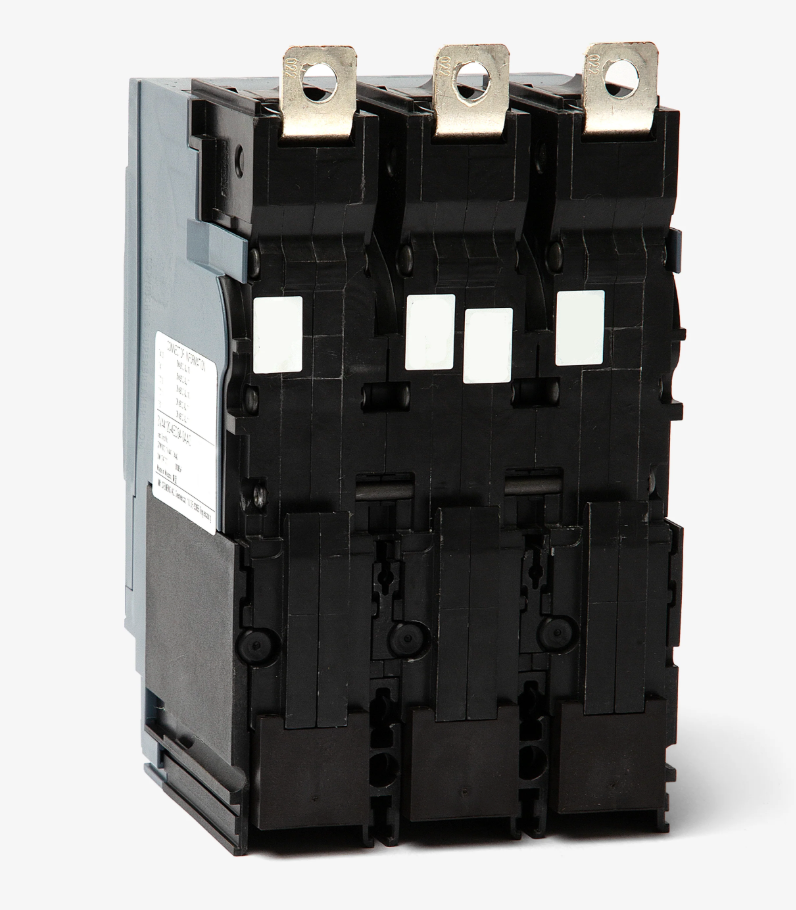

3VA4120-4ED34-0AA0 | Siemens 3VA4 20A 3-Pole 600V Molded Case Circuit Breaker
- Regular price
- $329.00
- Sale price
- $329.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 3VA4120-4ED34-0AA0
Description
The Siemens 3VA4120-4ED34-0AA0 is a 3-pole molded case circuit breaker designed to provide dependable protection for low-voltage electrical systems up to 600V. Rated for 20 amps, it features a 3VA41 frame with a standard (Class S) breaking capacity and an interrupting rating of 25kA at 480V. This circuit breaker offers precise thermal magnetic protection, making it ideal for commercial and industrial distribution panels.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Circuit Breaker |
| Part Number | 3VA4120-4ED34-0AA0 |
| Subcategory | Molded Case |
| Series | 3VA4 |
| Frame Type | 3VA41 |
| Poles | 3 |
| Phase | 3-Phase |
| Rated Current | 20A |
| Rated Voltage | 600Y/347V, 480V AC |
| Interrupting Capacity | 25kA @ 480V, 14kA @ 600Y/347V |
| Trip Unit Type | Thermal Magnetic (TM210, Fixed Ir and Ii) |
| Functions | LI – Long-Time and Instantaneous |

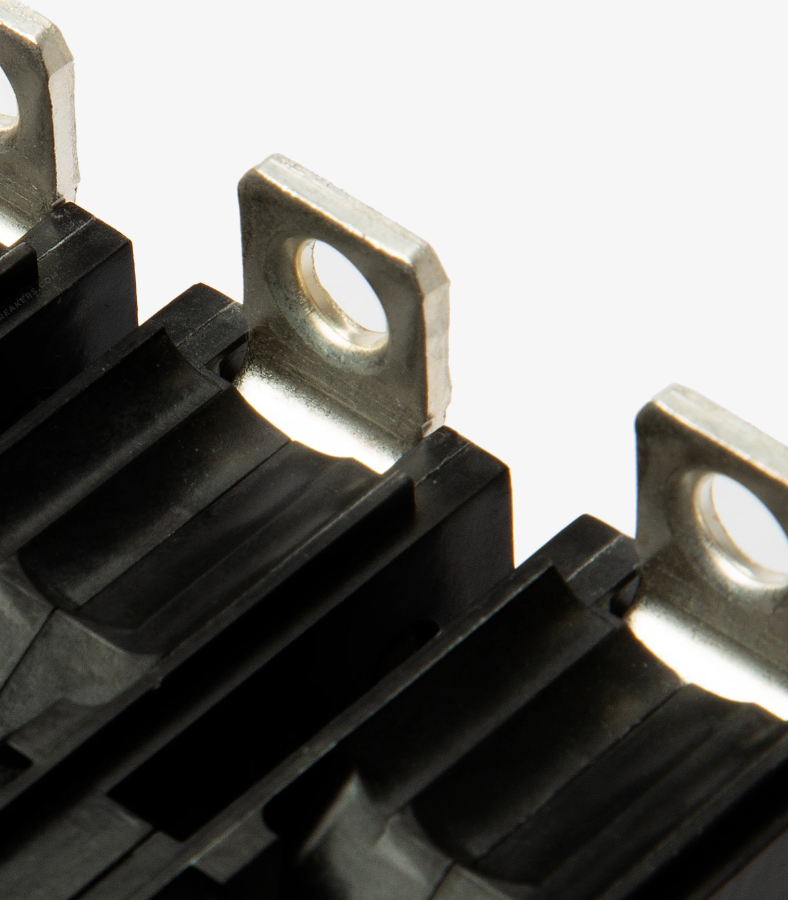

| Connection Type | Bolt-On |
| Terminal Connection | Load-Side Lug |
| Frame Size | 125A |
| Temperature Range | -25°C to +70°C (-13°F to +158°F) |
| Certifications | UL Listed, CSA Approved |
| Country of Origin | Mexico |
| Dimensions (H × W × D) | 5.315 × 6.299 × 3.465 in (approx. 3 × 5.5 × 3.7 in) |
| Weight | 1.63 lb |
Information About 3VA4120-4ED34-0AA0
The 3VA4120-4ED34-0AA0 is part of Siemens’ 3VA4 molded case circuit breaker family, engineered for consistent performance and modular installation flexibility. It includes a TM210 thermal-magnetic trip unit with fixed long-time (Ir) and instantaneous (Ii) settings, ensuring stable operation and circuit protection. This model supports bolt-on mounting with load-side lug terminals, allowing quick and secure wiring connections. UL and CSA certified, it meets stringent safety standards for use in commercial facilities, industrial systems, and power distribution assemblies.
Key Features:
- Current Rating: 20A continuous operation capacity for small to medium electrical loads.
- Voltage Rating: Operates at up to 600Y/347V and 480V AC for versatile low-voltage systems.
- Interrupting Capacity: 25kA at 480V and 14kA at 600Y/347V for dependable short-circuit protection.
- Trip Unit Type: Thermal magnetic TM210 unit with fixed long-time and instantaneous trip functions.
- Frame Size: 3VA41 frame design for compact installation and efficient power distribution.

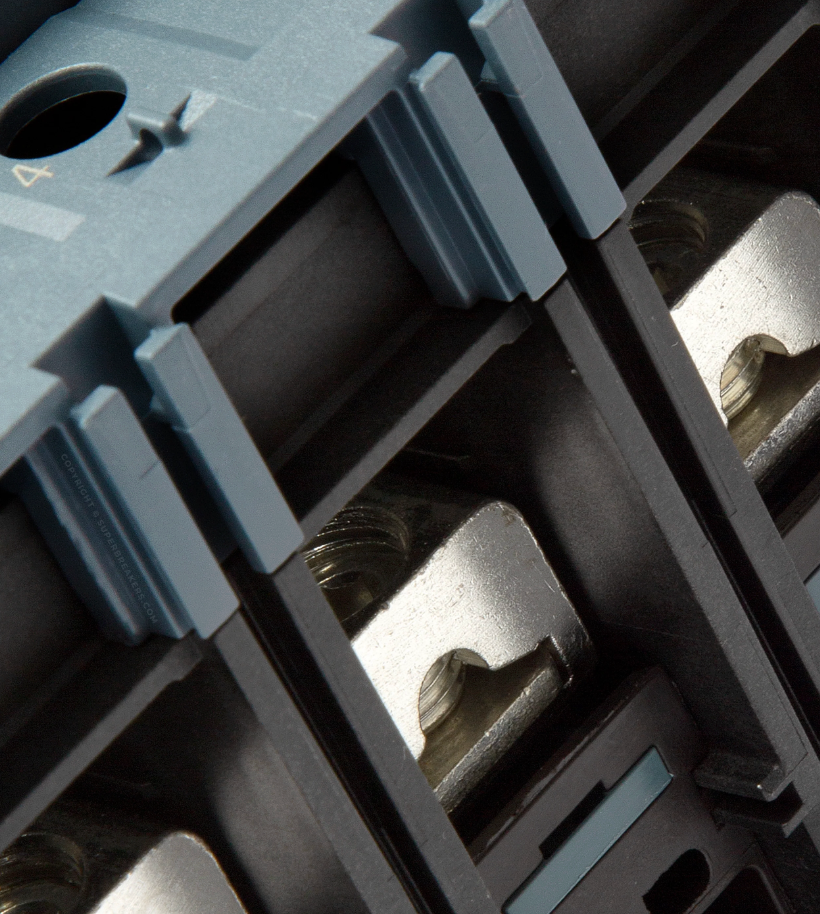

- Connection Type: Bolt-on with load-side lugs preinstalled for simple and secure mounting.
- Operating Temperature: Reliable function across -25°C to +70°C (-13°F to +158°F).
- Certifications: UL Listed and CSA Approved for verified quality and safety.
The 3VA4120-4ED34-0AA0 delivers the reliability and precision required for effective protection in commercial, industrial, and infrastructure electrical systems.
