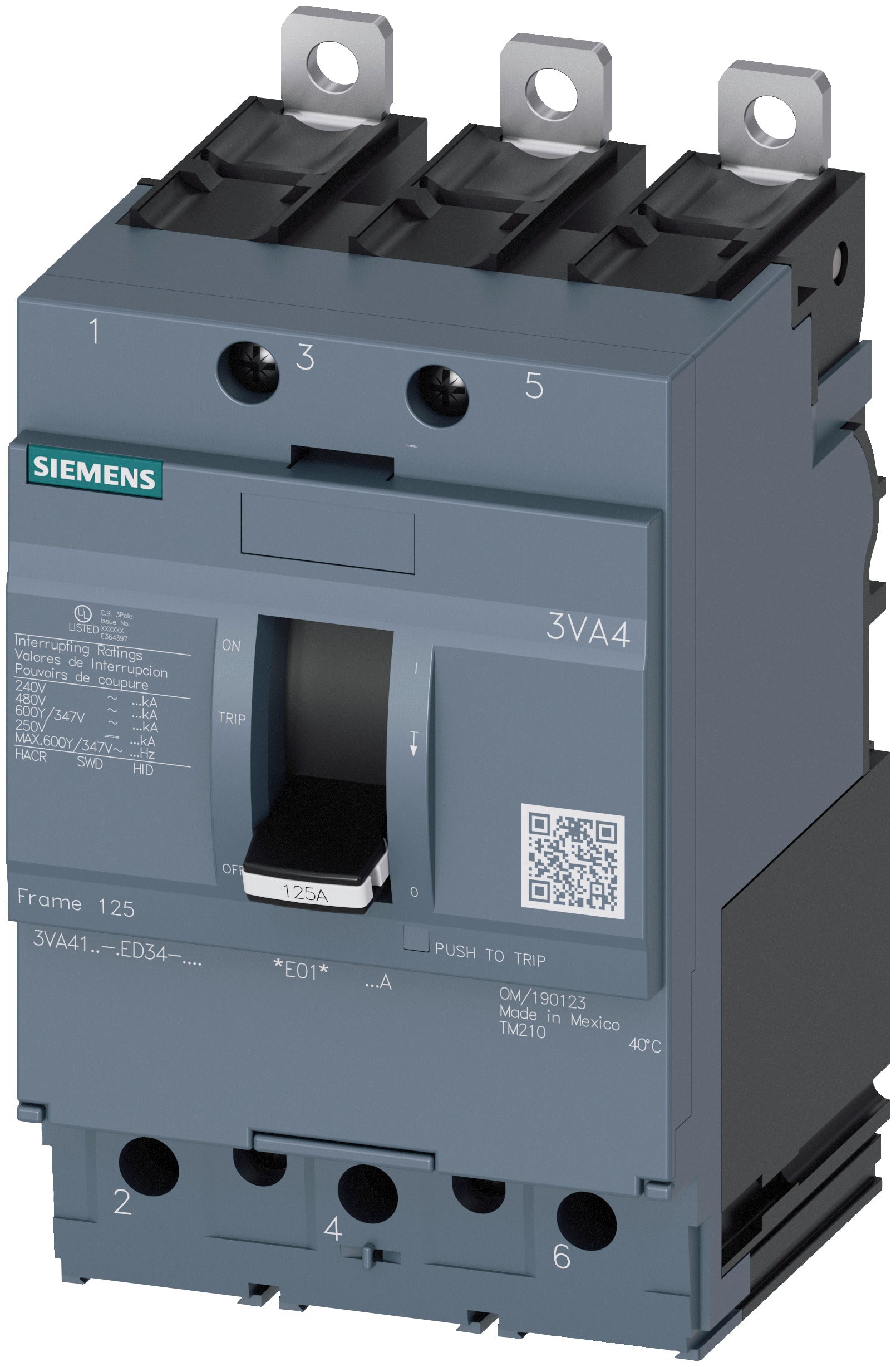

3VA4160-6ED34-0AA0 | Siemens 60A 3-Pole 600V Molded Case Circuit Breaker, 65kA @ 480V, 3VA4 Series
- Regular price
- $325.00
- Sale price
- $325.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 3VA4160-6ED34-0AA0
Description
The Siemens 3VA4160-6ED34-0AA0 is a 3-pole molded case circuit breaker designed for reliable circuit protection in industrial and commercial electrical systems. Rated at 60 amps and 600 volts AC, it offers a high interrupting capacity of 65kA at 480V, ensuring dependable performance under heavy load conditions. This model includes thermal magnetic trip protection and a bolt-on connection for secure installation and consistent operation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Circuit Protection |
| Part Number | 3VA4160-6ED34-0AA0 |
| Subcategory | Molded Case Circuit Breakers |
| Series | 3VA4 |
| Frame Type | 3VA41 |
| Amperage Rating | 60A |
| Voltage Rating | 600VAC |
| Poles | 3 |
| Interrupting Rating | 25kA @ 600Y/347V, 65kA @ 480V |
| Protection Type | Thermal Magnetic (TM210 Trip Unit) |
| Functions | Long-Time and Instantaneous Trip |
| Connection Type | Bolt-On |
| Terminal Type | Load Side Lug |
| Enclosure Rating | IP40 |
| Wire Range | 8 to 3/0 AWG (Cu/Al) |
| Frequency Rating | 50/60 Hz |
| Temperature Range | -25°C to +70°C |
| Phase | 3 |
| Standards Compliance | UL 489, CSA C22.2 |
| Country of Origin | Mexico |
| Dimensions (H×W×D) | 5.1 × 3 × 3 in |
| Weight | 1.63 lbs |
Information About 3VA4160-6ED34-0AA0
The 3VA4160-6ED34-0AA0 is part of Siemens’ 3VA4 Series, known for its advanced thermal magnetic technology and flexible system integration. Built for demanding low-voltage power distribution environments, it provides both long-time overload and instantaneous short-circuit protection. Its bolt-on design and 3-pole configuration make it compatible with a wide range of electrical panels and industrial control systems. With a compact footprint and UL/CSA certification, the breaker ensures high performance, durability, and compliance with global standards.
Key Features:
- High Interrupting Capacity: Rated for 65kA at 480V to ensure protection in high-fault environments.
- Thermal Magnetic Protection: Provides long-time overload and instantaneous short-circuit protection.
- Compact 3VA41 Frame: Saves space while maintaining high electrical performance.
- Wide Voltage Range: Operates up to 600VAC for industrial and commercial applications.
- Bolt-On Connection: Ensures secure and stable mounting with reliable current transfer.
- UL and CSA Certified: Meets North American safety and performance standards.
- Temperature Resilience: Performs efficiently between -25°C and +70°C.
- Versatile Wire Compatibility: Supports 8 to 3/0 AWG copper or aluminum conductors.
The 3VA4160-6ED34-0AA0 delivers the reliability and precision required for modern low-voltage power protection systems.
