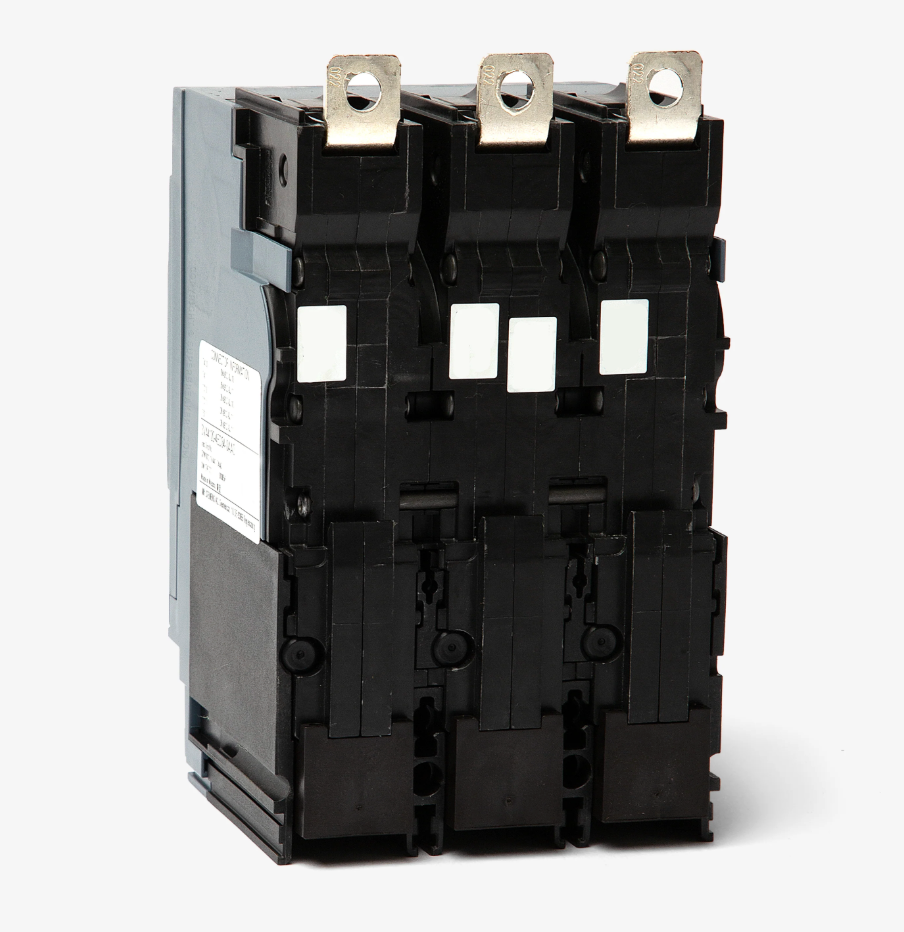

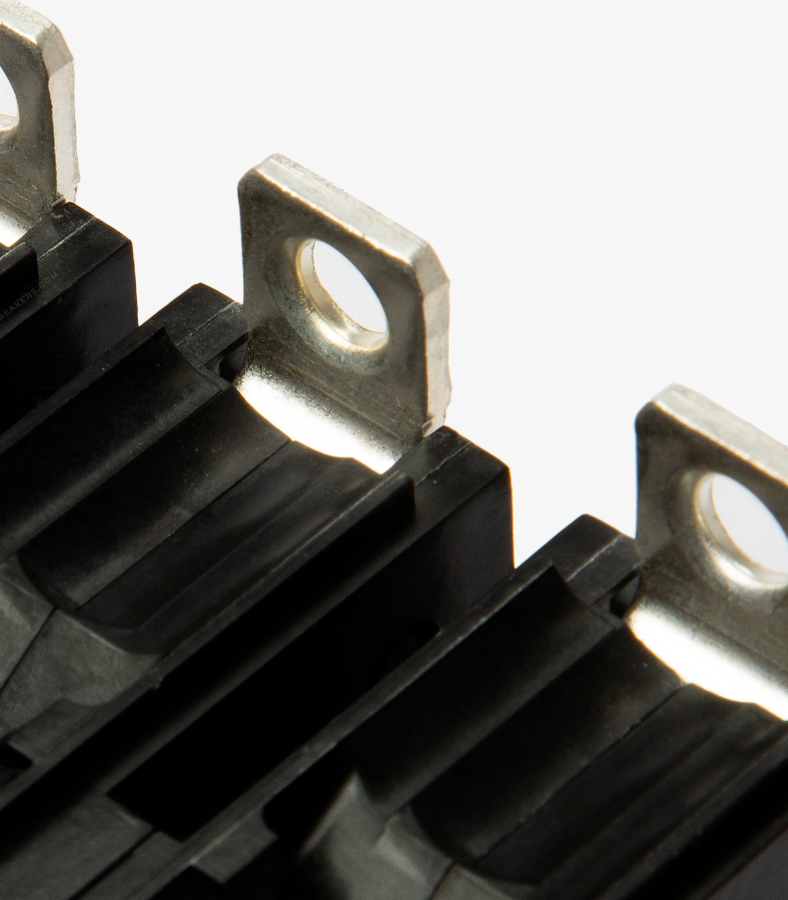

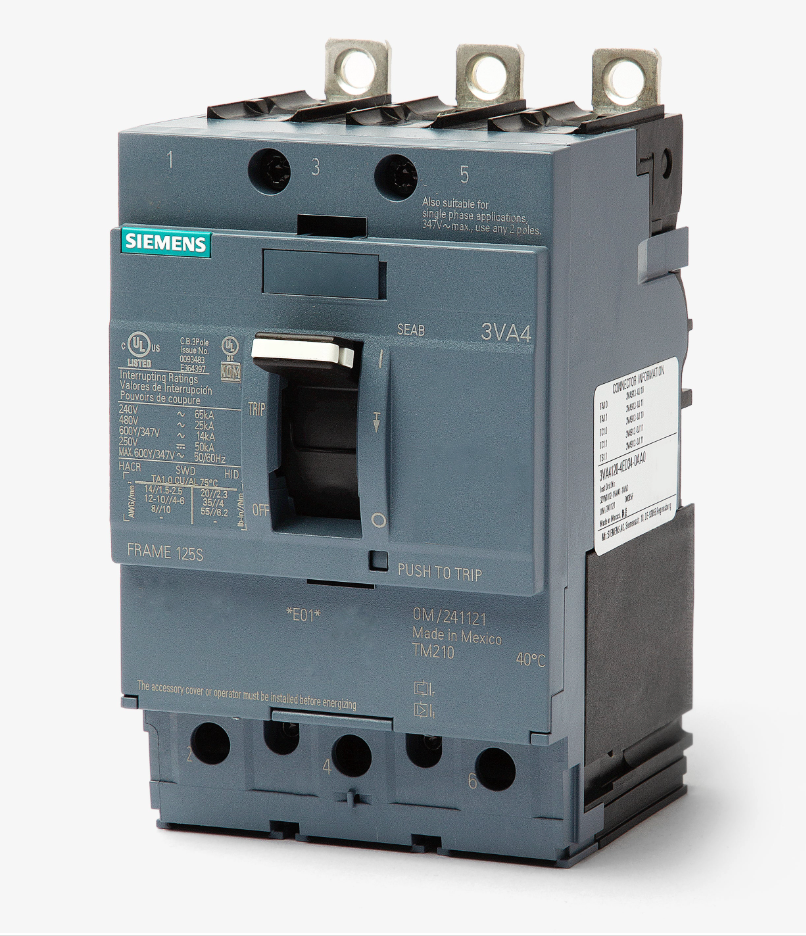

3VA4170-4ED34-0AA0 | Siemens 3VA4 70A 3-Pole 480V Molded Case Circuit Breaker
- Regular price
- $429.00
- Sale price
- $429.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 3VA4170-4ED34-0AA0
Description
The Siemens 3VA4170-4ED34-0AA0 is a 3-pole molded case circuit breaker designed to provide reliable protection for electrical circuits up to 70 amps and 480 volts. It features a robust thermal magnetic trip mechanism and a 25kA interrupting rating at 480V, ensuring safe operation under overload and short-circuit conditions. This breaker is engineered for industrial and commercial distribution systems requiring dependable circuit interruption performance.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Circuit Breaker |
| Part Number | 3VA4170-4ED34-0AA0 |
| Subcategory | Molded Case |
| Series | 3VA4 |
| Poles | 3 |
| Rated Current | 70A |
| Rated Voltage | 600V AC (480V operational) |
| Interrupting Capacity | 25kA @ 480V |
| Trip Unit Type | Thermal Magnetic (LI – Long-Time and Instantaneous) |
| Connection Type | Bolt-On |
| Terminal Type | Load Lug |
| Frame Size | 125A |
| Phase | 3-Phase |
| Temperature Range | -25°C to +70°C (-13°F to +158°F) |
| Standards | UL Listed |
| Country of Origin | Mexico |
| Dimensions (H × W × D) | 5.315 × 6.299 × 3.465 in |
| Weight | 2 lb |
Information About 3VA4170-4ED34-0AA0
The 3VA4170-4ED34-0AA0 is part of Siemens’ 3VA4 series of molded case circuit breakers, known for high performance, compact size, and modular design. It is built for three-phase applications with a bolt-on connection system and load-side lug terminals, ensuring secure installation and reliable electrical contact. The breaker provides LI (Long-Time and Instantaneous) protection characteristics for precise current management. Designed to meet UL standards, it supports operation within a wide temperature range and ensures compatibility with standard 600V electrical systems.
Key Features:
- Rated Current: 70A continuous current capacity ensures consistent protection for medium-load applications.
- Voltage Rating: Operates up to 480V AC with a maximum system voltage of 600V.
- Interrupting Capacity: 25kA@480V for effective fault interruption in demanding environments.
- Trip Unit: Thermal magnetic mechanism provides reliable long-time and instantaneous trip functions.
- Connection Type: Bolt-on mounting with load-side lug terminal for secure and straightforward installation.
- Frame Size: Compact 125A frame for space-efficient integration into electrical panels.
- Operating Temperature: Reliable performance from -25°C to +70°C (-13°F to +158°F).
- Compliance: UL Listed for verified safety and quality assurance.
The 3VA4170-4ED34-0AA0 delivers the reliability and precision required for safe electrical protection in commercial and industrial power distribution systems.
