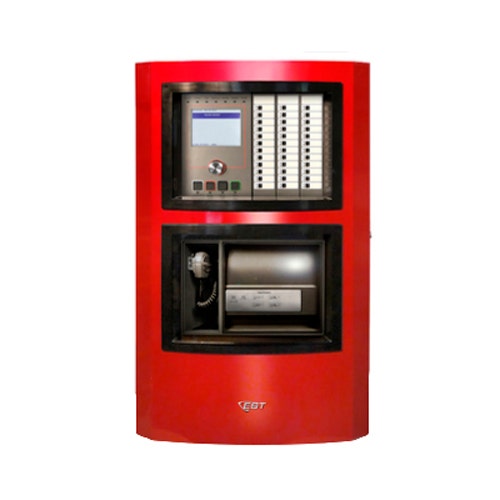

3X-SFS1R | Edwards EST3X Intelligent Addressable Fire Alarm Control Panel, 10A, Red
- Regular price
- $3,082.00
- Sale price
- $3,082.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: 3X-SFS1R
Description
The Edwards EST3X 3X-SFS1R is an intelligent addressable fire alarm control panel designed for mid-to-large scale applications. It combines a CPU, user interface, and a universal 10A power supply with support for one loop (expandable to two). Engineered for high-capacity performance, this panel provides reliable fire detection, event management, and system expansion in complex life safety environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Edwards (EST), Carrier |
| Category | Fire and Life Safety |
| Part Number | 3X-SFS1R |
| Subcategory | Control Panels |
| Series | EST3X Life Safety Control System |
| Type | Intelligent Addressable Control Panel |
| Style | Addressable |
| Color | Red |
| Display | 24-line × 40-character backlit LCD |
| Control Interface | SpeedTouch™ rotary navigation |
| Notification Circuits | Four Class B, 3A each |
| Loop Capacity | One loop, expandable to two |
| Device Capacity | Supports up to 1,500 Signature Series devices |
| Networking | Up to 64 nodes via copper or fiber |
| Power Supply | 10A, universal 94–264 VAC input |
| Battery Charger | Supports up to 65Ah |
| Event Log | 1,100 entries |
| Expansion Slots | Three option card slots |
| Optional Audio | Eight-channel digital audio integration |
| Certifications | UL2572, UL864 UUKL, UL864 releasing applications |
| Seismic Rating | OSHPD pre-approved, Importance Factor 1.5 |
| Dimensions | 21.72 × 4.82 × 35.47 in (panel) |
| Weight | 16 lbs (panel), 75 lbs (shipping) |
Information About 3X-SFS1R
The 3X-SFS1R is part of the EST3X Series by Edwards, offering modular fire and life safety control tailored to diverse building needs. Built with advanced microprocessors, the panel supports up to 1,500 Signature Series devices and networking of up to 64 nodes. It features three expansion slots, integrated notification circuits, and compatibility with R-Series annunciators for extended monitoring. Designed with patented Voltage Boost technology and a SpeedTouch rotary interface, the 3X-SFS1R ensures stable operation, intuitive control, and efficient installation in demanding environments.
Key Features:
- Integrated CPU and Interface: Combines control, monitoring, and programming in one system panel.
- Expandable Loops: Includes one intelligent loop, expandable to two with optional card.
- Universal Power Supply: 10A rated, supporting 94–264 VAC with 65Ah battery charging.
- Large LCD Display: 24-line × 40-character backlit screen with multi-message capability.
- Patented Voltage Boost™: Provides stable circuit voltage even under low battery conditions.
- Notification Circuits: Four Class B NACs at 3A each for versatile alarm output.
- Advanced Networking: Supports up to 64 nodes over copper or fiber.
- Seismic and Safety Compliance: UL2572, UL864 UUKL, and OSHPD seismic pre-approval.
The 3X-SFS1R delivers the reliability and precision required for comprehensive fire detection, life safety control, and scalable system integration.
