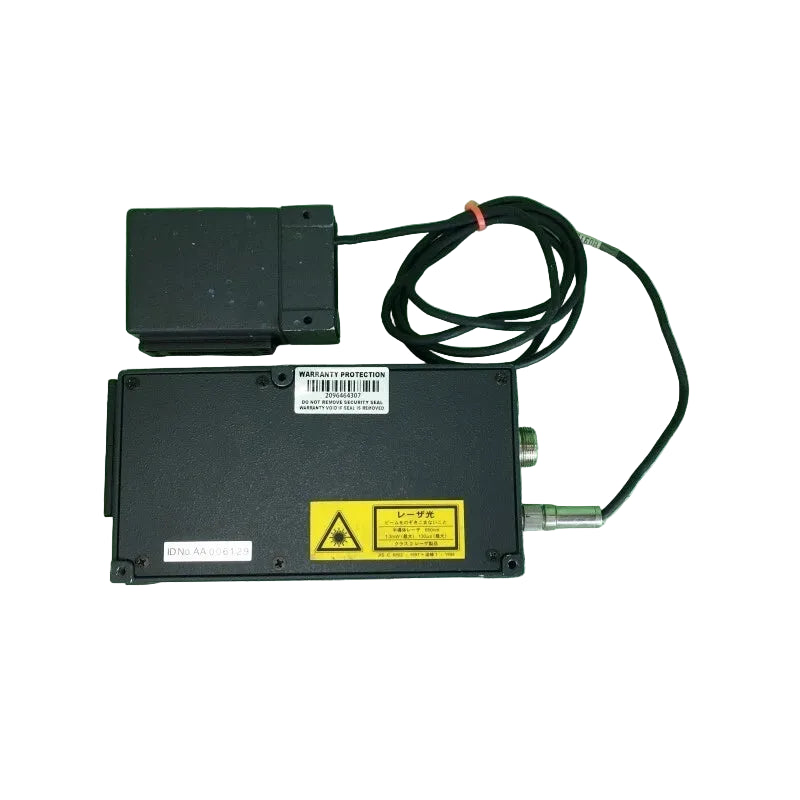

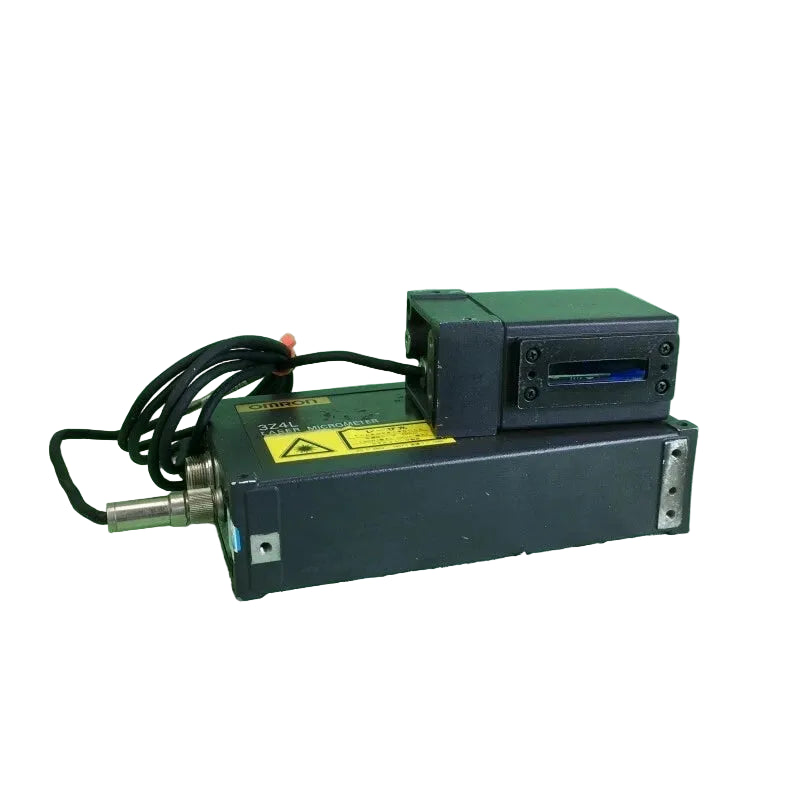

3Z4L-S503RV2 | Omron Laser Scan Micrometer
- Regular price
- $2,033.00
- Sale price
- $2,033.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 3Z4L-S503RV2
Description
The 3Z4L‑S503RV2 is a high-precision, non-contact laser scan micrometer from Omron's 3Z4L series, engineered for ultra-fine dimensional measurement in automated inspection settings.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Omron |
| Category |
Laser Measurement Systems
|
| Part Number | 3Z4L-S503RV2 |
| Subcategory | Laser Scan Micrometer |
| Weight | 2.5 kgs |
Information About 3Z4L-S503RV2
The 3Z4L-S503RV2 is a high-precision laser scan micrometer sensor from Omron’s 3Z4L series, designed for non-contact dimensional measurement in industrial inspection systems. Utilizing a laser scanning method, it enables ultra-accurate measurement of object widths and diameters with high speed and repeatability. With a compact and durable design, the 3Z4L-S503RV2 is ideal for dynamic production environments where precise quality control is essential.
Key Features:
- Laser Scan Micrometer Sensor: Operates as the emission (sensor) head in Omron’s 3Z4L laser scan micrometer systems for non-contact dimensional measurement.
- Measurement Range 0.3–30 mm: Accurately measures object widths or diameters within this range using high-speed laser scanning.
- High-Speed Measurement: Performs up to 3,200 measurements per second, enabling real-time monitoring on fast-moving production lines.
- Ultra-High Accuracy: Offers linearity of ±0.01% full scale and repeatability as fine as ±0.05 µm, suitable for precision inspection tasks.
- Non-Contact Detection: Capable of measuring delicate, hot, transparent, or reflective objects without physical contact.
- Compact Sensor Head: Robust and space-efficient design allows integration into automated systems with minimal footprint.
- IP Rated Construction: Industrial-grade housing designed for durability in harsh factory environments.
- Controller Compatibility: Pairs with Omron 3Z4L controllers such as C5000V2/V3 series to form a complete laser micrometer system.
- Legacy System Support: Serves as a replacement sensor for maintaining existing 3Z4L V2 systems; supported by modern V3 controllers for ongoing usability.
The 3Z4L-S503RV2 provides fast, contact-free precision measurement in demanding industrial environments. Its high-speed, high-accuracy performance makes it ideal for inline inspection of transparent, reflective, or fragile materials, supporting reliable quality control and process optimization in automated production lines.
