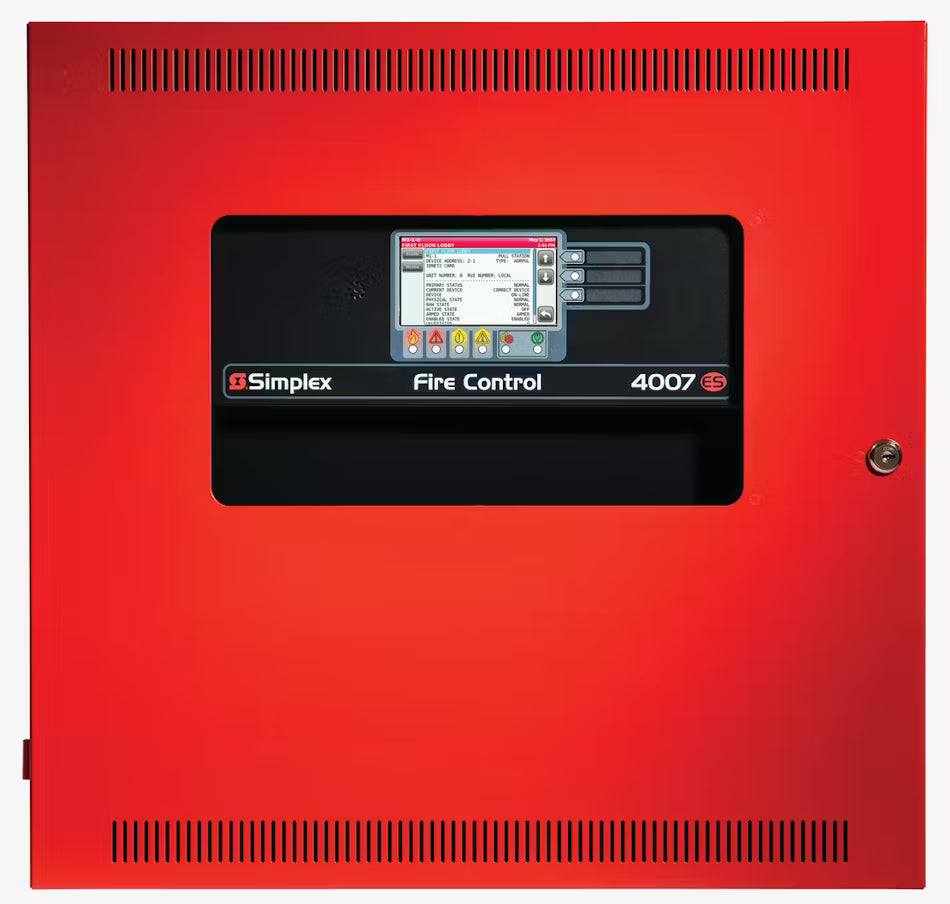

4007ES | Simplex Fire Detection and Control Panel, Touchscreen, 250 Points
- Regular price
- $1,095.00
- Sale price
- $1,095.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 4007ES
Description
The Simplex 4007ES is a compact, fully featured fire detection and control panel designed for small to mid-sized facilities. Supporting up to 250 addressable points and expandable across 8–32 conventional zones, it combines advanced suppression-release logic with a user-friendly 4.3″ color touchscreen display.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Simplex |
| Category | Fire Alarm Systems |
| Part Number | 4007ES |
| Subcategory | Fire Alarm Control Panels |
| Series | 4007ES Series |
| Addressable Capacity | Up to 250 points |
| Conventional Zones | Expandable 8–32 zones |
| Display | 4.3″ color touchscreen |
| Communication | IDNet 2 addressable communications, networking with other Simplex panels/workstations |
| Suppression Logic | Built-in deluge, preaction, and suppression-release functions |
| Relays | Alarm, supervisory, and trouble relays |
| IDC/NAC Options | Selectable EOL resistor values for retrofit compatibility |
| Input Voltage | 120 VAC (with internal 24 VDC battery backup) |
| Cabinet Dimensions | 26″ H × 26″ W × 11″ D (66 × 66 × 28 cm) |
| Weight | 30 lbs (13.6 kg) |
| Enclosure | Steel cabinet with locking door |
| Mounting Options | Wall mount (surface or semi-flush) |
| Compliance | UL 864, NFPA 72 compliant |
Information About 4007ES
The 4007ES from Simplex is a versatile fire alarm control panel designed to serve the needs of small to medium-sized facilities such as schools, office buildings, and retail spaces. It integrates both conventional initiating device circuits (IDCs) and addressable IDNet 2 technology, providing flexibility for new construction and retrofit installations. The intuitive 4.3″ color touchscreen enables operators to handle system responses, review events, and perform maintenance tasks with ease, while password protection ensures controlled access. With built-in suppression-release logic for specialized fire protection systems, robust networking capability, and selectable IDC/NAC compatibility, the 4007ES delivers reliability and adaptability in a compact form factor.
Key Features:
- Touchscreen Display: 4.3″ full-color interface simplifies programming, event recall, and troubleshooting.
- Addressable and Conventional Support: Handles up to 250 addressable points and 8–32 conventional zones.
- Built-in Suppression Control: Provides logic and timers for deluge, preaction, and other suppression-release systems.
- Integrated Networking: Connects with other Simplex panels and graphical workstations for scalable systems.
- Retrofit Flexibility: Selectable IDC and NAC resistor values support integration with existing wiring.
- Dedicated Relays: Includes alarm, supervisory, and trouble relays for external system interfacing.
- Secure User Access: Password-controlled programming limits unauthorized operation.
- Durable Enclosure: Steel cabinet design with locking door ensures long-lasting protection.
- Compact Design: Fits advanced fire detection capabilities into a 26″ × 26″ × 11″ cabinet.
- UL and NFPA Compliant: Meets stringent industry standards for fire detection and life safety.
The 4007ES delivers the reliability and precision required for small to mid-sized installations needing addressable, conventional, and suppression-ready fire control.
