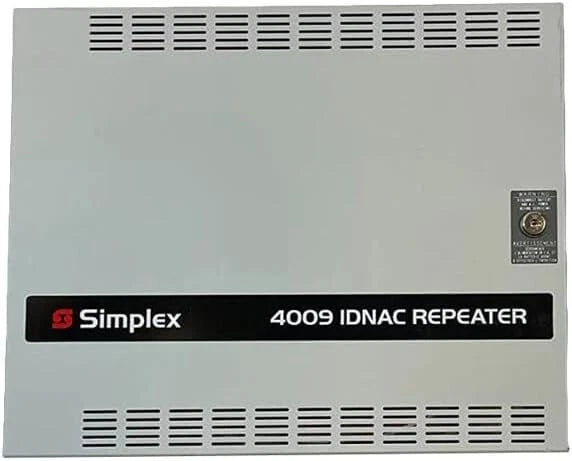

4009-9601 | Simplex IDNAC Repeater 3A Power Expansion Module with Metal Cabinet
- Regular price
- $827.00
- Sale price
- $827.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: 4009-9601
Description
The Simplex 4009-9601 IDNAC Repeater is a power and communication expansion unit for TrueAlert and TrueAlert ES addressable notification systems. It provides regulated 29 VDC output and a 3 A SLC channel to extend wiring distance, load capacity, and overall system efficiency in Simplex IDNAC installations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Simplex |
| Category | Controls & Indicators |
| Part Number | 4009-9601 |
| Subcategory | Signal Conditioner/Transmitter |
| Type | IDNAC Repeater |
| Compatible Systems | Simplex 4100ES, 4007ES IDNAC systems |
| Output Current | 3 A (IDNAC SLC output) |
| Auxiliary Power | 24 VDC, 200 mA |
| Input Power | 120 VAC or 220–240 VAC, 50/60 Hz (auto-select) |
| Output Voltage | Regulated 29 VDC during AC and battery operation |
| Communication | IDNAC signaling line circuit (SLC) |
| Circuit Type | Class A (with 4009-9814) or Class B with 4 T-taps |
| Battery Charger | Built-in, with selectable AC fail disconnect |
| Repeater Capacity | Extends supervisory capacity by 139 unit loads or 3 A |
| Connections Supported | One in series or up to five in parallel |
| Compatible Devices | TrueAlert and TrueAlert ES addressable notification appliances |
| Indicators | Local LED status indicators for diagnostics |
| Enclosure | Metal cabinet (surface or semi-flush mount) |
| Compliance | UL Listed, NFPA 72 compliant |
| Dimensions | Approx. 16" H × 14" W × 4.5" D |
| Weight | 16.0 lbs (approx.) |
Information About 4009-9601
The 4009-9601 is part of the Simplex 4009 IDNAC Repeater Series, engineered to extend the range and capacity of IDNAC signaling line circuits (SLCs) used in 4100ES and 4007ES fire alarm control systems. It reproduces the incoming IDNAC signal with a regulated power output, maintaining consistent voltage during both AC operation and battery backup. The unit supports Class A or Class B connections and provides up to 3 A of output current with an additional 200 mA auxiliary power output. Housed in a durable metal cabinet, the repeater includes an onboard charger and selectable AC fail battery disconnect, ensuring dependable performance in critical life safety applications.
Key Features:
- High-Capacity IDNAC Output: Provides one 3 A SLC output to power and control additional notification appliances.
- Voltage Regulation: Maintains a stable 29 VDC output under both AC and battery operation for consistent appliance performance.
- Extended Wiring Distance: Allows longer cable runs or smaller wire gauge for cost-efficient installation.
- Auxiliary Power Supply: Includes a 200 mA auxiliary 24 VDC output for accessories or control modules.
- Battery Charger Included: Integrated charging circuit with selectable low AC battery disconnect.
- Class A/B Compatibility: Supports Class A loop operation (with 4009-9814 adapter) or Class B with up to four T-tapped branches.
- Parallel or Series Connection: Up to five repeaters can be connected in parallel or one in series for extended network reach.
- Auto-Selectable Input Power: Operates on 120 VAC or 220–240 VAC, 50/60 Hz without manual configuration.
- System Supervision: Communicates repeater status back to the control panel for diagnostics and monitoring.
- TrueAlert/TrueAlert ES Support: Fully compatible with addressable notification appliances and accessories.
- UL Listed Design: Meets fire alarm system reliability and performance standards for life safety applications.
The 4009-9601 delivers the reliable power, control, and supervision required for large-scale notification system expansion in Simplex fire alarm networks.
