4010-9402 | Simplex 4010ES Basic Control Unit with LCD Display and IDNet2 Communication
- Regular price
- $3,805.00
- Sale price
- $3,805.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: 4010-9402
Description

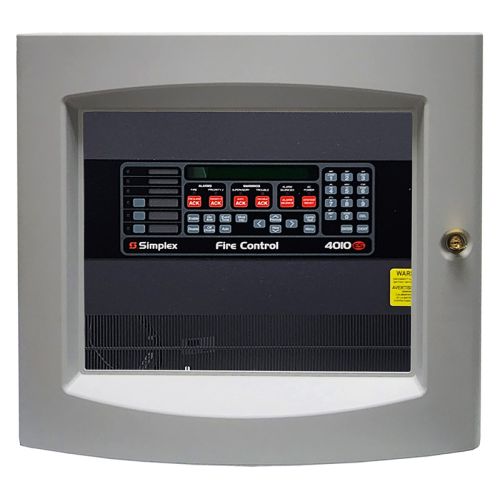

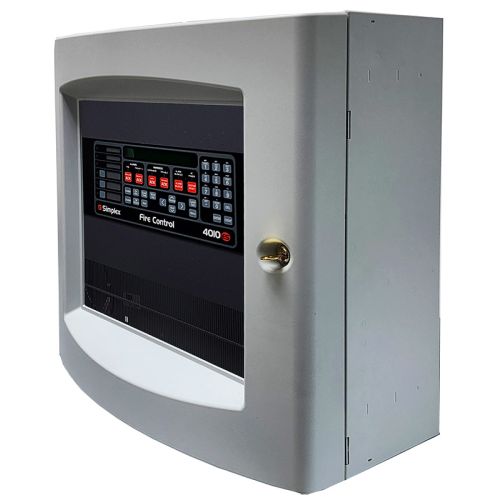

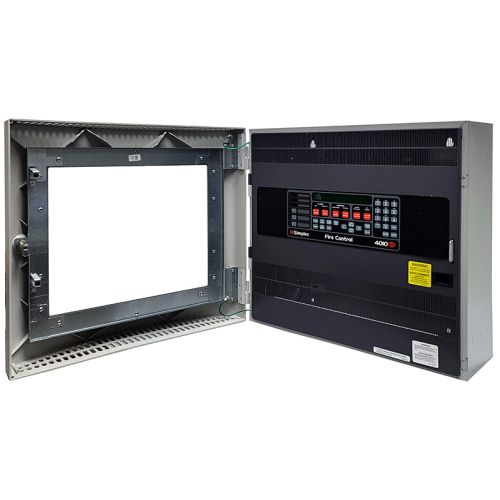

The Simplex 4010-9402 Basic Control Unit (Platinum) is designed for use with the Simplex 4010ES Addressable Fire Alarm Control Panels (FACPs). It provides a 2x40 LCD operator interface, dual-loop IDNet2 communication, and Class A or Class B operation. This unit supports up to 250 addressable IDNet points, ensuring reliable monitoring and control for mid-range fire alarm applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Simplex |
| Category | Fire Alarm Systems |
| Part Number | 4010-9402 |
| Subcategory | Control Units |
| Manufacturer | Johnson Controls |
| Series | Simplex 4010ES |
| Type | Addressable Control Panel |
| Color | Platinum |
| Display | 2x40 LCD operator interface |
| Communication | Dual IDNet2 isolated channels |
| Loop Capacity | Supports up to 250 IDNet points |
| Power Supply | 8 A with 2 A auxiliary output |
| Battery Charger | Supports up to 110 Ah (UL) or 50 Ah (ULC) batteries |
| Notification Circuits | 4 on-board Class A/B, 3 A each |
| Relay Output | One programmable auxiliary relay, 2 A @ 32 VDC |
| Annunciation | 48 LED control unit mount (40 red, 8 yellow) |
| Connectivity | Onboard Ethernet port |
| Memory | Compact flash for configuration storage |
| Production Status | Active |
| Unit of Measurement | Each (EA) |
| Weight | 16 lbs (unit only) / 36.3 lbs (with enclosure) |
Information About 4010-9402
The 4010-9402 is part of the Simplex 4010ES Series, a line of addressable fire detection and control units engineered for flexible installation and service efficiency. Built with an onboard Ethernet port, the system enables fast configuration access and external communication. Its compact flash memory provides secure local storage of job files, enhancing system reliability and service convenience. With expandable capacity, multiple notification appliance circuits, and annunciation options, the 4010-9402 is suited for a variety of building types requiring dependable fire protection.
Key Features:
- LCD Operator Interface: Features a 2x40 character display for clear system information and control.
- Dual IDNet2 Loops: Supports Class A or Class B operation with up to 250 addressable points.
- Ethernet Connectivity: Provides fast external communication for configuration and service access.
- Compact Flash Memory: Onboard storage secures system configuration and job files on-site.
- Integrated Power Supply: 8 A capacity with 2 A auxiliary output and battery charging support.
- Multiple NACs: Four on-board Class A or B NACs rated at 3 A each for reliable notification appliance control.
- Annunciation Options: Supports remote annunciator modules and up to 48 on-unit LEDs.
- Scalable System Capacity: Expandable for larger installations with thousands of addressable points.
The 4010-9402 delivers the reliability and precision required for addressable fire alarm control in mid-range building protection systems.
