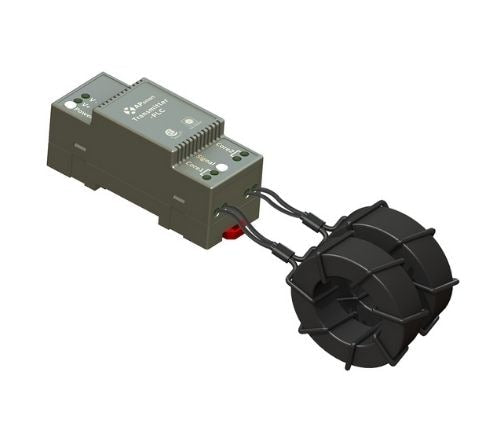

406000 | APsystems APsmart Dual Core Transmitter-PLC
- Regular price
- $179.00
- Sale price
- $179.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 406000
Description
The APsystems 406000 APsmart Transmitter-PLC is a dual-core rapid shutdown signaling device designed for photovoltaic (PV) systems. It works in conjunction with RSD-S-PLC units to ensure NEC 2017 (690.12) compliance by enabling module-level shutdown when required. This version does not include a power supply and supports SunSpec-certified signaling.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | APsystems |
| Category |
HVAC
|
| Part Number | 406000 |
| Subcategory | HVAC Control System Board |
| Signal Type | Power Line Communication (PLC) |
| Shutdown Type | Rapid PV module shutdown (paired with RSD-S-PLC) |
| Core Type | Dual-core (29 mm ID) |
| Power Supply | Not included (external 85–264VAC or 180–550VAC optional) |
| SunSpec Certification | Yes |
| NEC Compliance | NEC 2017 (690.12) |
| Operation Mode | Signal present = normal operation, no signal = shutdown |
| Form Factor | Plug-in PCBA module |
| Compatibility | RSD-S-PLC modules |
| Use Case | Residential and commercial PV systems |
| Protection Behavior | Disables signal during AC power loss |
| Communication Standard | SunSpec Rapid Shutdown Signal |
| Weight | Not specified |
Information About 406000
The 406000 is part of APsystems’ Rapid Shutdown System (RSS), delivering power line communication (PLC) signals to compatible RSD-S-PLC shutdown units. Engineered for grid-tied PV installations, the Transmitter-PLC helps maintain normal operation during grid presence and triggers rapid shutdown when de-energized. It features a dual-core design for robust signal transmission and offers compatibility with both residential and commercial power systems via optional external power supplies. The unit is SunSpec-certified and ensures streamlined compliance with 2017 NEC 690.12 requirements.
Key Features:
- Dual Core Design: Enhances signal strength and stability for extended system reliability.
- SunSpec Certified: Supports standardized communication protocols for rapid PV module shutdown.
- NEC 690.12 Compliant: Meets 2017 National Electrical Code specifications for safety.
- No Power Supply Included: Can be paired with optional 85–264VAC (residential) or 180–550VAC (commercial) supply.
- Failsafe Operation: Signal stops automatically upon AC power loss, triggering shutdown.
- Heartbeat Signal Functionality: Maintains PV module activity while active; shuts down when signal is lost.
- Compact Construction: Supplied as a plug-in PCBA with 29 mm ID ferrite core rings.
- System Integration: Designed for use with APsmart RSD-S-PLC units in PV installations.
The 406000 delivers the reliability and compliance required for safe, code-adherent PV system operation.
