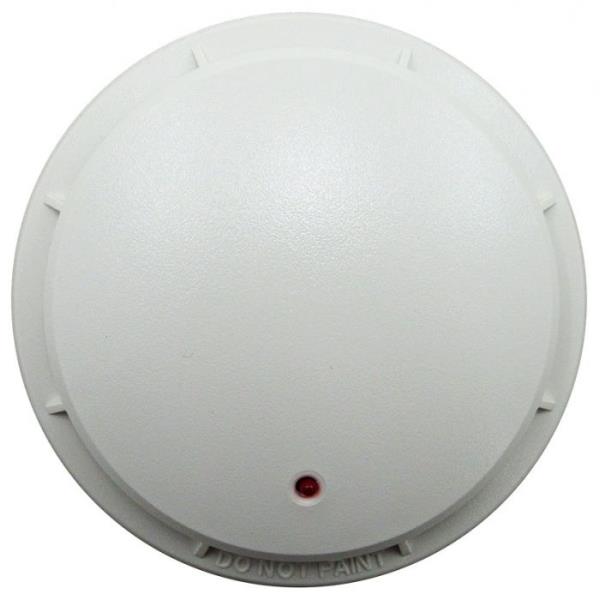

4098-9710 | Simplex TrueAlarm Addressable Photoelectric Smoke Sensor
- Regular price
- $559.00
- Sale price
- $559.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: 4098-9710
Description
The Simplex 4098-9710 TrueAlarm Photoelectric Smoke Sensor is an addressable analog detection device used in Simplex fire alarm systems for early smoke detection. It provides precise, intelligent sensing and fast response, integrating directly with 4100U, 4100ES, and compatible addressable control panels.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Simplex |
| Category | Fire Safety |
| Part Number | 4098-9710 |
| Subcategory | Fire Alarm |
| Series | TrueAlarm |
| Type | Addressable photoelectric smoke sensor |
| Compatible Panels | Simplex 4100U, 4100ES, 4010ES, and IDNet/MAPNET II systems |
| Sensing Principle | Photoelectric light scattering |
| Startup Time | 20 seconds typical |
| Voltage Range | 18–32 VDC (from control panel) |
| Supervisory Current | 300 μA typical |
| Communication Protocol | IDNet or MAPNET II |
| LED Indication | Status/alarm/trouble |
| Mounting Base | SIM-4098-9757, SIM-4098-9788 (ordered separately) |
| Environmental Compensation | Automatic drift compensation |
| Operating Temperature | 0°C to 49°C (32°F to 120°F) |
| Humidity Range | Up to 93% RH, non-condensing |
| Regulatory Compliance | UL 268, NFPA 72 |
| Dimensions | Approx. 2.3" (H) × 4.0" (Dia.) |
| Status | Discontinued by manufacturer |
| Weight | 0.35 lbs |
Information About 4098-9710
The 4098-9710 belongs to the Simplex TrueAlarm series of intelligent addressable detectors designed for reliable photoelectric smoke detection in commercial and institutional environments. The sensor communicates analog smoke chamber data to the fire alarm control panel, which processes the signal for accurate alarm decisions and environmental compensation. With a typical 20-second startup time, it ensures rapid readiness upon system power-up. The unit connects via a quick-connect base such as the 4098-9757 or 4098-9788 for ease of installation and maintenance. This model is UL-listed for use with Simplex IDNet or MAPNET II circuits and supports automatic sensitivity adjustment to match changing ambient conditions.
Key Features:
- Intelligent Photoelectric Sensing: Uses analog light-scattering technology for accurate smoke detection.
- Addressable Operation: Communicates directly with Simplex IDNet or MAPNET II signaling line circuits.
- Fast Initialization: 20-second startup time ensures quick activation after system power-up.
- Environmental Compensation: Continuously adjusts for dust accumulation and ambient changes.
- Base Compatibility: Designed for use with SIM-4098-9757 and SIM-4098-9788 quick-connect bases.
- UL Listed: Certified to meet UL 268 standards for commercial fire detection.
- LED Status Indicator: Provides visible feedback for alarm, power, and trouble conditions.
- Low Power Consumption: Operates efficiently on panel-supplied voltage.
- Automatic Device Testing: Self-diagnostic routines monitor sensor performance.
- Maintenance-Friendly: Head easily removes from base for cleaning or replacement.
The 4098-9710 delivers precise, reliable, and addressable smoke detection performance for modern Simplex TrueAlarm systems.
