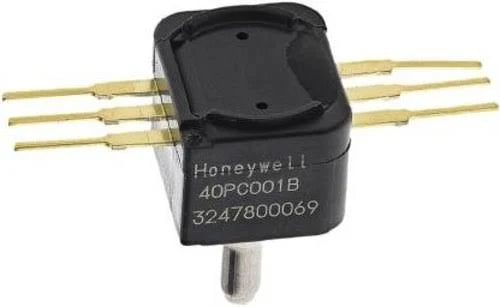

40PC001B1A | Honeywell 40PC Compound Analog Pressure Sensor ±0.97 PSI DIP

Description

The Honeywell 40PC001B1A is a board-mount compound pressure sensor designed for low-pressure measurement in precision electronic systems. It provides an amplified analog voltage output proportional to pressure changes within a ±0.97 psi range. This sensor is engineered for integration into PCB-based assemblies requiring accurate and stable pressure monitoring.

Technical Specifications

Information About 40PC001B1A

The 40PC001B1A is part of Honeywell’s 40PC Series, a line of amplified silicon pressure sensors intended for board-level applications. It features a compound pressure configuration capable of measuring both positive and negative pressures relative to atmospheric pressure. The device is housed in a 6-DIP module package with through-hole PC pin termination for secure PCB mounting. Designed for operation from a regulated 5 VDC supply, the sensor incorporates internal amplification to provide a conditioned analog voltage output suitable for direct interface with control or data acquisition systems.

Key Features:

• Compound Pressure Measurement: Measures both positive and negative pressures up to ±0.97 psi (±6.69 kPa).

• Amplified Analog Output: Provides a conditioned voltage output for simplified signal processing.

• High Accuracy Design: Delivers precise pressure sensing suitable for instrumentation applications.

• Wide Operating Temperature Range: Operates reliably from -45°C to +125°C.

• Through-Hole Mounting: 6-DIP package with PC pins for secure PCB installation.

• 5 VDC Supply Operation: Designed for use with regulated 4.75 V to 5.25 V supply.

• Barbless Axial Port: Single axial pressure port compatible with tubing connections.

The 40PC001B1A delivers the reliability and precision required for low-pressure monitoring in electronic control and instrumentation systems.
