41/0572-05 | Honeywell Precision Low Profile Load Cell
- Regular price
- $1,250.00
- Sale price
- $1,250.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 41/0572-05
Description

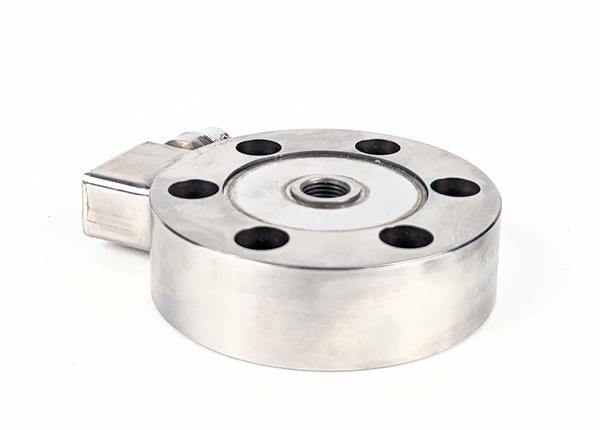

The Honeywell 41/0572-05 is a precision, low-profile "pancake" style load cell designed for high-performance force measurement applications in both tension and compression. Built with bonded foil strain gages and welded construction, it delivers exceptional accuracy and durability in harsh industrial conditions.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Honeywell |
| Category |
Sensors & Switches
|
| Part Number | 41/0572-05 |
| Subcategory | Load Cell |
| Capacity Range | 5 lb to 500,000 lb |
| Operation Mode | Tension / Compression |
| Output Signal | 3 mV/V (50–500,000 lb); optional 4–20 mA or 0–5 V |
| Accuracy |
±0.1% full scale |
| Hysteresis | ±0.08% full scale |
| Non-repeatability | ±0.03% (for 50–500,000 lb) |
| Excitation (Calibration) | 10 VDC |
| Bridge Resistance | 350 Ohm (nominal) |
| Insulation Resistance | ≥ 5000 MOhm @ 50 VDC |
| Operating Temperature | –54 °C to 121 °C (–65 °F to 250 °F) |
| Temperature Effect (Zero/Span) | 0.002% FS/°F |
| Calibration | 5-point (0%, 50%, 100%) in tension |
| Housing | Welded, hermetically sealed |
| Certifications | CE, CSA, ATEX |
| Weight | 10.00 lbs (4.54 kg) |
Information About 41/0572-05
The 41/0572-05 is part of Honeywell’s Model 41 load cell series, supporting capacities from 5 lb to 500,000 lb, with this variant designed to measure in the lower to mid-range. It features a double diaphragm design to minimize side-loading and off-center errors, and comes with a threaded center hole for universal installation. With ±0.1% accuracy and standard mV/V output, this model can also be configured for 4–20 mA or 0–5 VDC output as optional signal formats. It operates in -54 to 121 °C (-65 °F to 250 °F) and is suitable for critical applications like weighing systems, extruding processes, or tube mills. Certified CE, CSA, and ATEX, it supports intrinsic safety when configured appropriately.
Key Features:
- Wide Capacity Range: Measures forces from as low as 5 lb to as high as 500,000 lb, making it versatile for both light and heavy industrial applications such as material testing, weighing systems, and load monitoring.
- High Accuracy (±0.1%): Offers precise force measurement with low error margins in linearity, hysteresis, and repeatability, ensuring reliability in critical control and safety applications.
- Welded Hermetically Sealed Construction: The stainless steel body and weld-sealed design protect internal components from dust, moisture, and harsh environments, ideal for long-term use in demanding field conditions.
- Threaded Through-Hole Design: A central threaded hole allows for direct mounting in tension/compression applications, improving force alignment and installation simplicity.
- Double Diaphragm Design: Minimizes side-load and off-center loading effects, enhancing measurement consistency even in non-ideal mechanical setups.
- Flexible Output Options: Standard mV/V analog output enables high-resolution signal capture, with optional 4–20 mA or 0–5 VDC output for seamless integration with industrial control systems like PLCs or DCSs.
- Certified Intrinsic Safety (Optional): When configured with the 2N option, the unit meets intrinsic safety standards for use in hazardous zones, including explosive gas environments.
The 41/0572-05 provides reliable and accurate force sensing in industrial weighing and mechanical load testing environments, even under extreme thermal and mechanical stress.
