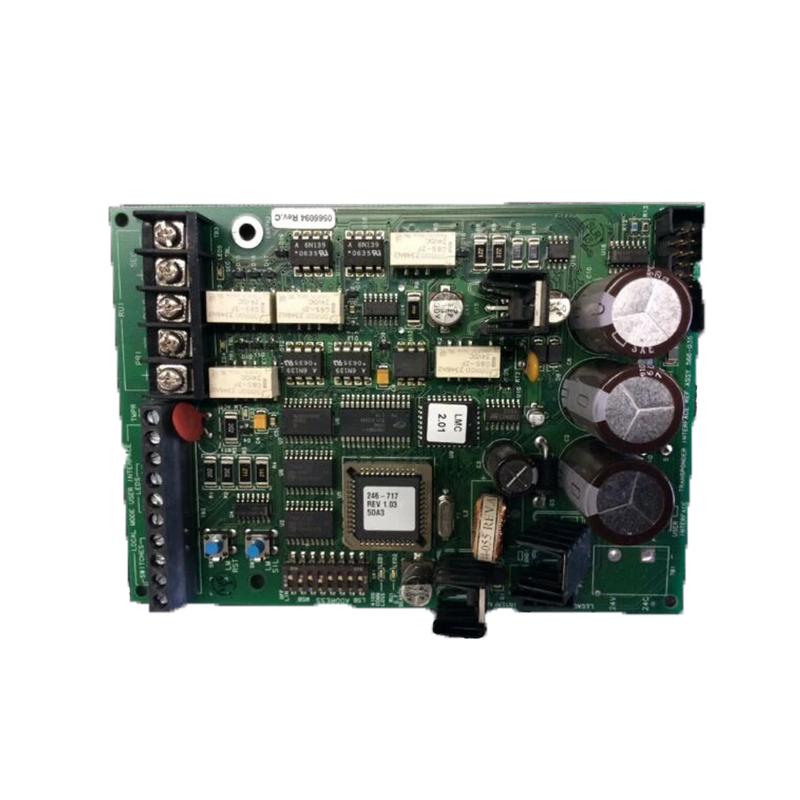

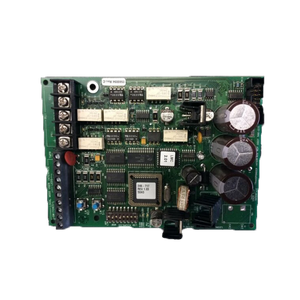

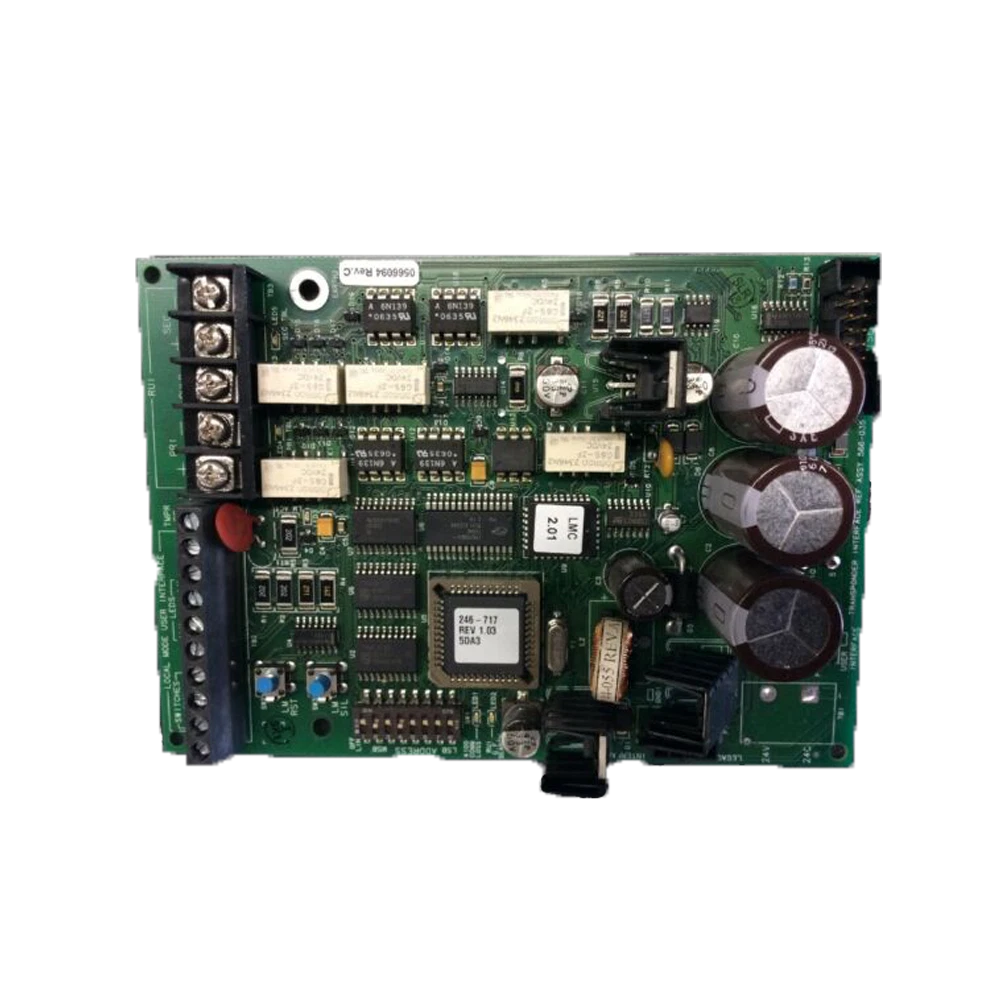

4100-0625 | Simplex 4100ES Local Mode Transponder Interface Card (TIC)
- Regular price
- $424.00
- Sale price
- $424.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: 4100-0625
Description
The Simplex 4100-0625 Local Mode Transponder Interface Card (TIC) is a dedicated control module used in 4100ES fire alarm systems to manage transponder operation in the event of communication loss with the main control panel. In local mode, it provides autonomous alarm response for connected inputs and notification circuits.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Simplex |
| Category | Panel Accessories |
| Part Number | 4100-0625 |
| Subcategory | Enclosure |
| Type | Local Mode Transponder Interface Card (TIC) |
| Compatible System | Simplex 4100ES Fire Alarm Control Panel |
| Function | Provides local alarm control during RUI communication loss |
| Communication Interface | Remote Unit Interface (RUI) |
| Mounting Location | Block A, within MINIPLEX transponder bay |
| Power Distribution | Integrated with bay power management board |
| Operation Mode | Local alarm mode (activates NACs only) |
| Notification Circuits | Controls local NAC outputs in alarm mode |
| Auxiliary Outputs | Disabled during local mode |
| Voltage Supply | 24 VDC nominal (from transponder power supply) |
| Indication | Local status via panel diagnostics |
| Compliance | UL 864, NFPA 72 |
| Operating Environment | Indoor, dry location |
| Dimensions | Approx. 10" × 6" × 1.5" |
| Weight | 1.00 lbs |
Information About 4100-0625
The 4100-0625 is part of the Simplex 4100ES system’s MINIPLEX transponder architecture. It functions as the local controller that maintains alarm response capability if RUI (Remote Unit Interface) communication with the master controller is interrupted. Installed in Block A of the transponder bay, it includes a power distribution interface and integrates with other transponder modules to maintain essential fire alarm signaling. During local operation, the card activates all connected notification appliance circuits (NACs) when an alarm input is triggered but disables auxiliary relay and control outputs for safety. This fail-safe feature ensures continued local alarm signaling and reliability in distributed fire alarm networks.
Key Features:
- Local Mode Operation: Provides autonomous alarm activation if communication with the master controller is lost.
- RUI Communication: Interfaces with 4100ES host panel via Simplex Remote Unit Interface network.
- Fail-Safe Design: Ensures alarm NACs remain active in isolation scenarios while disabling non-critical outputs.
- Transponder Integration: Installed in 4100ES MINIPLEX transponder cabinets for distributed system control.
- Power Distribution Interface: Includes bay power management and interconnection for other modules.
- Alarm Circuit Control: Activates all local alarm notification appliances in the event of an alarm signal.
- Modular Architecture: Mounts in Block A position within the transponder bay chassis.
- Status Communication: Translates internal transponder communication into standard host system format.
- UL Listed: Certified for fire alarm system control applications under UL 864.
- Reliability Assurance: Designed to maintain essential system functionality during communication failures.
The 4100-0625 ensures that 4100ES fire alarm systems retain basic alarm functions even under network failure conditions, enhancing safety and operational reliability.
