4100-1289 | Simplex LED/Switch Controller Board Expansion Module 64 LED/64 Switch
- Regular price
- $282.00
- Sale price
- $282.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: 4100-1289
Description

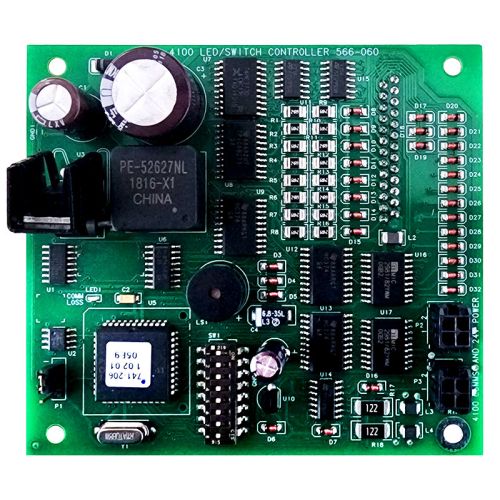

The Simplex 4100-1289 LED/Switch Controller Board is an expansion module designed to control up to 64 LEDs and 64 switches in Simplex 4100 series fire alarm control panels. This board provides clear annunciation and flexible control functions while mounting directly on the extra space of the 4100-1288 without a separate plate.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Simplex |
| Category | Controls & Indicators |
| Part Number | 4100-1289 |
| Subcategory | CPU/Control Board |
| Input Voltage | 19 to 33 VDC, supplied from control panel |
| Current, No LEDs On | 20 mA @ 24 VDC |
| Current, All LEDs On | 180 mA nominal @ 24 VDC (2.5 mA per LED) |
| Maximum Current | 212 mA @ 19 VDC (3.0 mA per LED) |
| LED Capacity | 64 LEDs controlled |
| Switch Capacity | 64 alternate-action switches |
| Mounting | Attaches to bracket of 4100-1288 |
| Module Clearance | Accepts low-profile 4100ES/4100U modules only |
| Bay Controller Limit | Max. two controllers per bay |
| Bay Slot Reference | Slots 1 & 2 or Slots 3 & 4 |
| Switch Operation | Alternate action ON/OFF with tactile raised buttons |
| Output Selection | Steady or pulsed to drive relays/lamps/LEDs |
| Labeling | Slide-in, user printed function labels |
| Weight | 1.00 lbs |
Information About 4100-1289
The 4100-1289 is a dedicated LED and switch controller board within the Simplex 4100ES/4100U fire alarm system series. It integrates seamlessly with the 4100-1288 mounting assembly to expand panel functionality by providing additional annunciation and operator control. This module enables efficient monitoring and control of site-specific functions using tactile, alternate-action switches and high-efficiency LED indicators. It is compatible with Simplex fire alarm cabinets, supports programmable input/output customization, and is optimized for reliable performance in fire safety system environments.
Key Features:
- LED Expansion Capacity: Supports control of 64 LEDs, each with 2.5 mA nominal current draw, for clear visual annunciation.
- Switch Control Functions: Provides 64 alternate-action ON/OFF switches for user interaction and system input.
- Compact Integration: Mounts directly to the extra space of the 4100-1288 without requiring an additional mounting plate.
- Flexible Input Options: 24-point I/O module selectable for different switch types and supervision levels.
- Output Customization: LEDs can be configured for steady-on or pulsed output to drive connected relays, lamps, or indicators.
- Clear Visibility: High-efficiency LEDs remain easily visible through the cabinet glass door for quick status identification.
- Programmable Functions: LED behaviors, switch inputs, and printer outputs are fully configurable through CPU customization.
- Efficient Power Use: Operates at 19–33 VDC with a maximum current of 212 mA at full LED load.
- Modular Expansion: Supports up to two controller boards per bay, offering scalable control within 4100ES/4100U panels.
- Ease of Labeling: Slide-in local labels provide precise identification of LED and switch assignments for operators.
The 4100-1289 delivers the reliability and precision required for advanced annunciation and operator control in modern fire alarm systems.
