4100-1315 | Simplex 100W Primary Audio Amplifier with 6 Class B NACs, 120VAC
- Regular price
- $1,399.00
- Sale price
- $1,399.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: 4100-1315
Description

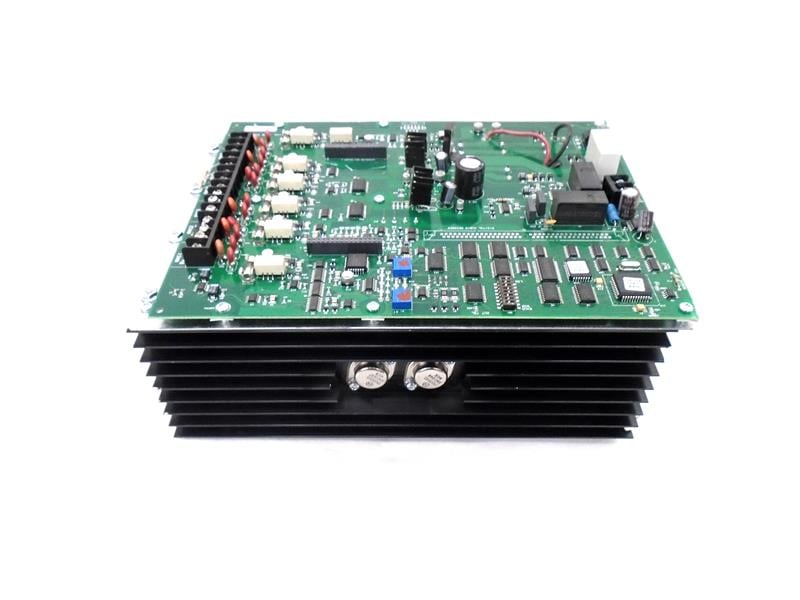

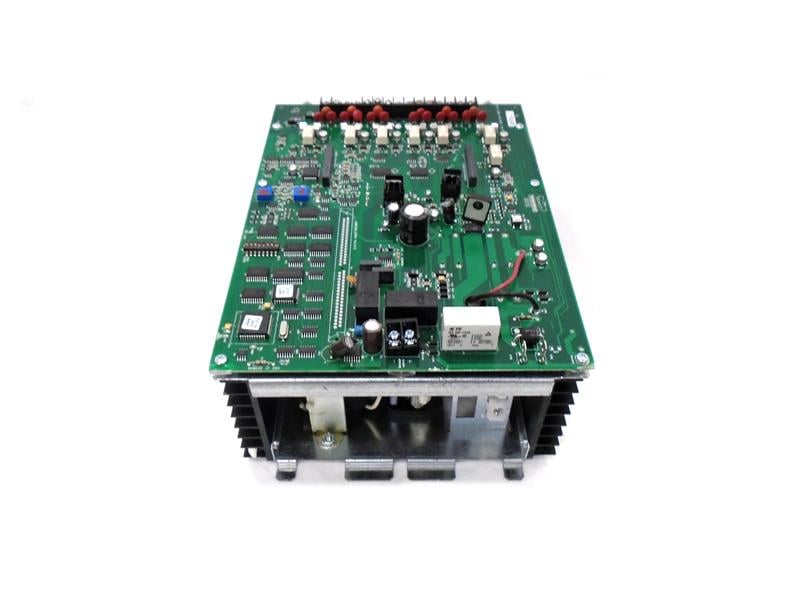

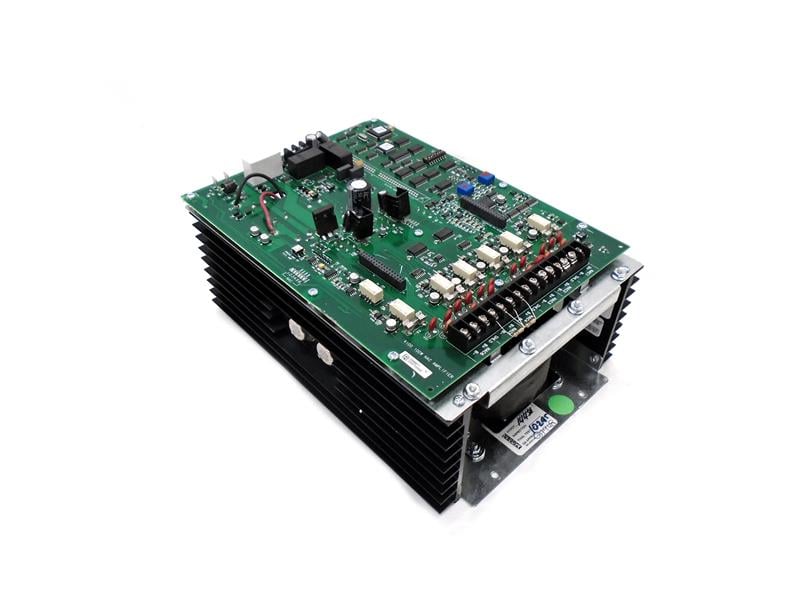

The Simplex 4100-1315 is a primary 100-watt audio amplifier designed for fire alarm and mass notification systems. It delivers high-powered, single-channel audio output with integrated supervision and multiple Class B NACs for speaker circuit distribution. Built for demanding life-safety applications, the 4100-1315 ensures clear and reliable voice and tone transmission in emergency conditions.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Simplex |
| Category | Fire Safety |
| Part Number | 4100-1315 |
| Subcategory | Fire Alarm Assembly |
| Function | Primary 100W audio amplifier with supervised NACs |
| Output Power | 100 W |
| Output Voltage | 70.7 VRMS |
| Input Power | 120 VAC, 60 Hz |
| NAC Circuits | 6 Class B, each rated at 2A |
| Expansion Bay Space | Requires 4 continuous blocks |
| Redundancy | Supports one-for-one or one-for-many backup configurations |
| Backup Power | Compatible with system battery backup |
| Supervision | Constant monitoring of amplifier performance |
| Protection | Overcurrent and short circuit protection |
| Application | Fire alarm and emergency communication audio |
| Status | Discontinued by Manufacturer |
| Weight | 12.5 lbs |
Information About 4100-1315
The 4100-1315 is part of the Simplex 4100 series of amplifiers, developed to provide dependable audio performance for large-scale fire alarm and emergency communication systems. Operating on 120 VAC, 60 Hz, the amplifier delivers a 70.7 VRMS output with 100 watts of power, capable of driving multiple speaker circuits. It features six Class B notification appliance circuits (NACs), each rated for 2A, allowing flexible speaker wiring configurations across large facilities. Designed with redundancy in mind, the unit can be paired with a backup amplifier to provide uninterrupted audio in the event of a failure, ensuring mission-critical communication is maintained. Its built-in power supply, battery backup capability, and real-time supervision functions make the 4100-1315 a robust solution for both emergency and non-emergency applications.
Key Features:
- 100-Watt Output: Provides powerful single-channel audio amplification for large facilities.
- Six Class B NACs: Each rated at 2A maximum, ensuring flexible distribution of speaker circuits.
- Integrated Power Supply: Includes its own power supply with battery backup support.
- Redundant Amplifier Capability: Can be paired with a backup amplifier for continuous operation.
- Expansion Bay Design: Occupies four continuous blocks in a 4100ES expansion bay.
- Adjustable Output Levels: Supports -12 dB and -6 dB settings for non-emergency paging.
- Supervision Features: Continuously monitors input and output levels for fault detection.
- Overcurrent Protection: Built-in protection against overloads and short circuits.
- Standard Power Input: Operates on 120 VAC, 60 Hz for compatibility with building systems.
The 4100-1315 delivers the reliability and precision required for fire alarm voice evacuation and mass notification systems.
