4100-3101 | Simplex IDNet Communication Module (250-Point)
- Regular price
- $2,832.00
- Sale price
- $2,832.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: 4100-3101
Description

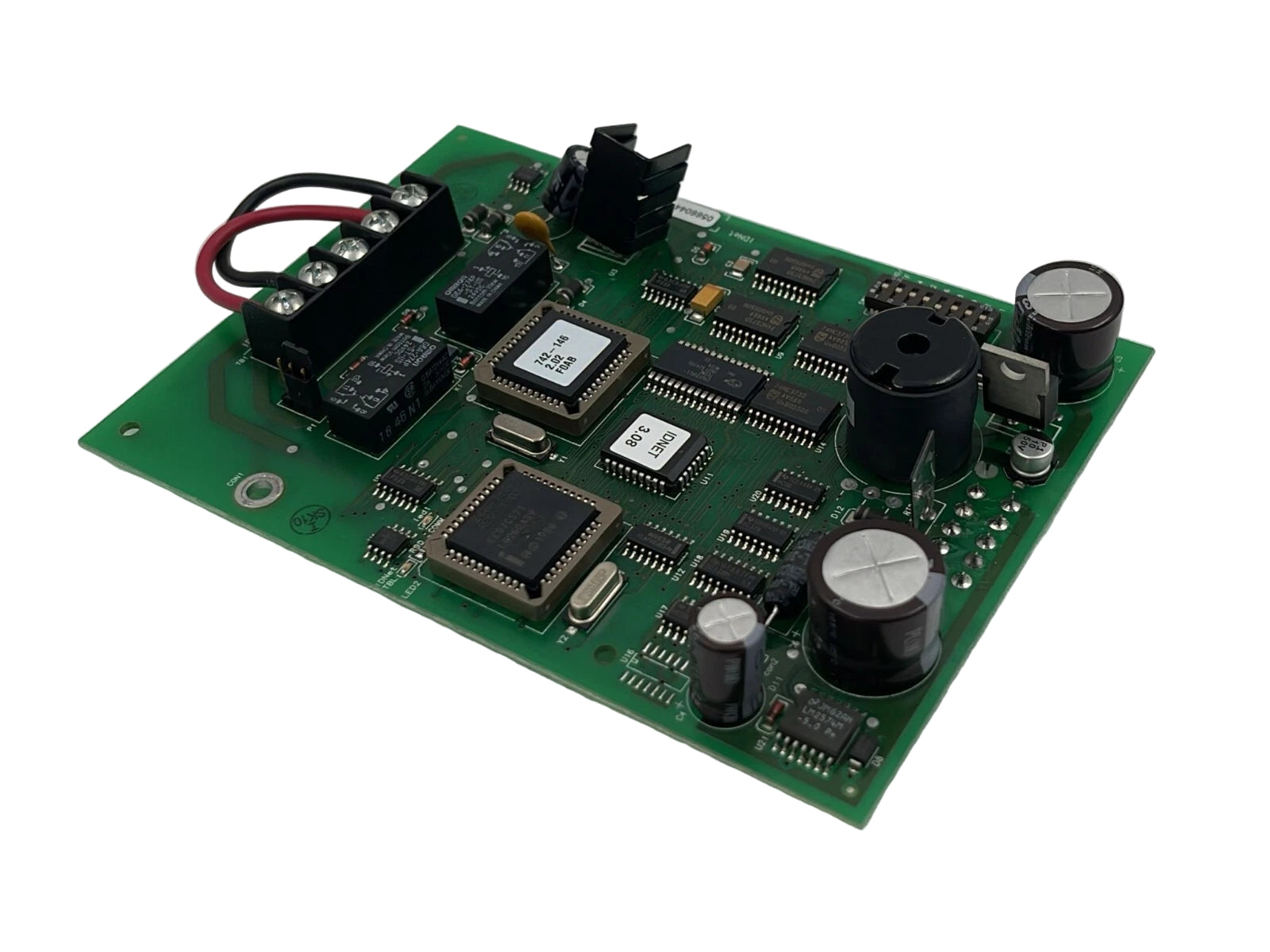

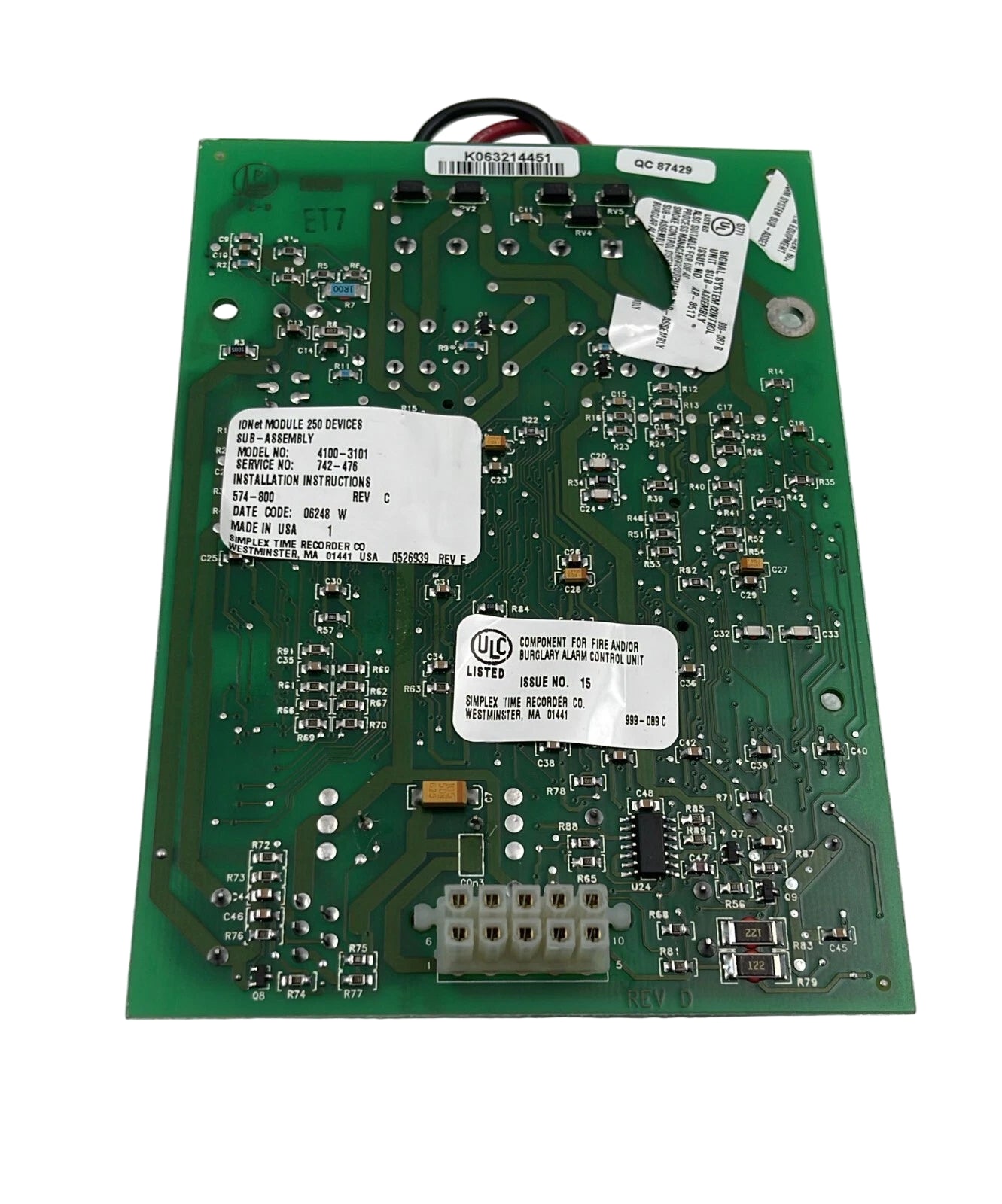

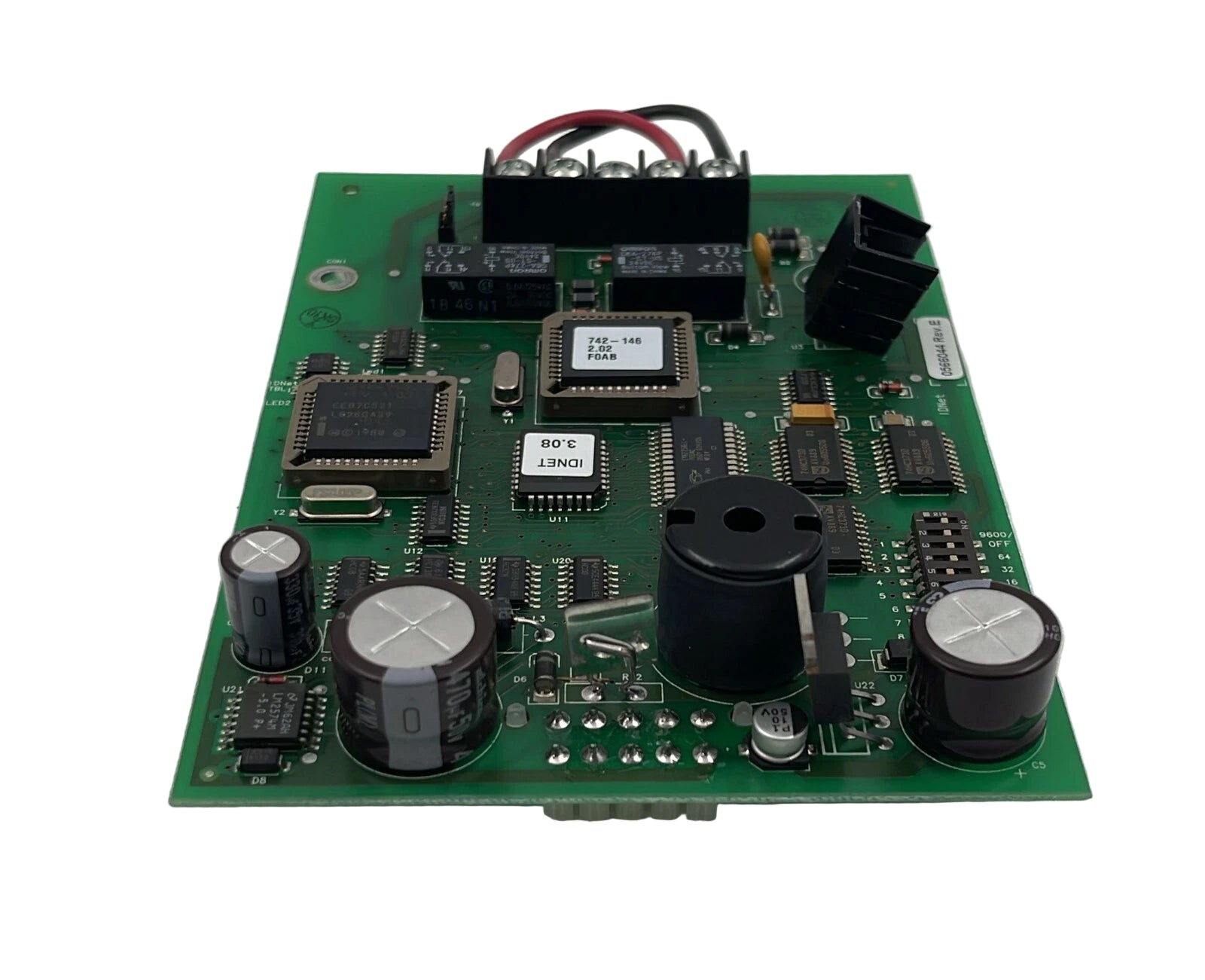

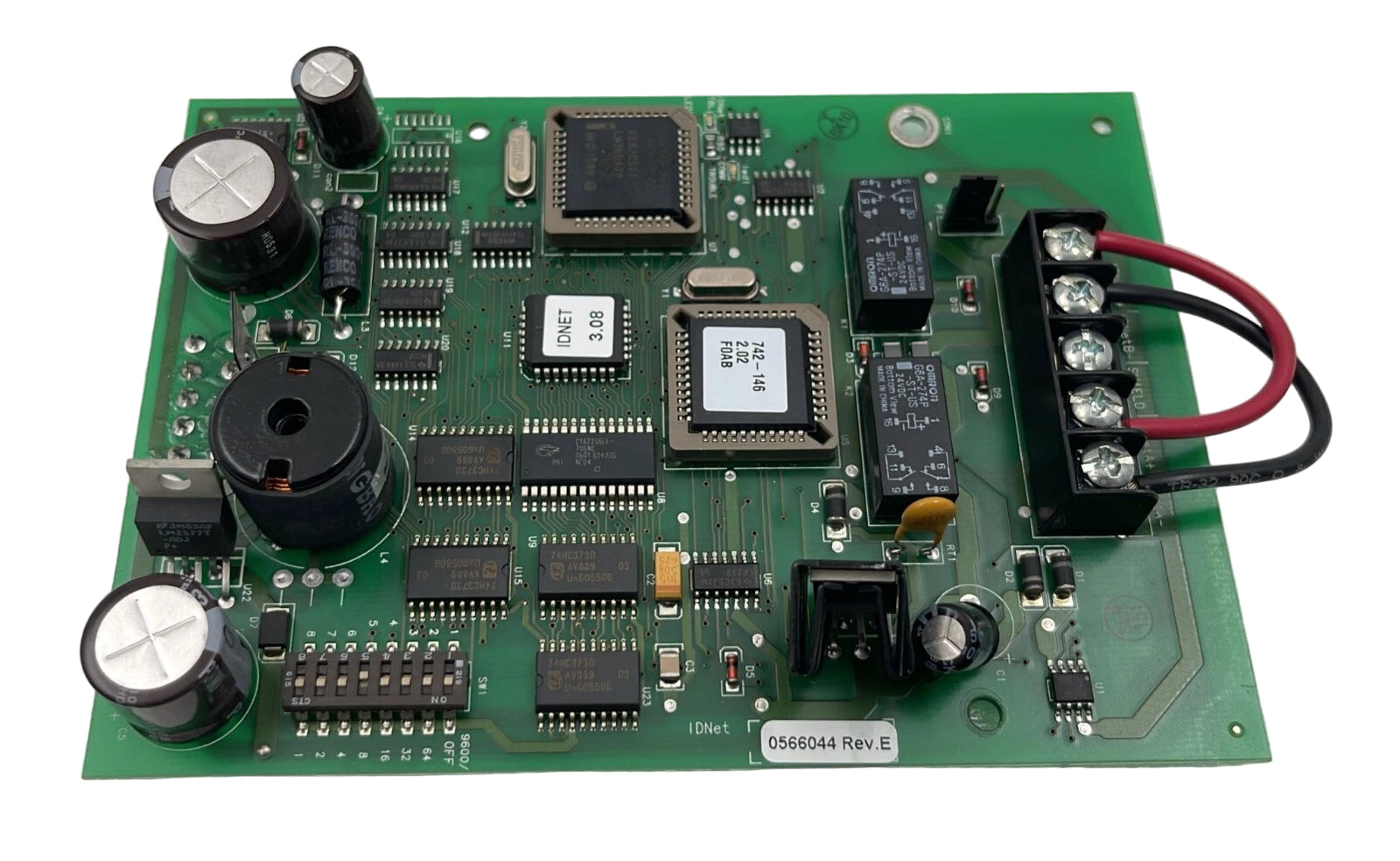

The Simplex 4100-3101 IDNet Module is an intelligent communication interface card that allows a fire alarm control panel to support up to 250 addressable IDNet devices. It provides high-speed digital signaling between the system CPU and field detection or notification devices over a single two-wire circuit.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Simplex |
| Category | PLCs/Machine Control |
| Part Number | 4100-3101 |
| Subcategory | PLC Module/Rack |
| Type | IDNet Communication Module |
| Compatible Panels | Simplex 4100U / 4100ES |
| Device Capacity | Up to 250 addressable IDNet points |
| Communication Type | IDNet two-wire signaling line circuit |
| Operating Voltage | 24 VDC supplied from the control panel |
| IDNet Loop Power | 30 VDC nominal or 36 VDC at 350 mA |
| Max. Wiring Distance | 10,000 feet (3,048 m) |
| Line Resistance | Up to 40 Ohms |
| Line Capacitance | 0.60 μF (line-to-line and shield-to-line) |
| Mounting | Plug-in card to power distribution interface |
| Dimensions | 4" × 5" circuit card |
| Certification | UL Listed, NFPA 72 compliant |
| Replacement Model | 4100-3102 |
| Status | Discontinued by manufacturer |
| Weight | 1.30 lbs |
Information About 4100-3101
The 4100-3101 is part of the Simplex 4100U and 4100ES system platform, serving as the IDNet channel interface that connects detectors, modules, and manual stations on the addressable loop. The module installs directly into the panel’s power distribution interface and communicates with field devices via IDNet signaling. With a communication range of up to 10,000 feet, it ensures stable data transmission across extensive installations. The 4100-3101 is designed for industrial-grade reliability and is UL Listed for fire alarm applications. Though discontinued, it remains a critical component for maintaining existing 4100-series systems, with the 4100-3102 serving as its functional replacement.
Key Features:
- 250-Point Capacity: Supports up to 250 addressable IDNet devices on one loop.
- Panel Compatibility: Designed for use with Simplex 4100ES and 4100U fire alarm control panels.
- Reliable Communication: Digital signaling over a two-wire IDNet SLC loop.
- Extended Wiring Distance: Supports wiring runs up to 10,000 feet.
- Power Supply Integration: Operates from the FACP 24 VDC source with 30–36 VDC IDNet output.
- High Device Density: Ideal for large facilities requiring multiple addressable detection points.
- Compact Design: 4” × 5” plug-in circuit card for efficient space use.
- UL Listed: Certified for fire alarm applications and code compliance.
- Line Tolerance: Handles up to 40 Ohms line resistance and 0.60 μF capacitance.
- Suggested Replacement: Superseded by model 4100-3102 in current production systems.
The 4100-3101 delivers dependable addressable device communication and high capacity for intelligent Simplex 4100-series fire alarm systems.
