4100-6052 | Simplex Serial Digital Alarm Communicating Transmitter (SDACT)
- Regular price
- $619.00
- Sale price
- $619.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: 4100-6052
Description

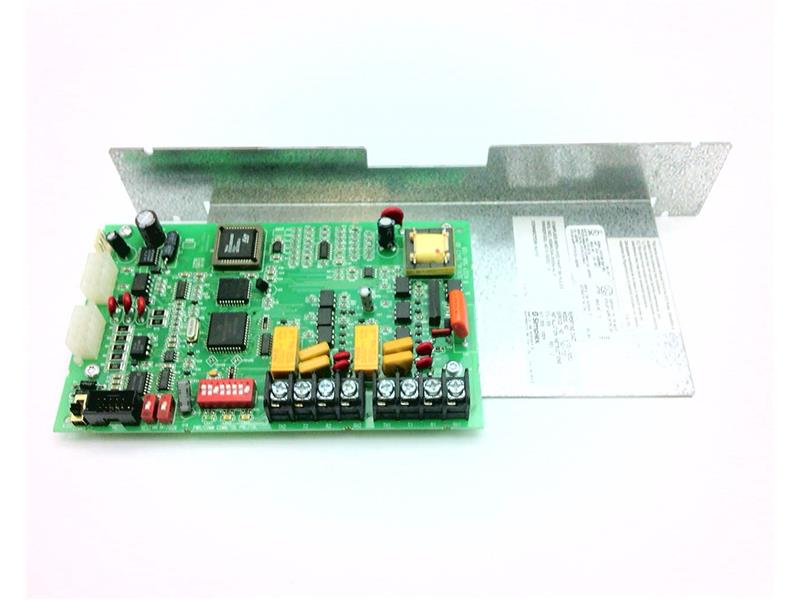

The Simplex 4100-6052 Digital Alarm Communicating Transmitter (SDACT) is a serial communication module that monitors the status of a host fire alarm control panel and transmits system conditions to a remote Central Station. It provides detailed, point-specific alarm, trouble, and supervisory reports to ensure precise event communication and remote monitoring reliability.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Simplex |
| Category | Fire Safety |
| Part Number | 4100-6052 |
| Subcategory | Fire Alarm Control |
| Type | Serial Digital Alarm Communicating Transmitter (SDACT) |
| Compatible Panels | 4007ES, 4010, 4010ES, 4100ES, 4100U |
| Function | Transmits alarm, trouble, and supervisory reports to Central Station |
| Communication | Serial connection to FACP CPU |
| Reporting Format | Contact ID |
| Input Voltage | 19–33 VDC |
| Current – Standby | 60 mA maximum |
| Current – Report Mode | 126 mA maximum |
| Current – Programming Mode | 45 mA maximum |
| Ripple Voltage | 2 V p-p max at 120 Hz |
| Mounting | Internal to host panel enclosure |
| Operating Temperature | 32°F to 120°F (0°C to 49°C) typical |
| Indicators | Status and fault LEDs |
| Compliance | NFPA 72, UL 864 recognized |
| Dimensions | Approx. 6" L × 4" W × 1.5" D |
| Weight | 2.00 lbs |
Information About 4100-6052
The 4100-6052 is a Simplex serial DACT module designed for use with 4007ES, 4010, 4010ES, 4100ES, and 4100U fire alarm control panels. It connects directly to the panel’s CPU via serial communication, ensuring real-time reporting of system events and communication integrity. This transmitter automatically sends Contact ID–formatted messages to the Central Station, providing enhanced diagnostic and response information. The module is powered from the host panel and includes status indicators for operation and fault conditions, making it ideal for NFPA 72–compliant Central Station connectivity.
Key Features:
- Serial Communication Interface: Directly connects to the host FACP CPU for high-speed data transfer.
- Detailed Event Reporting: Transmits alarm, trouble, and supervisory messages with point-specific detail.
- Central Station Compatibility: Sends Contact ID–formatted messages for accurate remote monitoring.
- System Supervision: Continuously monitors fire alarm control panel communication integrity.
- Multi-Panel Support: Compatible with 4007ES, 4010, 4010ES, 4100ES, and 4100U panels.
- Efficient Power Use: Operates from panel power between 19–33 VDC with low current draw.
- Multiple Operating Modes: Distinct current levels for standby, reporting, and programming operation.
- High Reliability: Provides supervised status monitoring to meet Central Station requirements.
- Compact Module Design: Mounts within the host panel cabinet without additional space requirements.
- Custom Programming: Configurable to meet the specific reporting needs of Central Station operators.
The 4100-6052 delivers the reliability and precision required for compliant Central Station fire alarm reporting and remote supervision.
