4100-9111 | Simplex 4100ES Fire Alarm Panel with 9A Power Supply, CPU & Display
- Regular price
- $2,557.00
- Sale price
- $2,557.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: 4100-9111
Description

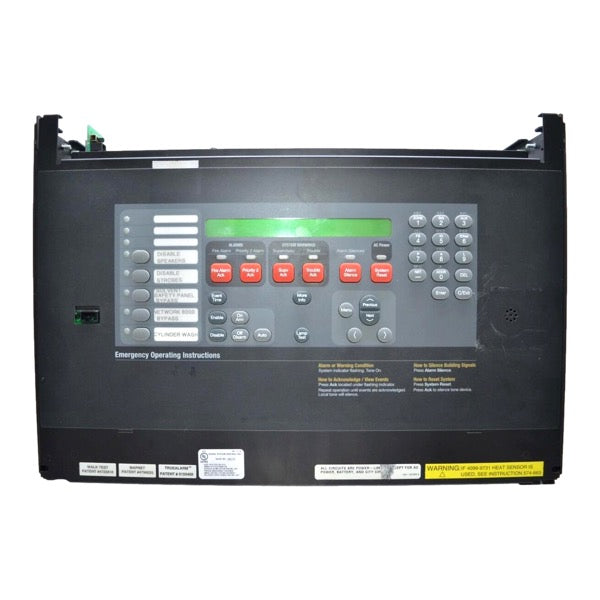

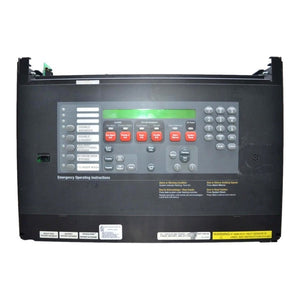

The Simplex 4100-9111 is a fire alarm control panel assembly from the 4100ES series, integrating annunciator display, CPU, battery, and power supply. Rated at 9 amps and operating on 120 VAC, it provides advanced detection, annunciation, and system control for large-scale fire alarm applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Simplex |
| Category | Panel Accessories |
| Part Number | 4100-9111 |
| Subcategory | Buzzer/Horn/Alarm |
| Function | Fire alarm control and annunciation panel |
| Series | 4100ES |
| Power Supply Rating | 9A |
| Input Power | 120 VAC, 60 Hz |
| Included Components | CPU, annunciator/display, installation battery, power supply |
| Communication | Ethernet port, flash memory for configuration storage |
| Device Support | Addressable modules, NACs, IDNAC, repeaters, expansion cards |
| Battery Support | 6.2 Ah up to 110 Ah UL-listed sealed lead-acid batteries |
| Operating Temp | 32°F to 120°F (0°C to 49°C) |
| Operating Humidity | Up to 93% RH non-condensing @ 90°F (32°C) |
| Certification | UL 864, UL 2572, NFPA 72 compliant |
| Status | Active / Legacy (depending on configuration) |
| Weight | 21.5 lbs |
Information About 4100-9111
The 4100-9111 is part of the Simplex 4100ES family, a modular fire detection and control platform designed for flexible installation in complex facilities. This unit includes a built-in CPU, operator display, installation battery, and 9A power supply, making it a self-contained control and annunciation solution. The system supports extensive expansion options, including addressable device modules, IDNAC circuits, power supplies, amplifiers, and networking components. With an integrated Ethernet port for external communications, compact flash storage for configuration files, and UL-listed power and battery charging capability, the 4100-9111 delivers both compliance and reliability. It is ideal for commercial, institutional, and industrial sites requiring advanced protection and coordinated fire response.
Key Features:
- Integrated Assembly: Includes CPU, annunciator display, installation battery, and power supply.
- 9A Power Supply: Provides sufficient current for panel electronics and connected circuits.
- Ethernet Connectivity: Built-in port for system programming and service.
- Local Annunciator: Provides clear operator interface for alarms, supervisory, and trouble signals.
- Modular Compatibility: Supports expansion with IDNACs, NACs, and additional option cards.
- UL Compliance: Meets UL 864 requirements for fire alarm control units.
- Battery Backup: Supports sealed lead-acid batteries with charging and monitoring.
- Flexible Operation: Compatible with both networked and standalone configurations.
- Environmental Ratings: Operates 32°F to 120°F, with up to 93% non-condensing humidity.
The 4100-9111 delivers the reliability and precision required for mission-critical fire detection, annunciation, and control in demanding environments.
