Product Description P/N: 4100-9311
Description

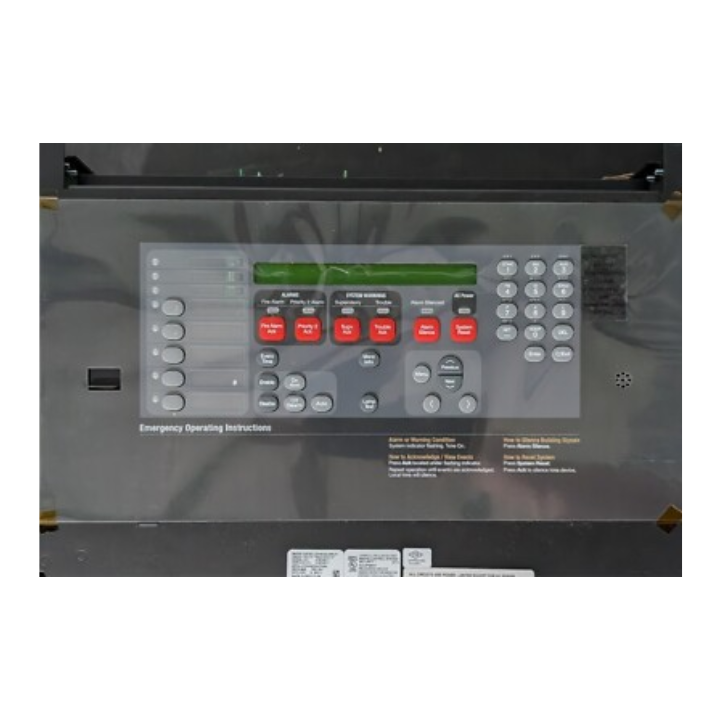

The Simplex 4100-9311 Master Controller Assembly serves as the primary control and user interface for the 4100ES Series Fire Detection and Control Panels. It integrates a backlit LCD display, keypad, and status LEDs, providing comprehensive system monitoring, configuration, and diagnostic capabilities in a modular, network-ready design.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Simplex |
| Category | Fire Alarm Components |
| Part Number | 4100-9311 |
| Subcategory | Master Controller Assembly |
| Compatible System | Simplex 4100ES Fire Alarm Control Panel |
| Display Type | Two-Line by 40-Character LCD (Super-Twist, Wide Viewing Angle) |
| Interface Type | Keypad and Status LED Operator Panel |
| Communication | On-Board Ethernet Port |
| Memory | Compact Flash Storage for NFPA 72 Configuration Archiving |
| Event Logging | 1,250 Alarm + 1,250 Trouble Entries (2,500 Total Events) |
| Access Control | Password-Protected User Levels |
| Configuration | Menu-Driven Interface with PC Programmer Support |
| Installation Type | Modular Assembly |
| Operation Mode | Stand-Alone or Networked Fire Control |
| Diagnostics | Automatic and Manual System Diagnostics |
| Compliance | NFPA 72 and UL Fire Alarm Standards |
| Weight | 16 lbs |
Information About 4100-9311
The 4100-9311 is a master controller assembly for the Simplex 4100ES Fire Detection and Control System, combining user interface functions with system management and data logging capabilities. It features a two-line by 40-character wide-angle LCD and multiple status LEDs for quick visibility of alarms, troubles, and supervisory conditions. Equipped with an on-board Ethernet port, the module provides rapid external communication and data transfer for installation, configuration, and service operations. Additionally, it includes secure compact flash memory storage for archiving configuration files per NFPA 72 standards, ensuring reliable and compliant system maintenance.
Key Features:
- Integrated LCD and Operator Interface: Combines a two-line, 40-character backlit LCD with intuitive keypad and status LEDs for real-time monitoring.
- Network-Ready Communication: Includes an on-board Ethernet port for fast, reliable connection to external systems and service tools.
- Comprehensive Event Logging: Stores up to 2,500 total events (1,250 alarms and 1,250 troubles) accessible via display, printer, or service PC.
- Secure Data Archiving: Built-in compact flash memory ensures NFPA 72-compliant storage of configuration and job data.
- Menu-Driven Operation: Simplifies programming and maintenance with a logical, user-friendly navigation system.
- Advanced Diagnostics: Features both automatic and manual diagnostic functions to minimize downtime and streamline service.
- Flexible System Integration: Supports both stand-alone and networked configurations, adaptable to diverse building systems.
- Enhanced Access Control: Password-protected interface restricts unauthorized system adjustments and ensures operational security.
The 4100-9311 delivers the reliability and precision required for professional fire detection management, combining intelligent control with advanced user accessibility.
