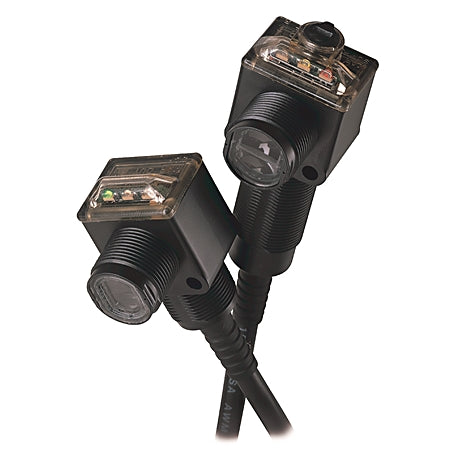

42EF-B1JBBE-F4 | Allen-Bradley RightSight Photosensor
- Regular price
- $144.00
- Sale price
- $144.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 42EF-B1JBBE-F4
Description

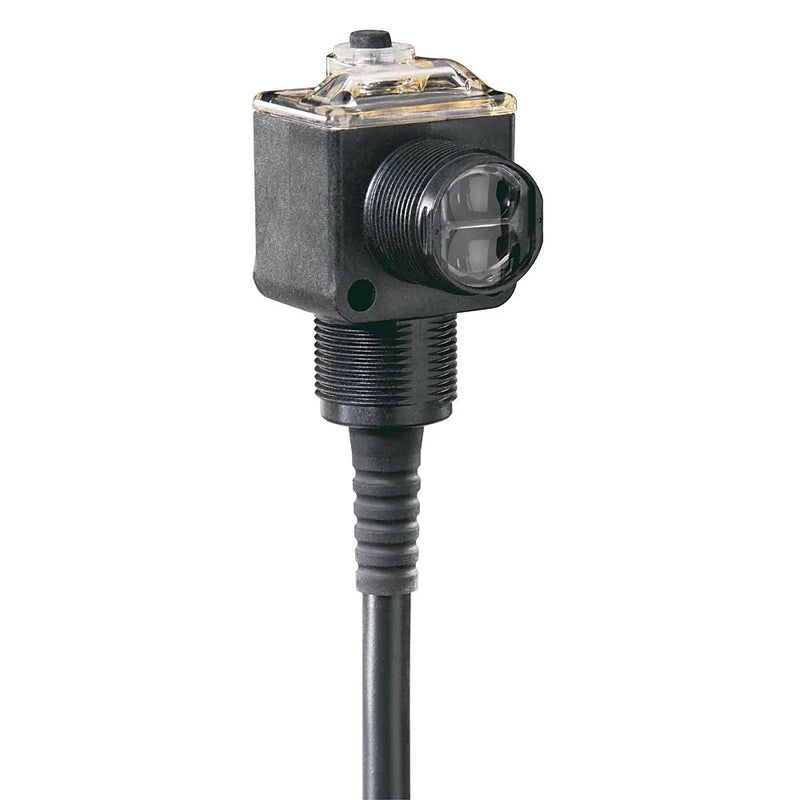

The Allen-Bradley 42EF-B1JBBE-F4 is a RightSight photoelectric sensor designed for general-purpose object detection in industrial environments.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
| Category | Sensors & Switches |
| Part Number | 42EF-B1JBBE-F4 |
| Subcatecory |
Photoelectric
|
|
Applications
|
Background Suppression |
|
Conductor Size |
22 AWG |
| Light Source | Infrared Light (IR) |
| Output | 100 mA |
| Standard | C-TICK,CCC |
| Type | Special, 1-Way System |
| Circuit Type | PNP/NPN |
|
Mounting Type
|
Front Through Hole |
| Sensor Type | Infrared |
| TC Connection | 4 Pin Micro QD on Pigtail |
| Voltage | 10.8-30 Volt |
| Weight | 0.30 lbs |
Information About 42EF-B1JBBE-F4
The Allen-Bradley 42EF-B1JBBE-F4 is a RightSight™ Photoelectric Sensor engineered for precise object detection using background suppression technology. This sensor is ideal for applications where reliable detection is required in close proximity to reflective surfaces or varying backgrounds.
Key Features:
-
Type: Photoelectric Sensor
-
Series: Allen-Bradley RightSight 42EF Series
-
Category: Photoelectric Sensor
-
Subcategory: Background Suppression
-
Sensing Mode: Background Suppression
-
Sensing Range: Up to 100 mm (3.9 inches)
-
Light Source: Infrared LED
-
Output Configuration: Dual NPN (sinking) and PNP (sourcing) outputs
-
Operating Voltage: 10.8 to 30 V DC
-
Current Consumption: 35 mA maximum
-
Response Time: 1 ms
-
Connection Type: 4-pin DC Micro Quick Disconnect on 152 mm (6-inch) pigtail
-
Housing Material: Rugged thermoplastic
-
Mounting Options: 18 mm threaded nose and base mounting
-
Ingress Protection: IP67 and IP69K rated for dust and water resistance
-
Operating Temperature Range: -25 °C to +70 °C (-13 °F to +158 °F)
-
Standards Compliance: CE Marked, cULus Listed, and CSA Certified
-
Use Cases: Ideal for material handling, packaging, and other industrial applications requiring precise object detection near reflective backgrounds
The Allen-Bradley 42EF-B1JBBE-F4 offers a compact and versatile sensing solution with its background suppression capability, ensuring accurate detection in challenging environments. Its dual output configuration and robust design make it a reliable choice for various industrial automation applications.
