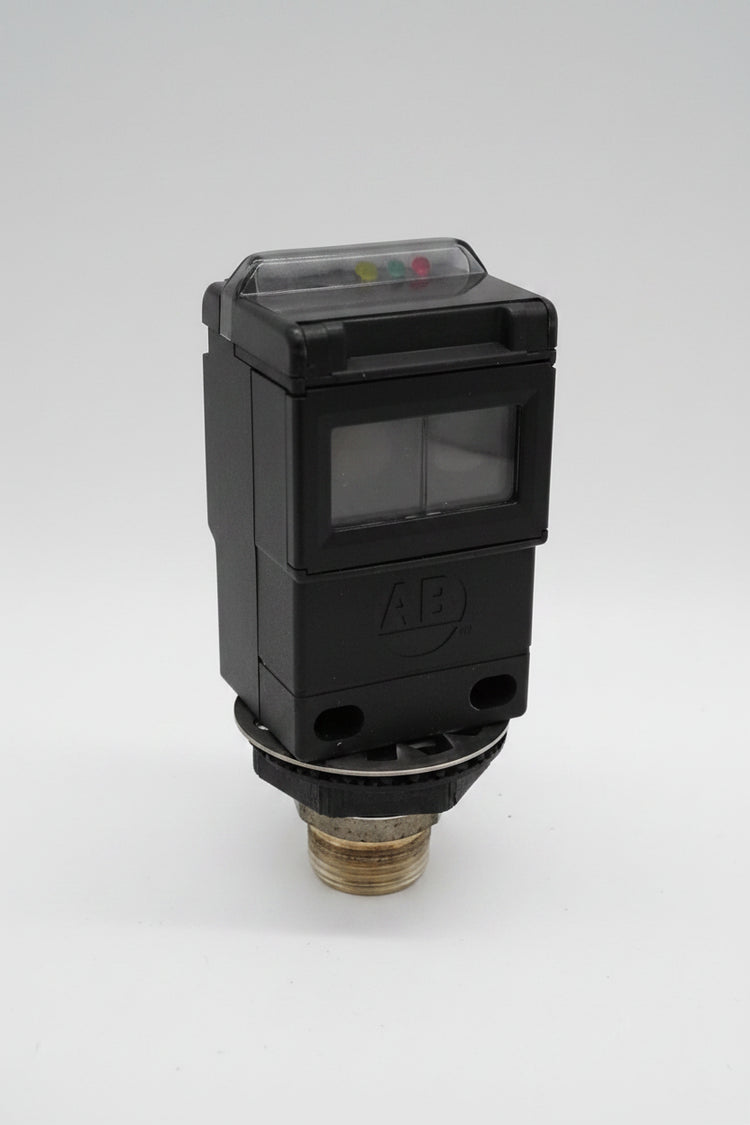

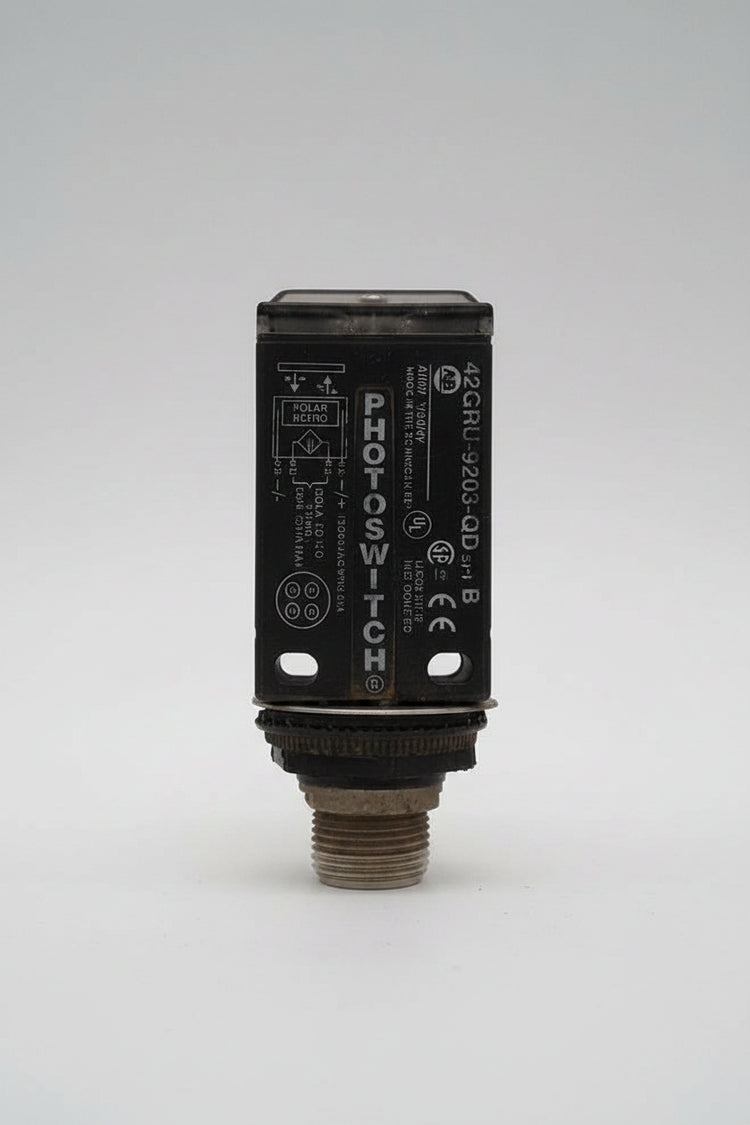

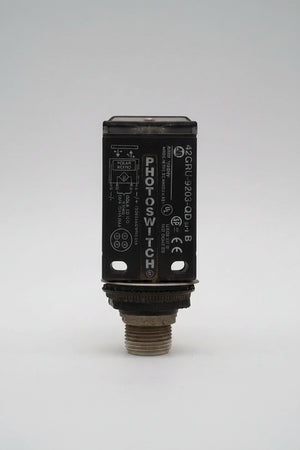

42GRU-9203-QD | Allen-Bradley Photoelectric Sensor AC/DC 4-Pin Mini QD
- Regular price
- $192.00
- Sale price
- $192.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 42GRU-9203-QD
Description
The Allen-Bradley 42GRU-9203-QD is a high-performance photoelectric sensor designed for reliable object detection in industrial automation environments. Featuring polarized retroreflective sensing, a visible red beam, and a compact 4-pin mini quick-disconnect connector, this sensor ensures easy installation and robust performance.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
| Category |
Sensors & Switches
|
| Part Number | 42GRU-9203-QD |
| Subcategory | Photoelectric |
| Connection Type | 4-Pin Mini Quick-Disconnect (QD) |
| Light Source | Visible Red 660 nm (Transmitted Beam) |
| Output | Solid State Isolated N.O. (300 mA max) |
| Sensing Range | 50.8 mm (2 in.) to 6 m (20 ft) with 76 mm (3 in.) reflector |
| Supply Voltage | 70-264 VAC/VDC (50/60 Hz) |
| Field of View | 1.5° |
| Operating Voltage Range | 70-264 VAC/VDC |
| Weight | 0.4900 lb |
Information About 42GRU-9203-QD
The 42GRU-9203-QD belongs to the PHOTOSWITCH Series 9000, offering standard on/off detection with a polarized retroreflective system that effectively minimizes false triggers from shiny surfaces. The sensor operates at a visible red 660 nm wavelength with a 1.5° field of view, supporting precise detection of objects within a sensing range of 50.8 mm (2 inches) to 6 meters (20 feet) when used with a 76 mm (3 inch) reflector. It is powered by a universal voltage range of 70-264 VAC/VDC (50/60 Hz), ensuring compatibility with diverse industrial power supplies.
Key Features:
- Polarized Retroreflective Sensing: Ensures reliable object detection while rejecting false reflections from shiny backgrounds, improving detection accuracy in industrial applications.
- Visible Red Beam: Operates at 660 nm with a 1.5° field of view, providing a clear and precise detection path, simplifying alignment during installation and maintenance.
- Wide Sensing Range: Detects objects at distances ranging from 50.8 mm (2 inches) to 6 meters (20 feet) when used with a standard 76 mm (3 inch) reflector, offering flexibility in various applications.
- Universal Voltage Range: Accepts 70-264 VAC/VDC power input (50/60 Hz), ensuring compatibility with different industrial power supplies, simplifying system integration.
- Solid-State Output: Features an isolated normally open output capable of handling up to 300 mA, providing reliable switching performance for controlling downstream devices.
- Quick-Disconnect Connector: Equipped with a 4-pin mini QD connector for fast and easy installation, reducing wiring time and simplifying maintenance.
- Compact and Rugged Design: Built to withstand harsh industrial environments, ensuring reliable operation even under demanding conditions.
The 42GRU-9203-QD provides a reliable and versatile solution for industrial object detection, combining robust performance with easy installation and maintenance.
