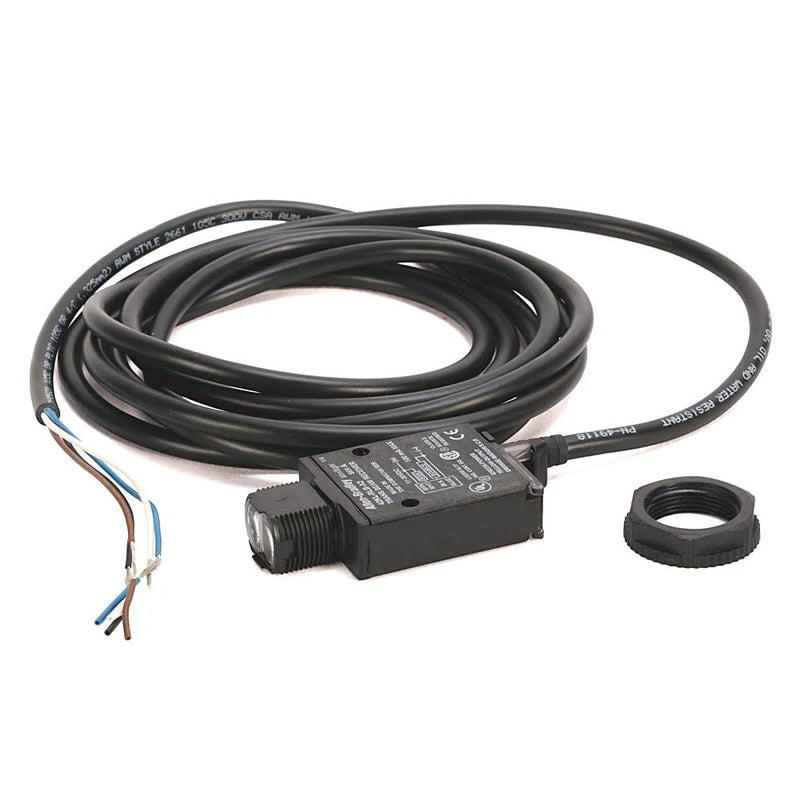

42KL-D1LB-F4 | Allen-Bradley MiniSight Photoelectric Sensor
- Regular price
- $187.00
- Sale price
- $187.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 42KL-D1LB-F4
Description
The Allen-Bradley 42KL-D1LB-F4 is a MiniSight photoelectric sensor designed for compact, reliable object detection in industrial environments.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
| Category | Sensors & Switches |
| Part Number | 42KL-D1LB-F4 |
| Subcatecory |
Photoelectric
|
|
Connection Media
|
DC Micro(M12), Female, Straight, 4-pin PVC, Yellow, Unshielded, 5 m |
|
Connection Type |
4-pin DC Micro QD on 152mm (6in) pigtail |
|
Light Source
|
Infrared LED |
| Operating Version | Standard |
| Input/Control Voltage | 5...24V DC |
| Operating Voltage/Mode | 10.8-30V DC - LO or DO selectable |
| Output Type | Both Sink (NPN) and Source (PNP) |
| Sensing Mode | Standard Diffuse |
| Sensitivity Adjustment | Yes |
| Weight | 0.15 lbs |
Information About 42KL-D1LB-F4
The Allen-Bradley 42KL-D1LB-F4 is a diffuse-mode photoelectric sensor from the MiniSight™ series, engineered for reliable object detection in compact industrial automation setups. It offers precise, short-range sensing with a durable design for harsh environments.
Key Features:
- Sensing Type: Diffuse photoelectric sensor, ideal for detecting objects without the need for a separate reflector.
- Sensing Range: Detects targets from 1 mm up to 380 mm (15 inches), suitable for close-proximity applications.
- Light Source: Infrared LED (880 nm wavelength) provides stable, consistent detection in various lighting conditions.
- Output Type: Dual NPN and PNP transistor outputs (sinking and sourcing), offering flexible integration with control systems.
- Switching Function: Selectable Light Operate (LO) or Dark Operate (DO) mode to suit different detection requirements.
- Response Time: Fast detection with a response time of 1 ms, supporting high-speed automation.
- Input Voltage Range: Operates on 10.8–30 V DC, compatible with standard industrial power supplies.
- Load Capacity: Capable of handling up to 100 mA output current for control signaling.
- Connection Interface: 4-pin DC Micro Quick Disconnect (QD) via 152 mm (6-inch) pigtail cable for easy replacement and installation.
This compact photoelectric sensor is part of the Allen-Bradley MiniSight™ series, making it ideal for applications such as packaging machines, conveyors, and other automated equipment where space and sensing precision are critical.
