42SMU-7261-QD | Allen-Bradley Circular Polarized Photoelectric Sensor
- Regular price
- $219.00
- Sale price
- $219.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 42SMU-7261-QD
Description

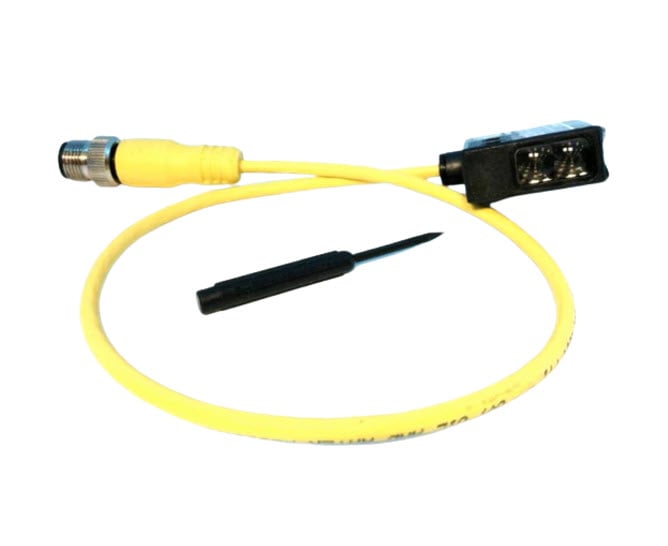

The Allen-Bradley 42SMU-7261-QD is a circular polarized photoelectric sensor with a visible red LED, designed for detecting clear objects up to 1.5 meters away.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
| Category | Sensors & Switches |
| Part Number | 42SMU-7261-QD |
| Subcategory | Photoelectric |
|
Mounting Style
|
Side Through Hole |
| Object Detection | Designed for Clear Object Sensing |
|
Light Source
|
Visible Red LED |
| Sensitivity Adjustment |
Manually Adjustable via Potentiometer
|
| Output Type | PNP |
| Logic Output | DC - Complementary (Light Operate / Dark Operate) |
| Connector Type |
4-Pin Micro Quick Disconnect on Pigtail
|
| Weight | 0.14 lbs |
Information About 42SMU-7261-QD
The Allen-Bradley 42SMU-7261-QD is a compact, circular polarized photoelectric sensor from the PHOTOSWITCH Series 7000, designed for reliable detection of clear and transparent objects in industrial environments. Utilizing a visible red LED and ClearSight™ technology, it offers enhanced performance in challenging applications such as packaging lines and bottling systems.
Key Features:
-
Sensing Mode: Circular polarized retroreflective
-
Sensing Distance: 50 mm to 1.5 meters (1.97 inches to 4.92 feet)
-
Light Source: Visible red LED (660 nm)
-
Output Type: Complementary PNP (light/dark operate)
-
Supply Voltage: 11–28 V DC
-
Current Consumption: 46 mA
-
Response Time: 1 ms ON / 1.5 ms OFF
-
Connector: 4-pin DC micro quick-disconnect
-
Housing Material: Valox® with acrylic lens
-
Environmental Ratings: NEMA 3, 4X, 6P, 12, 13; IP67
-
Operating Temperature: -40°C to +65°C (-40°F to +149°F)
-
Adjustments: 4-turn potentiometer for sensitivity
-
Status Indicator: Red LED for output status
This sensor is well-suited for applications requiring precise detection of clear materials, such as PET bottles or glass containers. Its rugged design and environmental sealing make it ideal for use in harsh industrial settings.
