42SRP-6004-QD | Allen-Bradley Light Standard Diffuse Photoelectric Sensor
- Regular price
- $682.00
- Sale price
- $682.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 42SRP-6004-QD
Description

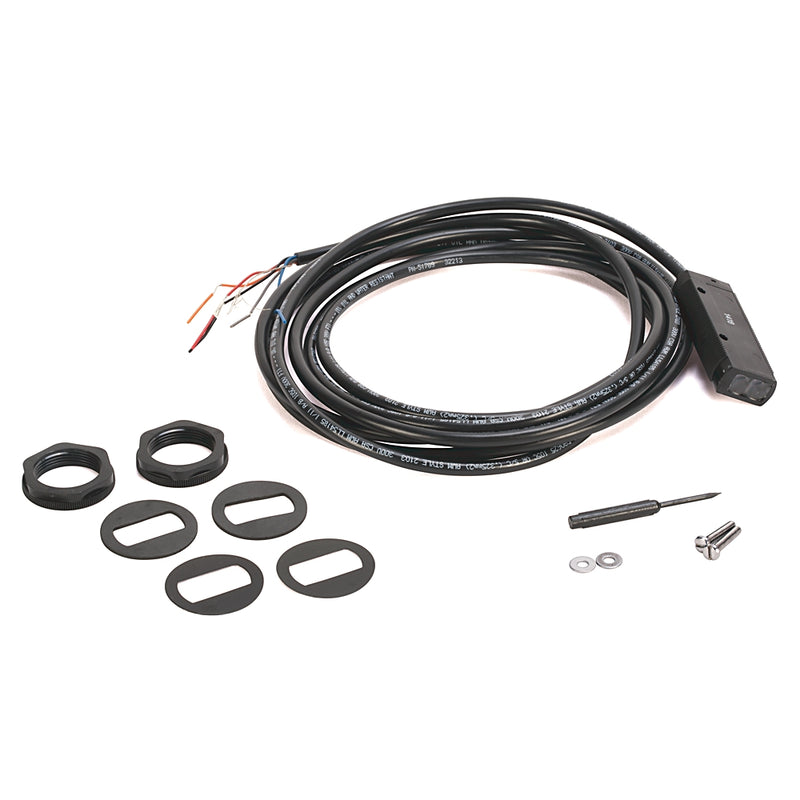

The Allen-Bradley 42SRP-6004-QD is a compact, standard diffuse photoelectric sensor designed for general-purpose object detection. Emitting infrared light at 880 nm, this versatile sensor provides reliable detection performance in reflective and close-range sensing applications.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
| Category | Sensors |
| Part Number | 42SRP-6004-QD |
| Subcatecory |
Photoelectric Sensors
|
| Series | 6000 |
| Light Source | Infrared (880 nm) |
| Sensing Mode | Standard Diffuse |
| Output Type | Power MOSFET |
| Output Current | 100 mA |
| Operating Voltage | 20–132 VAC/DC |
| Operating Mode | Light ON |
| Connection Type | M12, 4-Pin Micro QD |
| Weight |
0.2400 lb
|
Information About 42SRP-6004-QD
As part of the Series 6000 photoelectric family, the 42SRP-6004-QD operates on a wide voltage range of 20–132 VAC/DC, making it suitable for AC or DC-powered control systems. It features standard diffuse sensing using infrared light and includes a light-on operating mode, meaning the output activates when light is received. With an output current rating of 100 mA, the sensor uses a Power MOSFET output for reliable and fast switching.
Key Features:
-
Standard Diffuse Sensing: Detects objects based on reflected light, suitable for short-range, direct sensing applications.
-
Infrared Light Source (880 nm): Offers stable performance even in challenging lighting conditions.
-
Wide Voltage Range (20–132 VAC/DC): Flexible power compatibility with AC and DC systems.
-
Power MOSFET Output: Delivers fast, reliable switching with 100 mA current capacity.
-
Compact Cuboid Design: Ideal for tight spaces in machinery or panel installations.
-
M12 4-Pin Quick Disconnect: Enables easy installation and replacement in the field.
The 42SRP-6004-QD is ideal for material handling, packaging, and general automation applications requiring compact, cost-effective object detection.
