Product Description P/N: 440R-N23125
Description

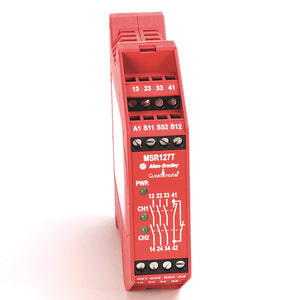

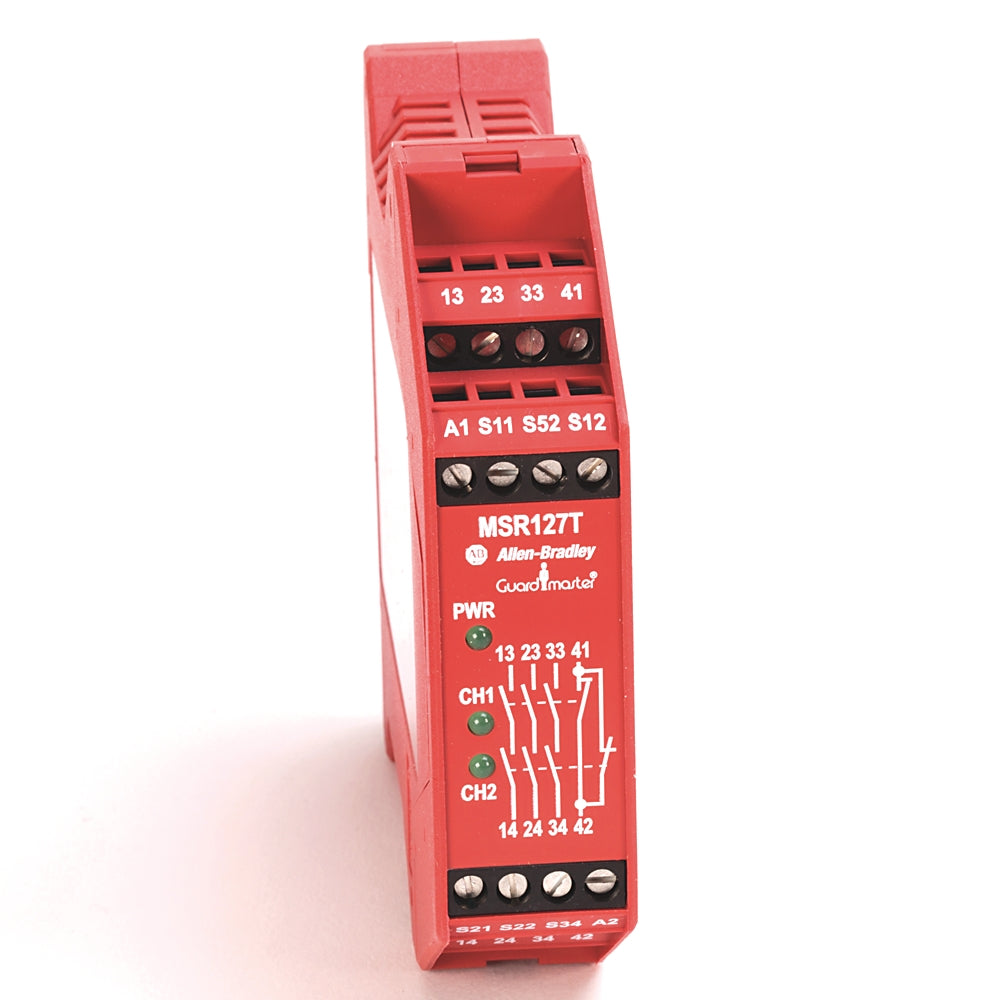

The Allen-Bradley 440R-N23125 is a Guardmaster MSR127TP safety relay designed for single-function safety applications.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
| Category | Safety Systems |
| Part Number | 440R-N23125 |
| Subcatecory |
Safety Relay
|
|
Applications
|
For Monitoring of Emergency-Stop Circuits |
|
Contact Rating |
3 Amps |
|
Mounting Type
|
Rail |
| Power Supply | 115VAC |
| Standard | BG,CE,CULus |
| Blade Dimensions | 22.5 mm W x 114.5 mm D x 99 mm H |
| Enclosure | 22.5MM |
| Output | 0,3,0,0 |
| Split Crucible | S |
| Type | Basic Device, 1-Channel or 1 and 2-Channel |
| Weight | 0.11 lbs |
Information About 440R-N23125
The Allen-Bradley 440R-N23125 is a Guardmaster MSR127TP safety relay designed for monitoring safety devices such as emergency stop buttons, safety gates, and light curtains. It provides reliable safety control in industrial applications.
Key Features:
-
Input Configuration: Supports 1 or 2 normally closed (N.C.) inputs or PNP light curtain inputs.
-
Output Configuration: Offers three normally open (N.O.) safety outputs and one normally closed (N.C.) auxiliary output.
-
Reset Modes: Configurable for automatic or manual reset, allowing flexibility in system design.
-
Power Supply: Operates on a 115V AC power supply.
-
Terminal Type: Features fixed terminals for secure connections.
-
Safety Standards Compliance: Certified to meet safety standards including ISO 13849-1 PLe, Category 4, and SIL CL 3.
-
Physical Characteristics: Compact design with a 22.5 mm housing width, suitable for DIN rail mounting.
This safety relay is part of the Guardmaster MSR series, known for its reliability and compliance with international safety standards. It is suitable for applications requiring high safety integrity and performance levels.
