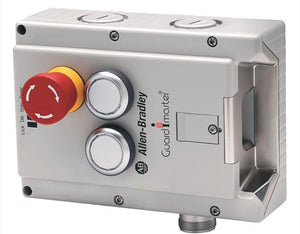

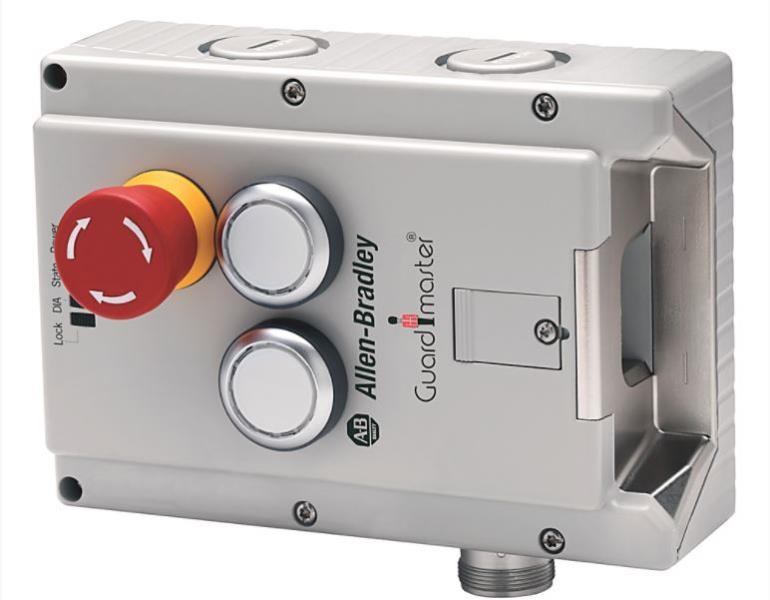

442G-MABR-URM-C03 | Allen-Bradley Lock Module
- Regular price
- $1,897.00
- Sale price
- $1,897.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 442G-MABR-URM-C03
Description
The Allen-Bradley 442G-MABR-URM-C03 is a robust safety lock module designed for machine guarding applications, providing reliable door interlocking with high locking force and RFID-based actuator coding.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
| Category |
Sensors & Switches
|
| Part Number | 442G-MABR-URM-C03 |
| Subcatecory |
Electrically Operated Lock
|
|
Connection Type
|
19-Pin M23 Style Connector |
| Enclosure Type | IP65 |
| Standard | CCC,CE,CUL,KC,RCM,UL |
|
Type
|
Guardlocking Switch |
|
Contact Configuration
|
2 x PNP, 200mA max. |
|
Material
|
Plastic |
|
Voltage
|
24 Volt |
|
Weight
|
2.50 lbs |
Information About 442G-MABR-URM-C03
The Allen-Bradley 442G-MABR-URM-C03 is a robust, multifunctional access box designed for industrial safety applications requiring secure guard locking and reliable personnel protection. Engineered for full-body access safeguarding, it combines RFID-coded safety interlocking with control functions in a compact, durable housing to withstand demanding operational environments.
Key Features:
-
Type: Multifunctional Access Box with Guard Locking and Integrated Controls
-
Locking Principle: Power-to-Release (Power-to-Unlock) for enhanced safety
-
Operation: Guard remains locked until power is applied for release
-
Actuator Style: RFID-coded actuator for high tamper resistance (ISO 14119 compliant)
-
Controls: Integrated E-stop button and two illuminated push buttons
-
Indicators: Four bright LEDs for system status and diagnostic feedback
-
Holding Force: Up to 2000 N for secure locking under high-force conditions
-
Escape Release: Internal manual release for emergency egress
-
Material: Glass Reinforced Plastic (GRP) housing for strength and durability
-
Ingress Protection: IP65 (dust-tight and protected against water jets)
-
Mounting Method: Designed for right-hand hinged doors
-
Connector Type: 19-pin M23 connector for streamlined wiring
-
Dimensions: 285.3 mm (length) x 114 mm (width) x 113.9 mm (depth)
-
Supply Voltage: 5–24V DC
-
Standards Compliance: ISO 14119, IEC 60947
-
Certifications: CE Marked, TÜV Certified, cULus Listed
The 442G-MABR-URM-C03 is ideal for safeguarding machinery with full-body access points where a high holding force, reliable interlocking, and user-friendly control interfaces are critical. Its rugged design, integrated status indicators, and escape release feature make it highly suitable for harsh industrial environments, providing dependable safety functionality with easy installation and maintenance.
