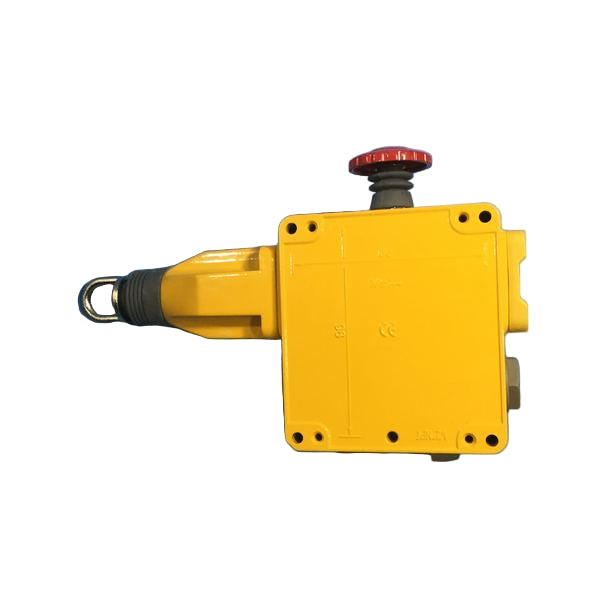

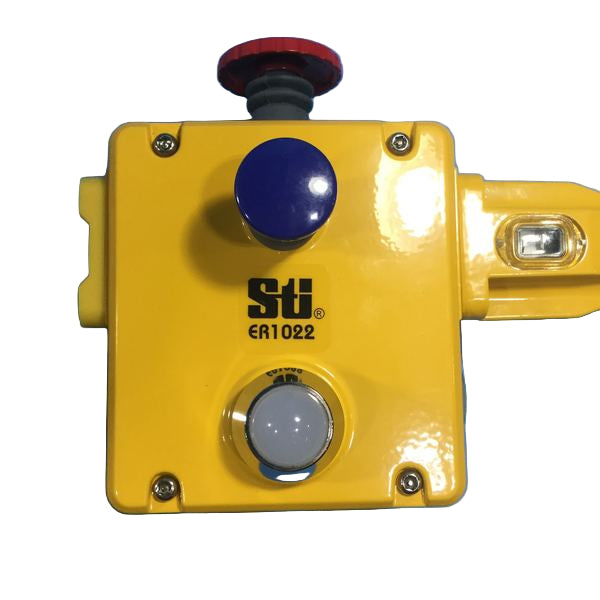

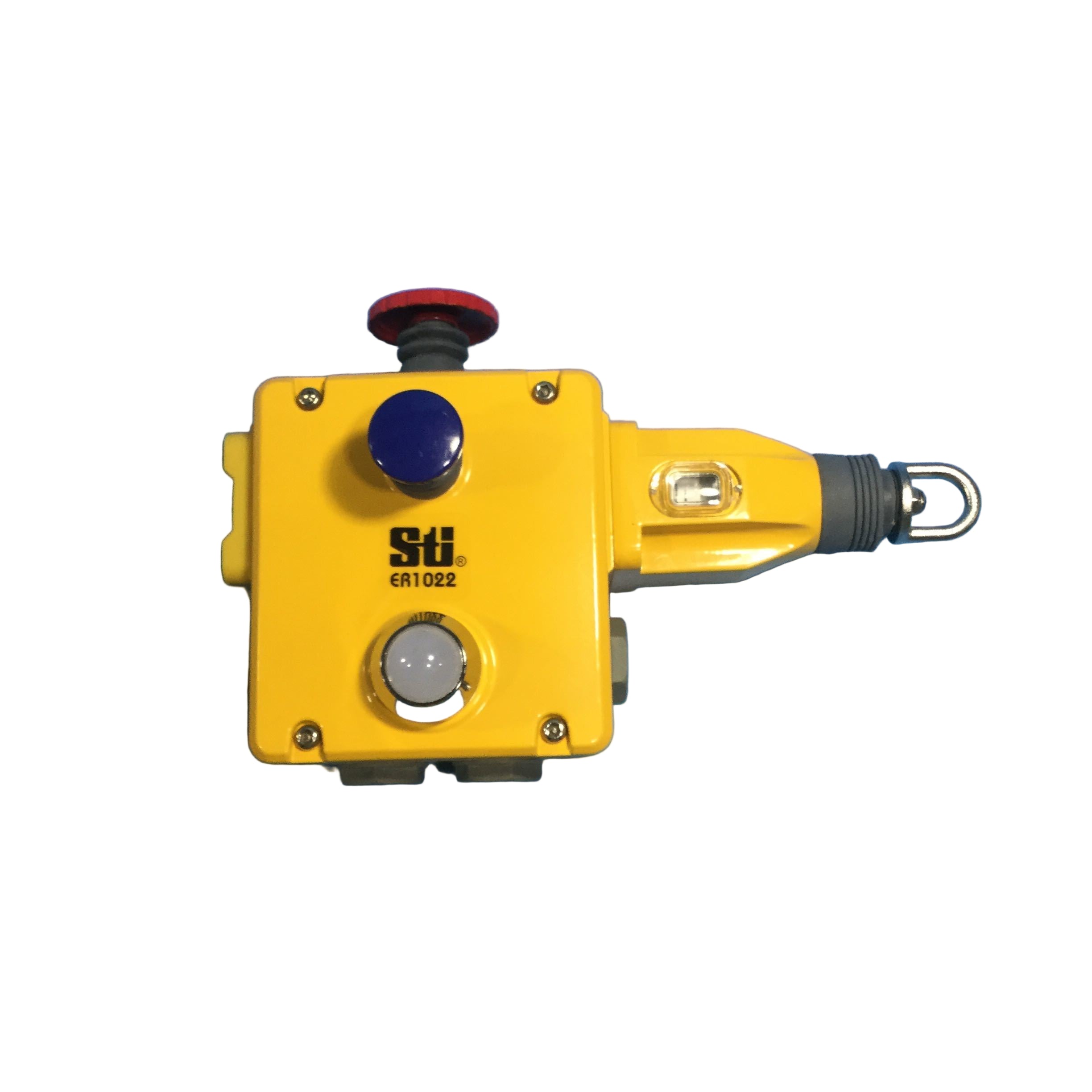

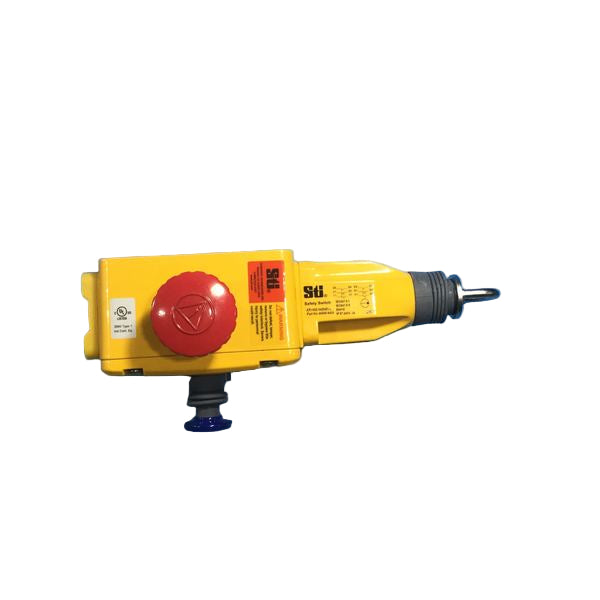

44506-6420 | Omron Cable Pull Safety Switch with E-Stop and Indicator Beacon
- Regular price
- $479.00
- Sale price
- $479.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 44506-6420
Description
The Omron 44506-6420 is a robust cable pull limit switch designed for industrial safety applications requiring emergency stop functionality along conveyor or machinery systems. This unit provides reliable mechanical actuation with a long cable span and integrated safety indicators, ensuring dependable shutdown control in hazardous or automated environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron Automation and Safety |
| Category | Safety Switches |
| Part Number | 44506-6420 |
| Subcategory | Cable Pull Switch |
| Contact Form | 4 NC + 2 NO |
| Mounting Style | Chassis Mount, 1/2 in NPT x 4 |
| Features | E-Stop and Indicator Beacon Included |
| Housing Material | Die-Cast Aluminum Alloy |
| Rope Span (Max) | 28 m |
| Ingress Protection | IP67 |
| Standards Compliance | IEC947-5-1, IEC947-5-5, EN418, UL508, BS5304, CE, UL, C-UL, TUV |
| Power Supply | 24 VDC for indicator beacon |
| Connection Type | Screw terminal block |
| Operating Temperature | –20°C to +60°C |
| Safety Category | Suitable for machine safety and emergency stop circuits |
| Mounting Orientation | Left-mounted window monitoring output |
| Application | Conveyor and machinery emergency stop |
| Weight | Approx. 1.3 kg |
Information About 44506-6420
The 44506-6420 is part of Omron Automation and Safety’s ER series of cable pull switches engineered for emergency stop (E-Stop) safety on conveyors and production lines. Constructed with a durable die-cast aluminum housing, it offers excellent resistance to impact, vibration, and harsh environments. The switch features a 4 NC + 2 NO contact configuration, a built-in indicator beacon, and an E-Stop button for visual and manual actuation. Certified to IEC, UL, and CE standards, the device ensures compliance with global safety regulations while allowing for chassis-mounted installation using 1/2-inch NPT x 4 conduit entries.
Key Features:
- Safety Contact Configuration: Includes 4 normally closed (NC) and 2 normally open (NO) contacts for redundant safety circuit integration.
- Emergency Stop Function: Built-in E-Stop actuator provides immediate machine shutdown capability.
- Visual Status Beacon: Integrated indicator beacon displays operational and fault status.
- Durable Construction: Die-cast aluminum alloy housing ensures long service life in demanding industrial conditions.
- Environmental Protection: Rated IP67 for resistance to dust and water ingress.
- Flexible Mounting: Designed for chassis mount with 1/2-inch NPT x 4 connection points.
- Extended Rope Span: Supports cable lengths up to 28 meters for wide-area machine guarding.
- Standards Compliance: Meets IEC947-5-1, EN418, UL508, and TÜV certification requirements.
The 44506-6420 delivers the reliability and precision required for industrial emergency stop and machine safety applications.
