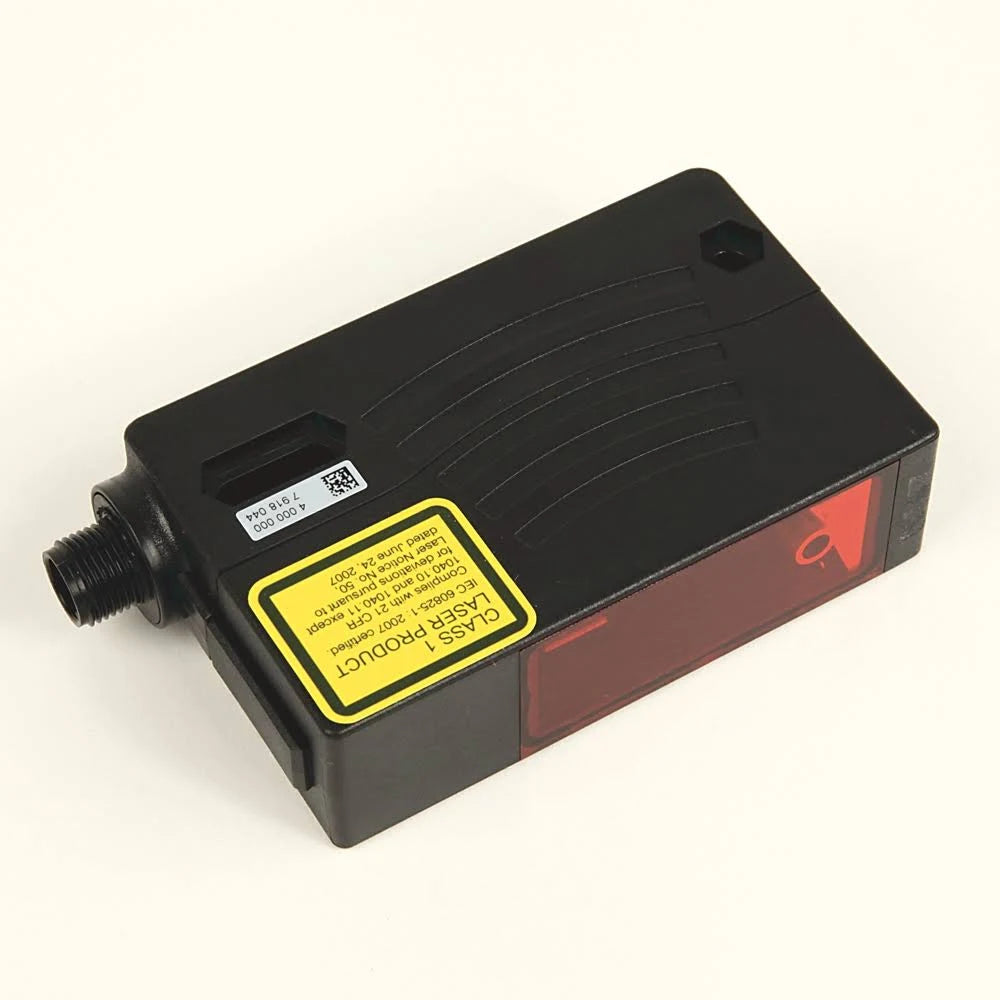

45LMS-D8LGC1-D4 | Allen-Bradley Laser Measurement Sensor 0.2-8m
- Regular price
- $515.95
- Sale price
- $515.95
- Regular price
-
$607.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: 45LMS-D8LGC1-D4
Description
The Allen-Bradley 45LMS-D8LGC1-D4 is a high-performance laser measurement sensor designed for precision distance measurement in industrial environments. With a diffuse sensing configuration, Class 1 laser output, and support for analog and IO-Link communication, it offers accurate non-contact distance readings over a range of 0.2 to 8 meters.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
| Category |
Sensors & Switches
|
| Part Number | 45LMS-D8LGC1-D4 |
| Subcategory | Photoelectric |
| Series | 45LMS |
| Sensor Type | Laser Measurement Sensor |
| Measurement Range | 0.2 m to 8 m (0.66 to 26.25 ft) |
| Light Source | Class 1 Laser |
| Output Type | 4–20 mA Analog, IO-Link Push-Pull |
| Circuit Type | PNP/NPN |
| Operating Modes | Light Operate / Dark Operate |
| Response Time | 10 ms |
| Connection Type | M12 Micro QD, 4-pin |
| Material | Plastic |
| Operating Voltage | 10–30 VDC |
| Output Current | 100 mA |
| Operating Temperature | -22 to 122°F (-30 to 50°C) |
| Shipping Weight | 0.2600 lb |
Information About 45LMS-D8LGC1-D4
The 45LMS-D8LGC1-D4 is part of the Allen-Bradley 45LMS series of laser measurement sensors, engineered to deliver reliable and highly accurate distance detection. It operates with a Class 1 laser light source and is capable of measuring targets from 0.2 meters to 8 meters (0.66 to 26.25 feet). The sensor is housed in a durable plastic enclosure and includes a 4-pin M12 micro QD connector for fast installation and maintenance. Designed to work in demanding environments, the sensor can operate in temperatures ranging from -22°F to 122°F. It supports both PNP and NPN output logic and includes 4–20 mA analog output as well as IO-Link connectivity for real-time diagnostics and flexible integration.
Key Features:
- Class 1 Laser Output: Safe and precise measurement using a visible laser light source for improved alignment and targeting.
- Extended Measurement Range: Measures distances from 0.2 m to 8 m (0.66–26.25 ft), making it suitable for mid- to long-range applications.
- Dual Output Options: Supports 4–20 mA analog output and IO-Link push-pull digital communication for flexible connectivity.
- Light/Dark Operate Modes: Switchable operating modes accommodate different sensing environments and object types.
- PNP/NPN Compatibility: Supports multiple circuit types for easy integration with different control systems.
- Teach Button Functionality: Allows for intuitive configuration and calibration without external tools.
- Fast Response Time: 10 ms response ensures suitability for high-speed automation processes.
- Durable Design: Operates in harsh environments with a plastic enclosure rated for industrial use.
- Wide Operating Voltage: Functions across a 10–30 VDC range, compatible with standard control voltages.
- Compact Connection: Equipped with a 4-pin M12 micro quick-disconnect for streamlined installation.
The 45LMS-D8LGC1-D4 laser sensor provides reliable and highly configurable distance measurement ideal for demanding applications in manufacturing, packaging, and materials processing.
