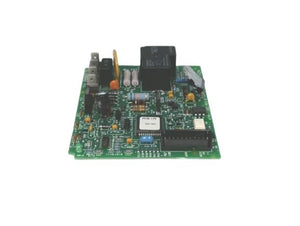

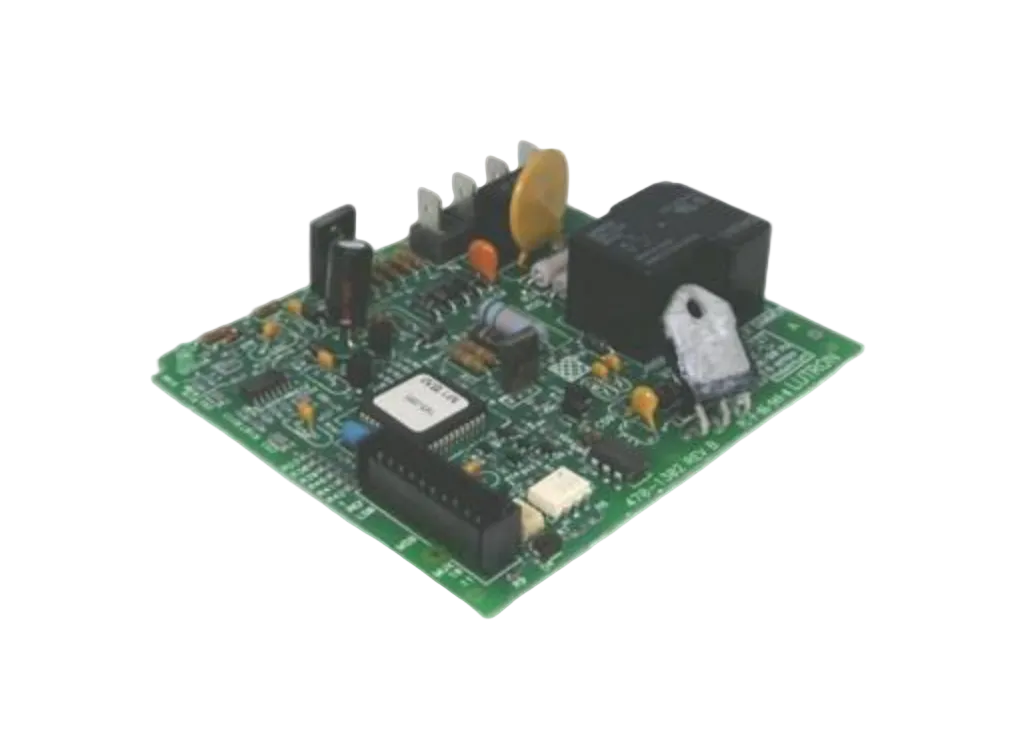

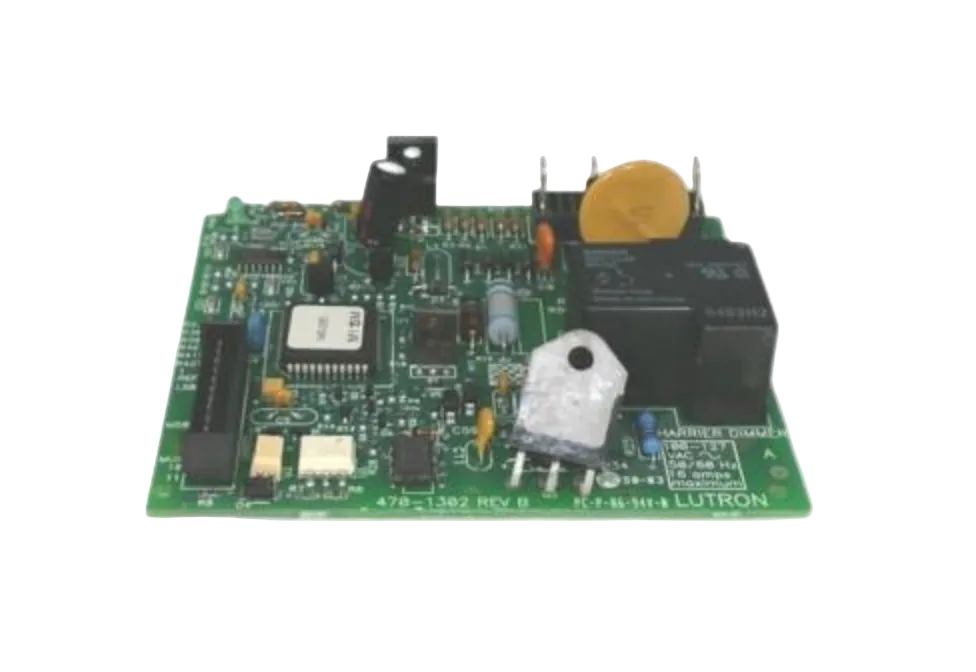

470-1302 | Lutron PC Board PLC/Add-On Board

Description

Part 470-1302 is an add-on PC board PLC categorized under PLCs/Machine Control. It is designed to extend functionality within automated control systems, providing additional processing capabilities for enhanced control operations in industrial environments. Suitable for integration in complex machine control applications.

Technical Specifications

Information About 470-1302

Part # 470-1302 is a dimming card designed as an add-on board under the PLCs/Machine Control category, specifically engineered to enhance lighting control capabilities within automated systems. This PC board is tailored to integrate seamlessly with existing PLC setups, offering precise dimming control for LED lighting loads up to a maximum capacity of 300 watts. Designed to operate within a wide voltage range of 100-277 V and compatible with both 50 Hz and 60 Hz power frequencies, the 470-1302 dimming card provides reliable performance across diverse electrical environments, making it a versatile solution for industrial, commercial, and institutional applications.

The primary function of the 470-1302 dimming card is to regulate LED lighting intensity efficiently, allowing automated systems to optimize lighting levels based on specific operational requirements. This capability is crucial in environments where controlled lighting contributes to energy savings, customized ambiance, or productivity enhancements. The board’s design accommodates a broad range of applications, from energy-efficient facility lighting to process-driven illumination control in production environments. By integrating this add-on dimming card, users can achieve adaptable lighting management that aligns with real-time system demands, improving overall energy efficiency and reducing operational costs.

With a maximum load capacity of 300 watts for LED lighting, the 470-1302 dimming card is engineered to support robust lighting configurations, making it suitable for both single-point control and distributed lighting systems. The 300-watt limit provides ample capacity for various LED lighting fixtures, ensuring consistent dimming performance without compromising illumination quality. This load capacity enables the card to function effectively within different applications, such as office lighting control, industrial process lighting, or commercial display lighting, where adaptable illumination is essential.

The 100-277 V operating range of the 470-1302 dimming card enables flexible installation in regions with varying voltage standards, eliminating the need for additional voltage adaptation or transformers. This feature makes the dimming card a practical solution for global applications, as it can be deployed across different facilities without concern for regional voltage compatibility. The dual-frequency compatibility with both 50 Hz and 60 Hz systems further enhances its versatility, supporting installation across North American, European, and other international power grids. This adaptability allows the card to function seamlessly in diverse operational settings, meeting the requirements of both local and global deployments.
