500-033260 | Siemens DPU Device Programmer and Test Unit for FireFinder XLS, MXL, FS-250
- Regular price
- $1,704.00
- Sale price
- $1,704.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: 500-033260
Description

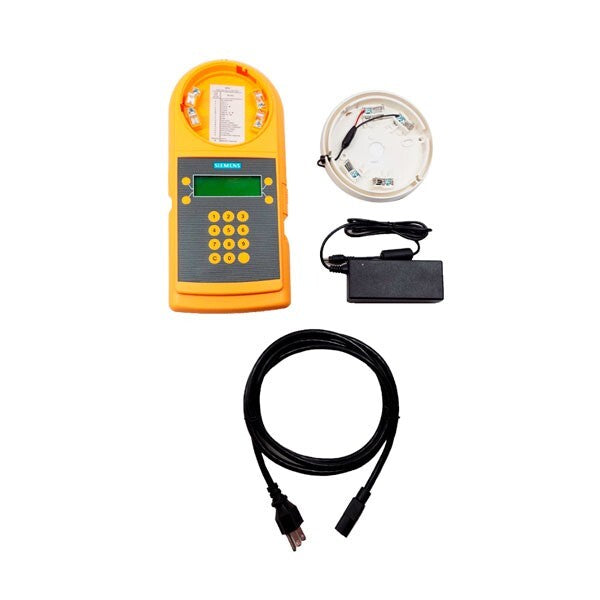

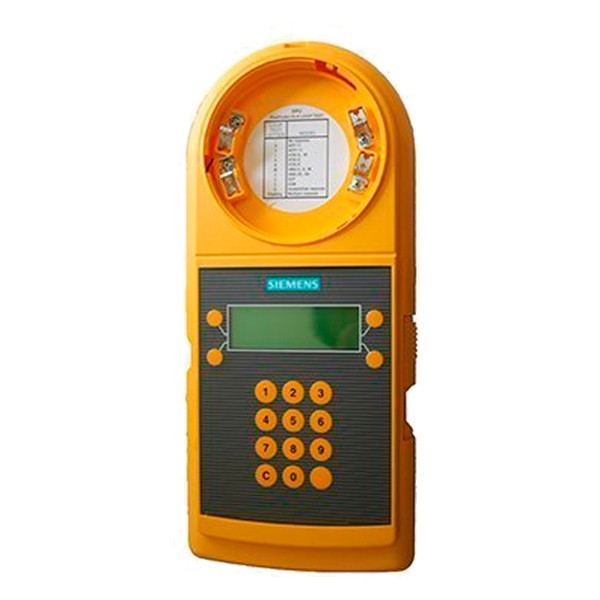

The Siemens 500-033260 DPU is a portable device programmer and test unit for FireFinder XLS, MXL, and FS-250 fire alarm control panels. It programs addresses into compatible devices and verifies their functionality before installation. Compact and menu-driven, the DPU ensures accurate configuration, ground-fault detection, and simplified commissioning of fire alarm devices.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Fire Safety |
| Part Number | 500-033260 |
| Subcategory | Programming Tool |
| Model | DPU |
| Compatible Systems | FireFinder XLS, MXL, FS-250 |
| Display | Backlit LCD with keypad |
| Programming Base | Integrated DB-11 (detectors), DB-3 adapter for IL-series |
| Power Supply | NiMH rechargeable batteries (included), AA Alkaline, or AC adaptor |
| Operating Modes | Battery or AC operation (loop testing requires AC) |
| Battery Life | Up to 4 hours continuous use (NiMH fully charged) |
| Functions | Device programming, functional testing, loop testing, ground-fault detection |
| Memory | FLASH memory for upgrades |
| Optional Accessories | DPU-C1 carrying case, DPU-PRT label printer & case |
| Approvals | UL 864 9th Edition, CSFM Approved |
| Weight | ~2.0 lbs (approx. with batteries and case) |
Information About 500-033260
The 500-033260 is part of Siemens’ FireFinder XLS support tools, designed to streamline installation and maintenance of addressable fire alarm devices. This unit electronically writes device addresses into non-volatile memory and performs functional tests to confirm correct operation. Featuring an integrated DB-11 base for detectors, a backlit LCD, and keypad navigation, it guides installers through programming with minimal training required. The DPU operates on rechargeable NiMH batteries, replaceable AA cells, or AC power, making it flexible for field use. Optional accessories include a label printer (DPU-PRT) and carrying cases (DPU-C1, DPU-PRT), providing added convenience for large projects.
Key Features:
- Device Address Programming: Programs addresses into FireFinder XLS, MXL, and FS-250 compatible devices.
- Built-In Testing: Verifies device functionality before installation.
- Loop and Ground-Fault Detection: Detects faults when operating on AC power.
- LCD Display with Keypad: Provides user-friendly, menu-driven programming.
- Integrated DB-11 Base: Allows direct programming and testing of detectors.
- Flexible Power Options: Operates on NiMH rechargeable batteries, AA alkalines, or AC adaptor.
- Optional Label Printing: Prints loop-detector addresses when paired with DPU-PRT.
- Portable and Compact: Lightweight design with available carrying cases.
The 500-033260 DPU delivers the reliability and flexibility required for professional fire alarm system commissioning.
