50017460-003 | Honeywell 24V Internal Transformer for Modutrol IV Motors

Description

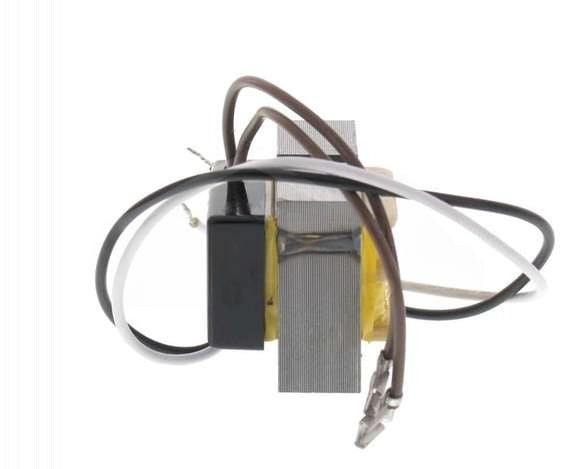

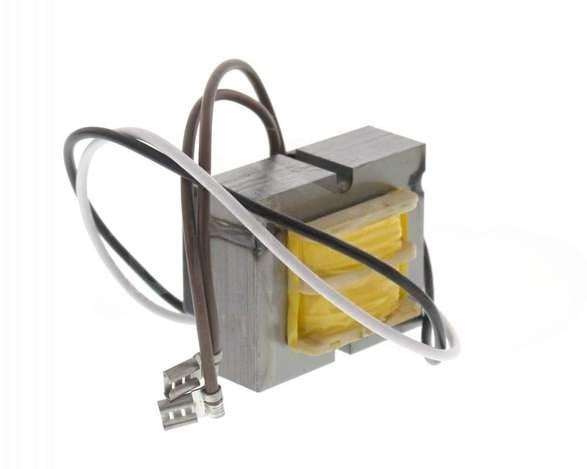

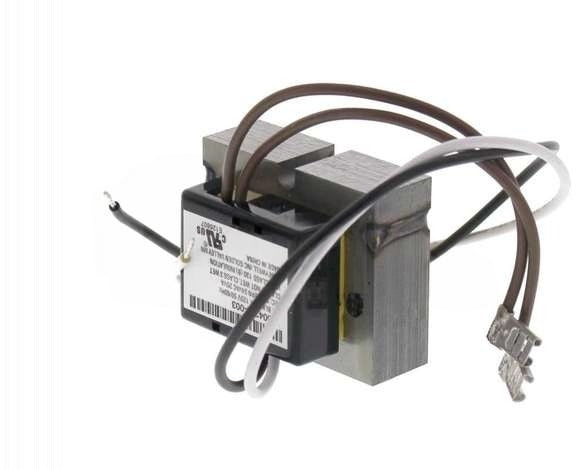

The Honeywell 50017460-003 is a 24V internal transformer designed for use with Modutrol IV motors. It converts 120V AC input to a stable 24V AC output, ensuring reliable power delivery in control applications.

Technical Specifications

Information About 50017460-003

The 50017460-003 is part of Honeywell’s Modutrol IV motor accessory line, built to provide consistent low-voltage power for HVAC control systems. Designed for internal mounting, it features a 120 VAC primary and a 24 VAC secondary winding, making it suitable for direct integration into compatible Modutrol IV motors. Its quick-connect terminals simplify electrical installation, while its compact form factor allows for easy placement within the motor housing. With a durable build and compatibility with both 50 Hz and 60 Hz systems, this transformer is engineered for long-term reliability in demanding mechanical environments.

Key Features:

• Purpose-built for Modutrol IV motors: Provides the required low-voltage power supply for proper motor control operation.

• Standardized voltage conversion: Steps down 120V AC primary input to a stable 24V AC secondary output.

• Dual-frequency compatibility: Operates seamlessly on both 50 Hz and 60 Hz power systems.

• Quick-connect terminal design: Enables fast, secure electrical connections without the need for complex wiring.

• Internal mounting configuration: Fits directly inside Modutrol IV motors for a protected, space-efficient installation.

• Robust Honeywell construction: Ensures long service life even in demanding HVAC control environments.

• Lightweight and compact: Weighs under 1 lb for easy handling during installation or replacement.

The 50017460-003 delivers the reliability and precision required for consistent low-voltage power supply in Modutrol IV motor applications.
