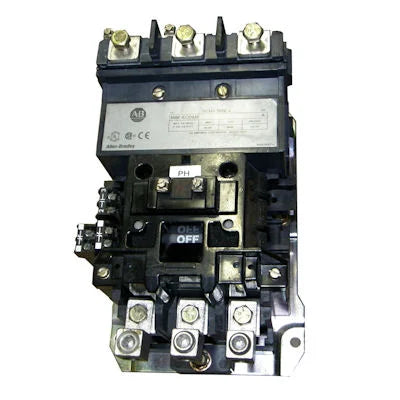

500F-EOD930 | Allen-Bradley NEMA Feed Through Contactor AC
- Regular price
- $3,787.00
- Sale price
- $3,787.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 500F-EOD930
Description
The Allen-Bradley 500F-EOD930 is a NEMA Size 4 feed-through contactor designed for heavy-duty industrial applications requiring robust motor control. Featuring 3 power poles and auxiliary contacts in a 1 NO / 1 NC configuration, it operates on a 110/120V AC coil and is supplied in an open-type frame for panel-mounted installations.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
| Category |
Contactors & Starters
|
| Part Number | 500F-EOD930 |
| Subcategory | Contactor |
| Series | 500F |
| NEMA Size | Size 4 |
| Coil Voltage | 110/120 VAC, 50/60 Hz |
| Main Contacts | 3-Pole |
| Auxiliary Contacts | 1 NO, 1 NC |
| Enclosure Type | Open Frame |
| Phase | 3-Phase |
| Mounting | Panel Mount (open style) |
| Standards Compliance | CE, CSA, CUL, UL, KC, Marine |
| Shipping Weight | 24.9700 lb. |
Information About 500F-EOD930
The 500F-EOD930 is part of Allen-Bradley’s 500F line of NEMA-rated contactors, tailored for use in motor starters, HVAC systems, pump panels, and other industrial control environments. This unit is a Size 4 contactor, capable of handling larger motors and higher current loads in three-phase systems. It is powered by a 110/120 VAC coil at 50/60 Hz and includes three main poles for power switching along with 1 normally open (NO) and 1 normally closed (NC) auxiliary contact for signaling or interlocking. Its open-type design allows for integration into enclosures or custom control panels, while full certification to CE, CSA, UL, KC, and Marine standards ensures global compatibility and safety compliance.
Key Features:
- NEMA Size 4 Rated: Suitable for controlling motors up to approximately 135–150 HP at 460V, depending on application.
- 3-Pole Configuration: Handles standard three-phase loads for large motors or industrial equipment.
- 110/120V AC Coil: Operates with standard control voltages at both 50 and 60 Hz.
- Auxiliary Contacts (1 NO / 1 NC): Provides additional flexibility for signaling, interlocking, or logic functions.
- Open Frame Design: Allows for panel integration in custom enclosures or larger motor control centers.
- Feed-Through Terminal Arrangement: Simplifies wiring in multi-component systems and starter assemblies.
- High Durability: Engineered for continuous duty cycles and high mechanical endurance in demanding applications.
- Broad Certification Range: Complies with CE, CSA, CUL, UL, KC, and Marine standards, ensuring installation versatility across industries.
- Maintenance-Friendly: Modular design makes servicing and replacement of coil or contacts simple and efficient.
- Industrial Compatibility: Ideal for motor control panels, process lines, automation panels, and electrical switchboards.
The 500F-EOD930 delivers rugged, reliable contactor performance for high-power, three-phase industrial control applications where NEMA-rated components are required.
