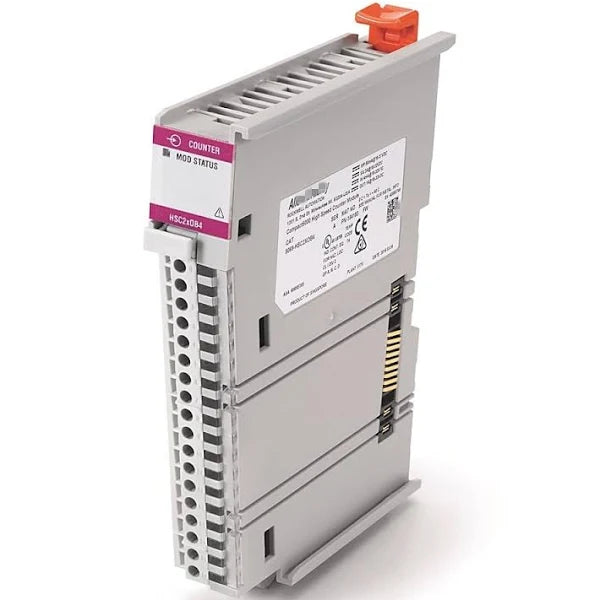

5069-HSC2XOB4 | Allen-Bradley 5069 Compact I/O High Speed Counter w/ Outputs
- Regular price
- $717.00
- Sale price
- $717.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 5069-HSC2XOB4
Description
The Allen-Bradley 5069-HSC2XOB4 is a Compact 5000 I/O High-Speed counter module. This module features Two (2) quadrature (ABZ) differential inputs and Four (4) sourcing output channels in single group, operating in 12/24VDC voltage category. This module may be connected to Single-ended Encoder, Differential Encoder and Discrete input devices.
Technical Specifications
| Brand | Allen-Bradley |
| Manufacturer | Rockwell Automation |
| Part Number | 5069-HSC2XOB4 |
| Dimensions | Height of 144.57 mm (5.69 in.); Width of 25.56 mm (1.01 in.) and Depth of 105.42 mm (4.15 in.) |
| Slot Width | 1 |
| Compatible DIN Rail | EN50022 - 35 x 7.5 mm (1.38 x 0.30 in.) |
| Installation | DIN Rail |
| Maximum surrounding air temperature | 60 °C (140 °F) |
| Operating Temperature | 0…60 °C (32…140 °F) |
| SA Power (Passthrough) | 9.95 A @ 10…32V DC |
| SA Power | 3 A @ 18…32V DC |
| MOD Power Passthrough | 9.55 A @ 18…32V DC |
| MOD Power | 50 mA @ 18…32V DC |
| No. of output groups | One (1) group |
| No. of outputs | Four (4) sourcing outputs channels |
| No. of Inputs | Two (2)Differential (ABZ) input |
| Module Type | High Speed Counter Module |
| Voltage Category | 12/24VDC |
| Enclosure Type | None (Open Style) |
| Number of Inputs | 2 Quadrature (ABZ) Differential Inputs |
| Number of Outputs | 1 Group of 4 (Sourcing) Outputs |
| Input Voltage Range | 3-32 Volts DC |
| Power Dissipation | 3 Watts |
Information About 5069-HSC2XOB4
The Allen-Bradley 5069-HSC2XOB4 is a Compact 5000 I/O module. This module is specifically a High-Speed counter module that is mainly used for industrial counting, totalizing and motion control applications. This module is a single slot module which support DIN rail mounting. It features Two (2) quadrature (ABZ) differential inputs and Four (4) sourcing output channels in single group, operating in 12/24VDC voltage category.
The 5069-HSC2XOB4 is compatible for use with a single-ended encoder such as the Allen-Bradley Allen-Bradley 845H Series single-ended encoders; Differential encoder including the Allen-Bradley 845H Series Differential Encoders. For discrete input devices, proximity sensors and Photoeelctric sensors are some of the compatible binary operating devices with this module.
The 5069-HSC2XOB4 operates when supplied with 12 / 24VDC voltage. The module’s counter input rating is 4 mA @ 3…32V DC; MOD Power of 50 mA @ 18…32V DC; maximum MOD power passthrough 9.55 A @ 18…32V DC; SA Power of 3 A @ 18…32V DC and maximum SA passthrough of 9.95 A @ 10…32V DC. Accepted input pulse width to this module is 125 ns with pulse separation of 100 ns.
This module has built-in diagnostics such as Output short circuit, overload and over temperature detection. The module’s reverse polarity detection is at 32VDC while the overvoltage protection is 36VDC with integral fuse protection.
This module requires a Logix controller or an Ethernet I/P communication adapter to properly function. When making signal connection to this module, supported Removable Terminal Block (RTB) are 5069-RTB18-SPRING and 5069-RTB18-SCREW. Recommended insulation stripping length are 10 mm (0.39 in.) when using a spring type RTB and 12 mm (0.47 in.) for a spring type RTB.
Manufacturer information
Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
