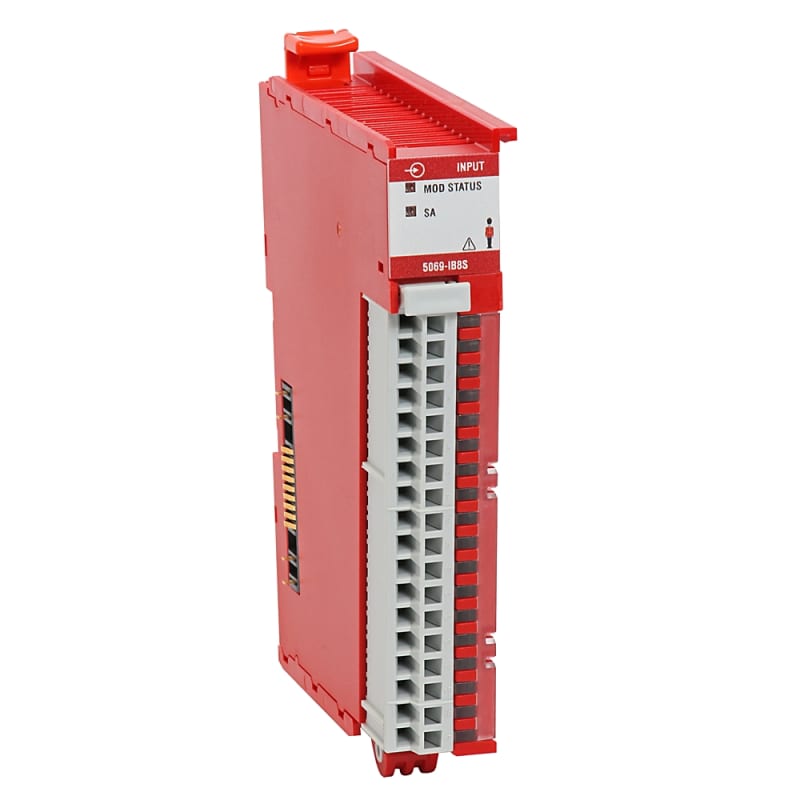

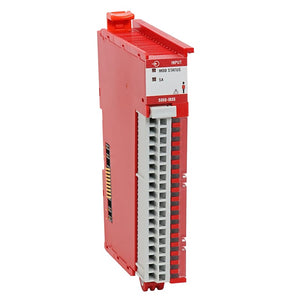

5069-IB8SK | Allen Bradley Compact 5000 Digital 8-point Safety Sinking Input Module
- Regular price
- $599.00
- Sale price
- $599.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 5069-IB8SK
Description
The 5069-IB8SK is a CompactLogix 5000 series safety input module from Allen-Bradley. It features 8 sinking digital inputs and offers enhanced diagnostics, conformal coating for environmental resistance, and selectable input delay times for flexible integration in safety-related applications.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Allen Bradley |
| Category |
PLCs/Machine Control
|
| Part Number | 5069-IB8SK |
| Subcategory | PLC Module/Rack |
| Series | CompactLogix 5069 |
| Input Channels | 8 (Sinking Type) |
| Voltage Range | 18–32 V DC |
| Input Delay | Selectable: 0–50 ms |
| Test Outputs | 2 test, 2 test/muting |
| Conformal Coating | Yes |
| Isolation Voltage | 250 V continuous |
| Operating Temperature | 0–60°C (32–140°F) |
| Storage Temperature | -40–84°C (-40–185°F) |
| Power Dissipation | 3.5 W (thermal: 4 W) |
| Mounting | DIN Rail or removable terminal block |
| Dimensions (H × W × D) | 138 mm × 22 mm × 105 mm |
| Standards Compliance |
PLe/SIL 3, UL, CE, RoHS |
| Weight | 0.37 lb (170 g) |
Information About 5069-IB8SK
The 5069-IB8SK is a safety-rated digital input module from the Allen-Bradley CompactLogix™ 5069 series. It operates on 24V DC and provides 8 sinking input channels designed to meet safety category requirements up to PLe (SIL 3). The module includes a conformal coating that protects against corrosive environments and supports applications with high reliability demands. It also includes two test outputs and two test/muting outputs, enabling detailed safety diagnostics and advanced control in demanding industrial environments.
Key Features:
- Safety-Rated Design: Supports safety applications up to PLe/SIL 3 with integrated diagnostics.
- 8 Digital Inputs: Sinking-type inputs operating in the 18–32V DC range.
- Selectable Input Delay: On/off delay configurable between 0–50 ms for flexible control.
- Test Output Channels: Includes 2 test outputs and 2 test/muting outputs for safety verification.
- Conformal Coated: Protects electronics from humidity, dust, and corrosive gases.
- DIN Rail Mountable: Easy installation with compact form factor (1-slot width).
- High Temperature Endurance: Operates from 0°C to 60°C (32°F to 140°F).
- Low Power Dissipation: Max dissipation of 3.5 W (thermal: 4 W).
- Robust Isolation: 250V continuous isolation rating for basic insulation.
- Field-Wiring Compatibility: Suitable for copper wiring and removable terminal block options.
The 5069-IB8SK delivers the reliability and precision required for safety-critical industrial automation systems.
