Part #: 5069-IF8 Manufactured by: Allen-Bradley

5069-IF8 | Allen-Bradley Compact I/O 8-Ch Current/Voltage Input Module

Regular price
$629.00
Sale price
$629.00
Regular price
Never Used Surplus
4 in Stock
Shipping calculated at checkout.
Product Overview
The Allen-Bradley CompactLogix 5069-IF8 exhibits 8 Differential Inputs and an Open-Style Enclosure.
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
IQElectro LLC BBB Business Review
warranty
Product comes with IQElectro 2-Year Warranty
Warranty for item #: 5069-IF8
IQElectro offers a complimentary 2-year warranty on all our products. This ensures that every purchase you make from IQElectro is a reliable and trustworthy investment for the future of your company. Warranty Terms
IQElectro is NOT an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

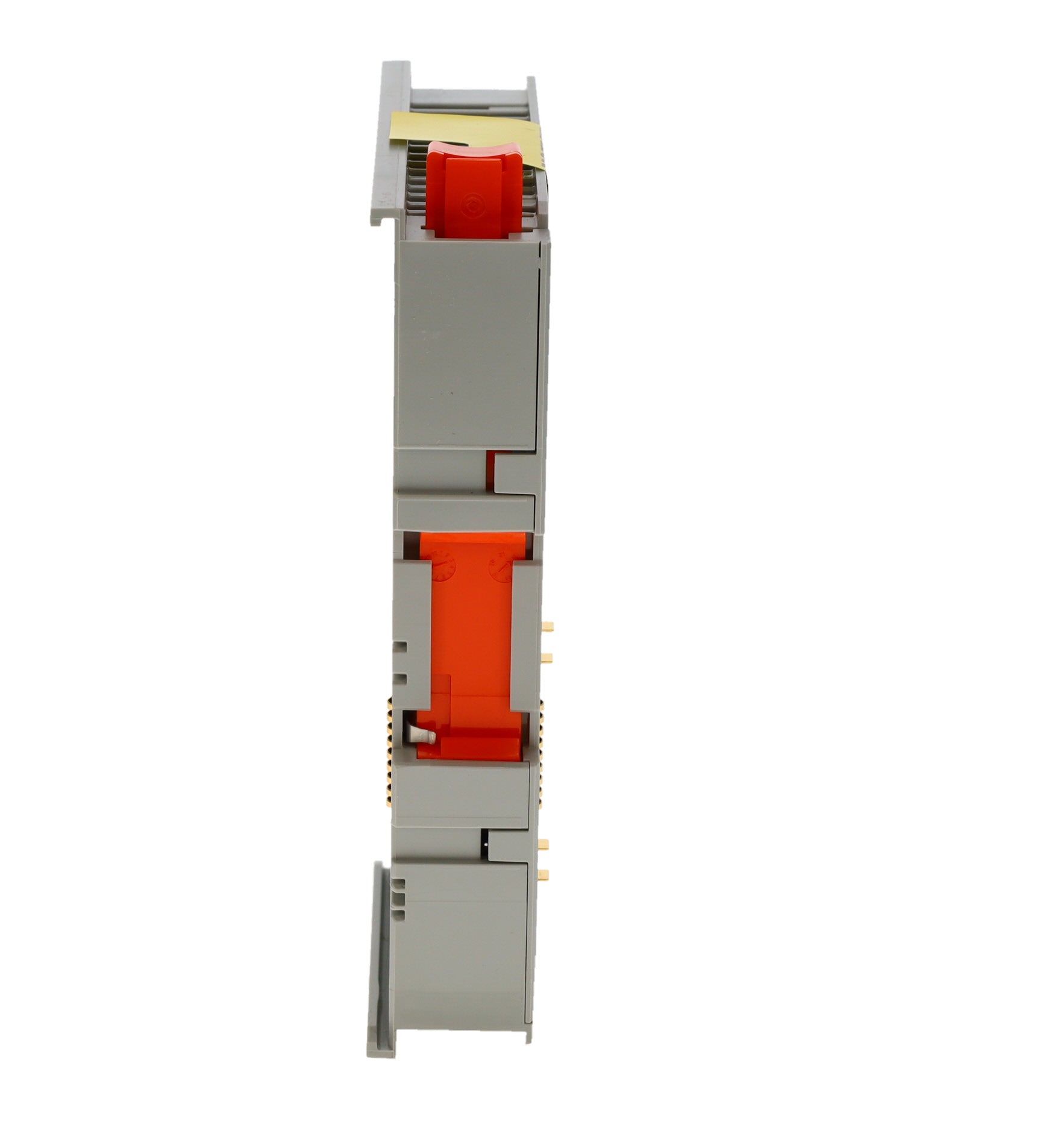

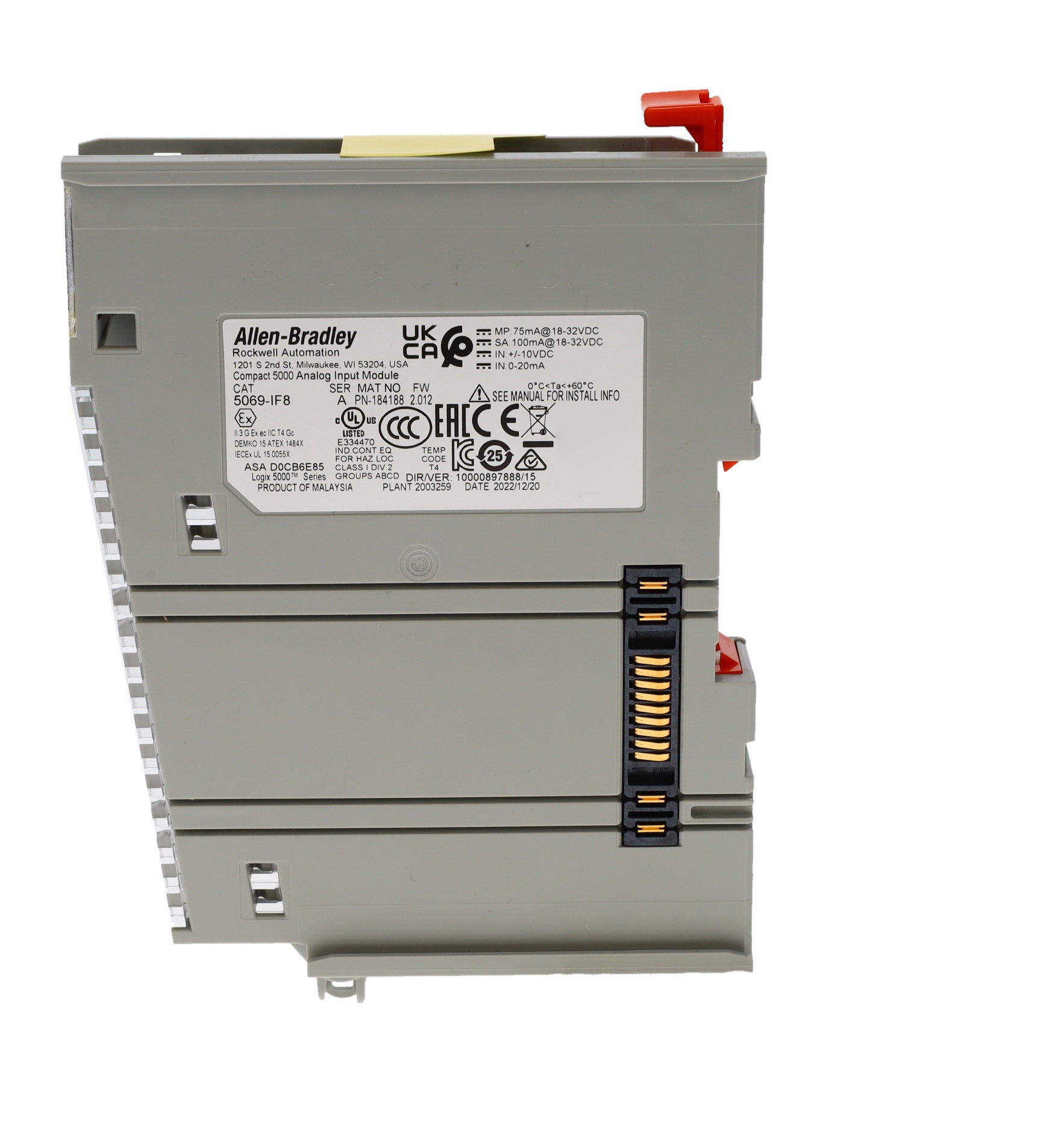

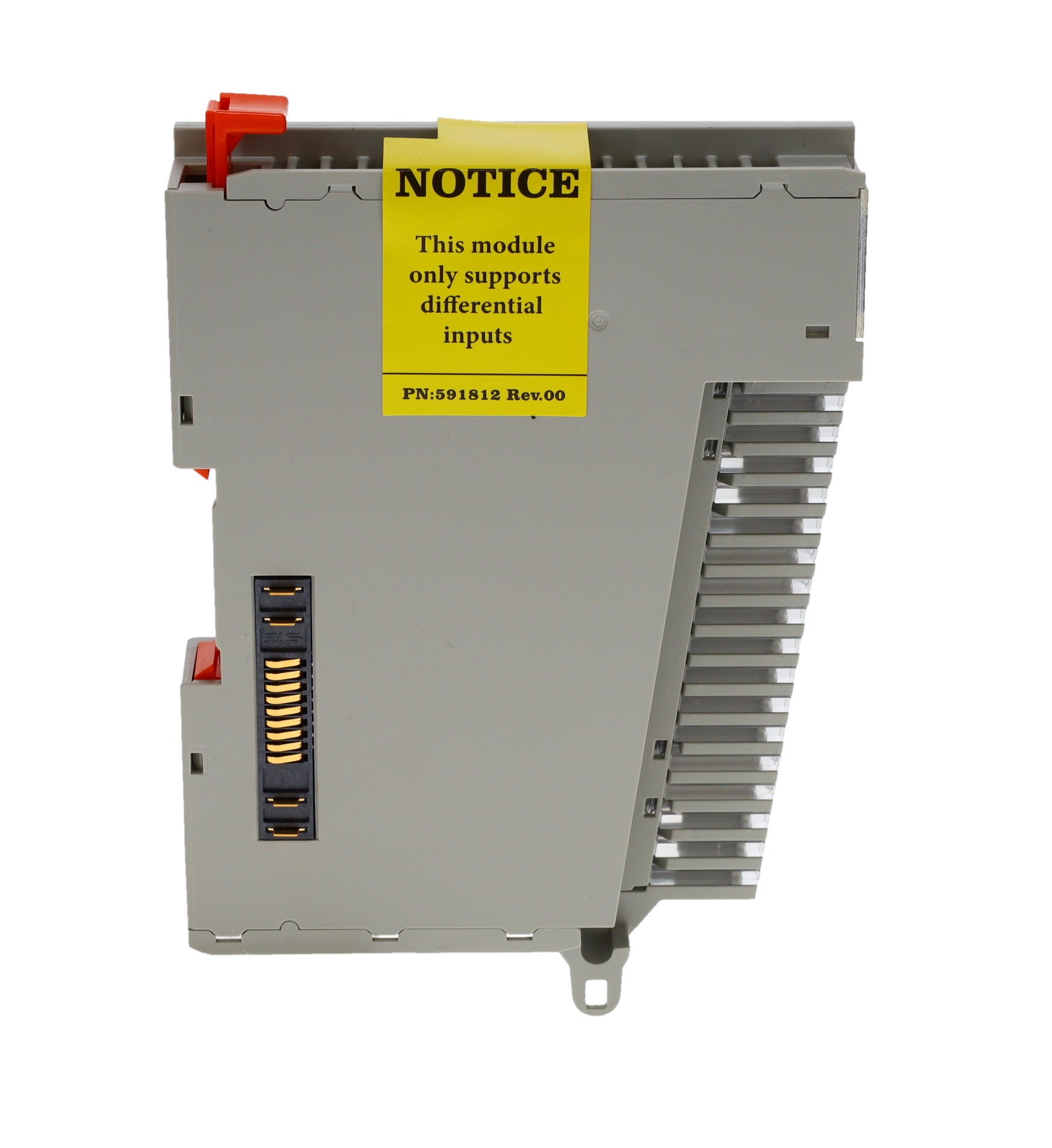

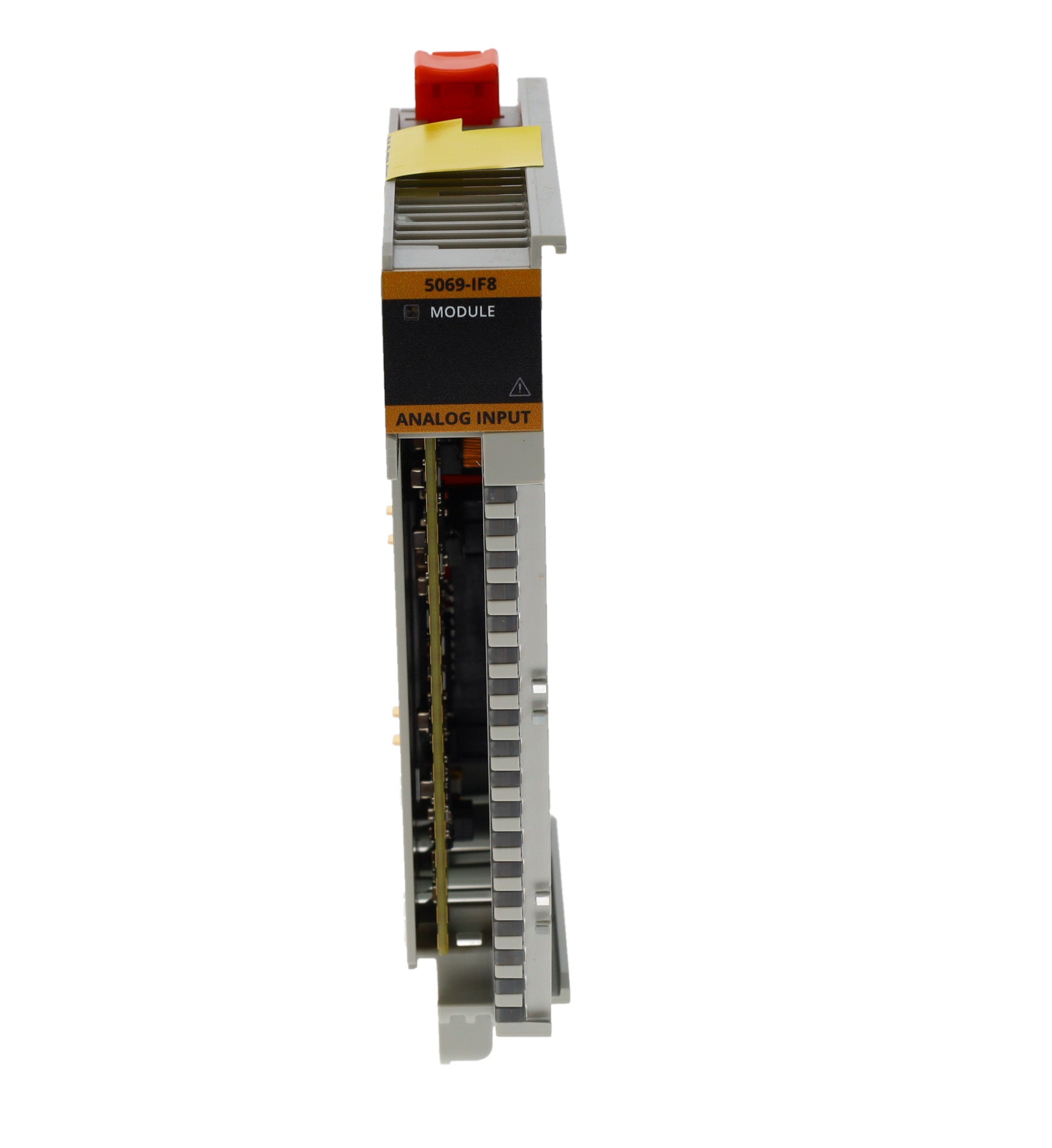

5069-IF8 | Allen-Bradley Compact I/O 8-Ch Current/Voltage Input Module
5069-IF8 | Allen-Bradley Compact I/O 8-Ch Current/Voltage Input Module
5069-IF8 | Allen-Bradley Compact I/O 8-Ch Current/Voltage Input Module
5069-IF8 | Allen-Bradley Compact I/O 8-Ch Current/Voltage Input Module
5069-IF8 | Allen-Bradley Compact I/O 8-Ch Current/Voltage Input Module
5069-IF8 | Allen-Bradley Compact I/O 8-Ch Current/Voltage Input Module
    5069-IF8 | Allen-Bradley Compact I/O 8-Ch Current/Voltage Input Module
    5069-IF8 | Allen-Bradley Compact I/O 8-Ch Current/Voltage Input Module
    5069-IF8 | Allen-Bradley Compact I/O 8-Ch Current/Voltage Input Module
    5069-IF8 | Allen-Bradley Compact I/O 8-Ch Current/Voltage Input Module
    5069-IF8 | Allen-Bradley Compact I/O 8-Ch Current/Voltage Input Module
    5069-IF8 | Allen-Bradley Compact I/O 8-Ch Current/Voltage Input Module
5069-IF8 | Allen-Bradley Compact I/O 8-Ch Current/Voltage Input Module
5069-IF8 | Allen-Bradley Compact I/O 8-Ch Current/Voltage Input Module
5069-IF8 | Allen-Bradley Compact I/O 8-Ch Current/Voltage Input Module
5069-IF8 | Allen-Bradley Compact I/O 8-Ch Current/Voltage Input Module
5069-IF8 | Allen-Bradley Compact I/O 8-Ch Current/Voltage Input Module
5069-IF8 | Allen-Bradley Compact I/O 8-Ch Current/Voltage Input Module
Return/Exchange within 30-Days.
If any product is damaged upon delivery, you may request an Exchange or Refund within 30 days of receiving your order.
2-3 Day Free Shipping
IQElectro provides free shipping within 2-3 days from the moment the order is placed on our website.

Product Description P/N: 5069-IF8

Description / Specifications

Description

The Allen-Bradley 5069-IF8 is a Compact 5000 analog input module. This module features Eight (8) differential analog input channels, configurable for Voltage and Current signals. It accepts Voltage signal ranges of ±10V; 0-10V and 0-5VDC and Input current range of 0-20 mA and 4-20 mA. This module uses Sigma-Delta conversion method, Two 24-bit multiplexed ADC.



Technical Specifications



Condition New / Never Used Surplus
Brand Allen-Bradley
Series Compact 5000 I/O
Part Number 5069-IF8
Manufacturer Rockwell Automation
Input notch filter (Hz) selections 5, 10 (50/60 Default), 15, 20, 50, 60, 100, 200, 500, 1000, 2500, 5000, 10000, 15625, 25000, 31250, 62500
Conversion method Sigma-Delta conversion method, Two 24-bit multiplexed ADC
Compatible Current signal 0-20 mA and 4-20 mA
Compatible Voltage signal ±10VDC; 0-10VDC; 0-5VDC
No. of Inputs Eight (8) differential inputs
Overvoltage protection, max ± 30V DC
Overcurrent protection, max ±30 mA
Open circuit detection time 2 seconds
Module Type Analog input module
Module Keying Electronic
Power Dissipation 2.1 Voltage Mode and 2.4 Current Mode
Enclosure Type None (Open Style)
Dimensions 5.4 x 0.9 x 4.2 in (138 x 22 x 105 mm)
Pulse Latching Supported Yes
Pattern Matching Supported Yes





Information About 5069-IF8

The Allen-Bradley 5069-IF8 is a Compact 5000 I/O module. This module is an analog input module that mainly features Eight (8) differential input channels. Compatible Voltage signal range is ±10VDC, 0-10VDC and 0-5VDC while applicable Current signal range is 0-20 mA and 4-20 mA.

The 5069-IF8 is typically used in interfacing analog sensors and transmitters. This module accepts the analog signal and converts the received data to digital information. Conversion is accomplished via the Sigma-Delta Two 24-bit multiplexed Analog to Digital Converter (ADC). Converted data is saved in IEEE 32-bit floating point data format. The converted digital data may be further processed to enable Onboard data alarming, Scaling to engineering units and Real-time channel sampling.

This module has a scan time of 625 µs per channel and 2.5 ms per group. It also features a selectable input notch filter with available selections of 5, 10 (50/60 Default), 15, 20, 50, 60, 100, 200, 500, 1000, 2500, 5000, 10000, 15625, 25000, 31250, 62500 Hz. These filter settings are typically used to linearize data especially input data that are erratic and rapidly changing within a short period of time. Additionally, this module is comtabile for use with a Highway Addressable Remote Transducer (HART) terminal. User only needs to add a 250 ? resistor into the current loop for HART transmitter compliance. This module has embedded overvoltage protection and open circuit detection. Open circuit detection is detected when signal level are below a specific level such as + full scale, < 2 s for voltage and 4…20 mA range, < 2 s.

The channel-to-channel common mode voltage of this module is +/- 10V. It also comes with a maximum overvoltage protection of +/- 30V DC at both the voltage and current modes and with a maximum overcurrent protection of +/- 30 mA in the current mode. This drive comes with 8 yellow/red I/O indicator LEDs and 1 green/red module indicator LEDs, it uses an open-type enclosure, and it is factory-calibrated. The MOD Power or the module bus power of this module has a voltage range and a Passthrough voltage range of 18-32V DC for both ranges, the maximum current is 75 mA, and the maximum current rating is 9.55 mA. The 5069-IF8 module has a sensor actuator (SA) Field Power voltage range of 18-32V DC, the Passthrough voltage range is 0-32V DC, the maximum Field Power current is 100 mA, and the module’s maximum current rating is 9.95 A. Its maximum power dissipation is 2.1 W at the voltage mode and 2.4 W at current mode, while the maximum thermal dissipations are 7.2 BTU/hour at the voltage mode and 8.2 BTU/hour at current mode. It also operates best at a temperature of 0-60 oC and it can be stored at a temperature of -40-85 oC.


Manufacturer information

Allen‑Bradley components, integrated control and information solutions are built for demanding industrial applications. We integrate control and information across the enterprise to make you as productive as possible.
