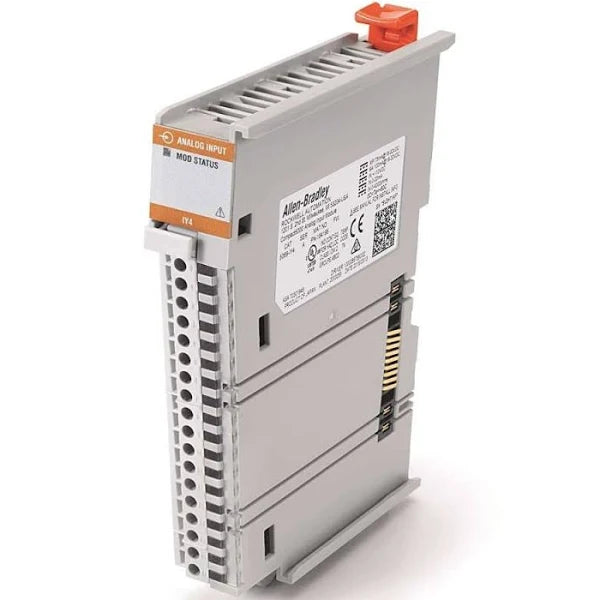

5069-IY4 | Allen-Bradley 5069 Compact I/O 4-Ch Current/Voltage/RTD/TC Input Module
- Regular price
- $430.00
- Sale price
- $430.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 5069-IY4
Description
The Allen-Bradley 5069-IY4 is a Compact 5000 analog input module with four differential input channels. It supports voltage, current, RTD, thermocouple, resistance, and millivolt signal types for flexible process monitoring.
Technical Specifications
| Condition | New / Never Used Surplus |
| Brand | Allen-Bradley |
| Manufacturer | Rockwell Automation |
| Part Number | 5069-IY4 |
| Scan time, per group | 2.5 ms |
| RTD input | 100, 200, 500, 1000 ? platinum, alpha=385; 100, 200, 500, 1000 ? platinum, alpha=3916; 120 ? nickel, alpha=672 100, 120, 200, 500 ? nickel, alpha=618; 10 ? copper 427 for RTD; |
| Thermocouple input | Type B, C, D, E, J, K, L (TXK/XK), N, R, S, T sensors |
| milivolt input | +/- 100 mV millivolt |
| Resistance input | 1-500 ?, 2-1000 ?, 4-2000 ? and 8-4000 ? |
| Module conversion method | Sigma-Delta,One 24-bit multiplexed ADC |
| Calibrated accuracy at 25 °C | Voltage 0.100% full scale Current 0.100% full scale RTD 0.100% full scale Thermocouple/millivolt 0.100% full scale |
| Accuracy drift with temperature | Voltage 0.200% full scale Current 0.300% full scale RTD 0.200% full scale Thermocouple/millivolt 0.200% full scale |
| Scan time, per channel | 625 µs |
| Module Type | Compact 5000 Analog Input module |
| Number of Inputs | 4 Differential Inputs |
| Input Voltage Range | +/- 10 Volts, 0-10 Volts, 0-5 Volts |
| Power Dissipation | 1.8 W Voltage Mode, 2.1 W Current Mode, 2.1 W RTD Mode, and 1.8 W Thermocouple/Milivolt Mode |
| Enclosure Type | None (Open Style) |
| Dimensions | 5.4 x 0.9 x 4.2 in (138 x 22 x 105 mm) |
| Pulse Latching Supported | Yes |
| Pattern Matching Supported | Yes |
| Series | A |
Information About 5069-IY4
The 5069-IY4 is part of the Compact 5000 I/O family from Allen-Bradley, engineered to provide accurate and versatile signal acquisition for industrial automation. With four configurable differential input channels, it supports multiple input ranges including ±10 V, 0–10 V, and 0–5 V for voltage; 0–20 mA and 4–20 mA for current; ±100 mV for millivolt signals; and resistance inputs up to 4000 Ω. It directly interfaces with RTDs and thermocouples, supporting a wide range of sensor types such as platinum, nickel, copper, and thermocouples B, C, D, E, J, K, L, N, R, S, and T. The module features a Sigma-Delta A/D converter with IEEE 32-bit floating point output, fast scan times of 625 µs per channel, and group scan time of 2.5 ms. Built-in protection against ±30 mA overcurrent and ±30 VDC overvoltage enhances reliability, making the 5069-IY4 ideal for precise measurement in demanding environments.
Key Features:
- Universal Input Capability: Four differential channels configurable for voltage, current, resistance, RTD, thermocouple, and millivolt signals, reducing the need for multiple module types.
- Voltage Input Range: Compatible with ±10 V, 0–10 V, and 0–5 VDC inputs, ensuring flexibility in monitoring standard industrial voltage signals.
- Current Input: Supports 0–20 mA and 4–20 mA inputs, allowing direct connection to industry-standard process transmitters and sensors.
- Resistance Measurement: Accepts resistance inputs across ranges of 1–500 Ω, 2–1000 Ω, 4–2000 Ω, and 8–4000 Ω for broad sensor compatibility.
- RTD Sensor Support: Connects directly to platinum, nickel, and copper RTDs with multiple alpha coefficients (385, 3916, 672, 618, 427), ensuring accurate temperature sensing.
- Thermocouple Input: Supports thermocouple types B, C, D, E, J, K, L (TXK/XK), N, R, S, and T, providing wide coverage for industrial thermal measurement.
- Millivolt Input: Accepts ±100 mV signals, enabling use with low-level sensors and specialized instrumentation.
The 5069-IY4 delivers the reliability and precision required for universal signal acquisition and industrial measurement in Compact 5000 systems.
Manufacturer information
Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
