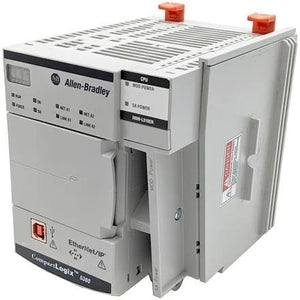

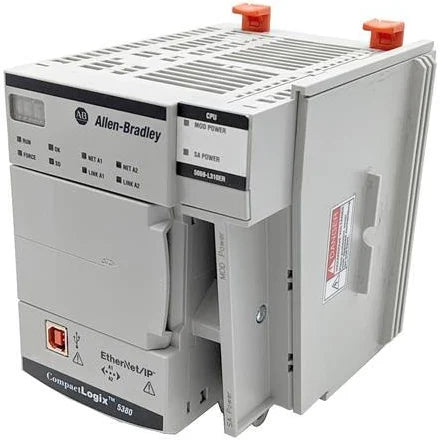

Part #: 5069-L310ER Manufactured by: Allen-Bradley
$1,467.00
$1,467.00
4 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The Allen-Bradley CompactLogix 5380 5069-L310ER exhibits 1 Megabyte Application Memory, 24 Ethernet/IP Nodes, 8 I/O, 0 Mot...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Do you need help?

Call our Sales Manager
phone
+1 (828) 222-3490
Mon./Sat.: 7:00AM - 8:00PM
Write to us now
email
sales@iqelectro.com
Mon./Sat.: 7:00AM - 12:00PM
warranty
IQElectro 2-Year Warranty
Warranty for Product #: 5069-L310ER
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: 5069-L310ER

Description / Specifications

Description

The Allen-Bradley 5069-L310ER is a CompactLogix 5380 controller designed for mid-range machine and process automation. It provides 1 MB of user memory, dual EtherNet/IP ports, and support for up to 16 local Compact 5000 I/O modules.





Technical Specifications

Brand Allen-Bradley
Manufacturer Rockwell Automation
Part Number 5069-L310ER
Programs supported 1000 per task
Controller Tasks supported 32 Tasks
No. of Axes 256
Maximum number of I/O modules supported Eight (8) 5069 I/O Modules
Non-Volatile memory 1784-SD2 card with 2 GB of available memory (shipped with controller) ; 1784-SDHC8 (8 GB), 1784-SDHC32 (32 GB),and 9509-CMSDCD4 (4 GB) CodeMeter CmCard card.
User Memory 1 MB Standard;
Supported topologies Linear, Star and Ring
Product Type 5380 CompactLogix controller
Product Family CompactLogix
Ethernet performance 10/100/1Gbps
Communication Ports Two (2) Ethernet I/P; One (1) USB
Module Type Controller
Application Memory 1 Megabyte
Ethernet/IP Nodes 24 Ethernet/IP Nodes
Supported Ethernet/IP Network Topologies Device Level Ring, Star, and Linear
I/O Expansion 8 I/O
Motion Axes 0 Motion Axes
Programming Languages Sequential Function Chart, Function Block Diagram, Structured Text, and Ladder Diagram
Dimensions 5.4 x 0.9 x 4.2 in (138 x 22 x 105 mm)
Pulse Latching Supported Yes
Pattern Matching Supported Yes
Series CompactLogix





Information About 5069-L310ER

The 5069-L310ER is part of the Allen-Bradley CompactLogix 5380 controller family, developed to deliver faster processing, high-speed communication, and scalability. This model offers 1 MB of memory, supporting up to 32 tasks and multiple programs for complex applications. Dual EtherNet/IP ports allow linear, star, or Device Level Ring (DLR) topologies, enhancing network reliability and system uptime. It supports up to 16 local Compact 5000 I/O modules and distributed I/O over EtherNet/IP, making it flexible for system expansion. Configured using Studio 5000 Logix Designer, the 5069-L310ER provides consistent programming and integration with other Logix controllers. Compact and DIN rail–mounted, it is designed for space-efficient control panels while maintaining robust industrial performance.

Key Features:

  • Design: CompactLogix 5380 controller for mid-range control applications.
  • Memory: 1 MB user memory, supporting up to 32 tasks.
  • Connectivity: Dual EtherNet/IP ports with support for linear, star, and DLR topologies.
  • I/O Capacity: Supports up to 16 local Compact 5000 I/O modules plus distributed I/O.
  • Performance: High-speed processing for demanding machine and process control.
  • Programming: Configured with Studio 5000 Logix Designer software.
  • Installation: DIN rail–mounted compact design for efficient panel integration.
  • Application Range: Suitable for packaging, conveyors, and mid-range industrial automation.

The 5069-L310ER delivers the speed, scalability, and reliability required for modern mid-sized industrial automation systems.



Manufacturer information

Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.

Frequently Asked Questions about 5069-L310ER
Question: What are the built-in communication ports of the 5069-L310ER?
Date Update:30/05/2025
Answer:
  • One (1) USB port for programming and diagnostics.
  • Two (2) Ethernet/IP ports supporting full duplex operation at 10 Mbps, 100 Mbps, and 1 Gbps.
  • These Ethernet ports support Linear, Star, and Device Level Ring topologies.
  • This allows for flexible network integration in industrial automation setups.
Question: What are the power requirements and voltage range of the 5069-L310ER?
Date Update:30/05/2025
Answer:

The module requires an external DC power supply with an input voltage range of 18–32V DC. This range allows it to operate reliably in industrial control cabinets with standard power distribution. It ensures the controller maintains stable performance even during voltage fluctuations. Proper wiring and voltage selection are essential for safe and efficient operation.

Question: What is the difference between 5069-L310ER and other CompactLogix controllers?
Date Update:30/05/2025
Answer:

The 5069-L310ER is a CompactLogix 5380 controller with 1 MB of user memory and two Ethernet/IP ports. It can handle up to eight local I/O modules and supports 32 tasks with 1000 programs per task. While similar controllers in the CompactLogix 5380 series may have different memory sizes or motion capabilities, the L310ER stands out for its balance of compact size and high-speed performance.

Question: How does the 5069-L310ER handle memory storage?
Date Update:30/05/2025
Answer:

The controller has 1 MB of user memory for program and tag data. It ships with a 2 GB non-volatile SD card (1784-SD2) to back up the project and logs. It also supports larger memory expansion cards, up to 32 GB, for enhanced storage needs. This ensures project integrity and quick recovery during maintenance.

Question: What does the 5069-L310ER support in terms of communication topologies?
Date Update:30/05/2025
Answer:

The 5069-L310ER supports Linear, Star, and Device Level Ring (DLR) topologies for industrial Ethernet networking. This makes it versatile for integration in various network designs. It ensures reliable communication even in systems requiring ring redundancy. This flexibility helps meet a range of industrial control system architectures.

IQElectro is not an authorized distributor.
IQElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
