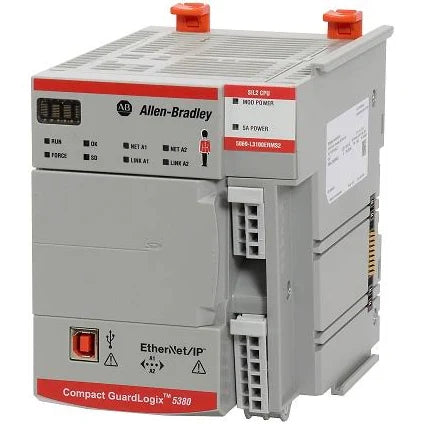

5069-L320ERMS2 | Allen-Bradley GuardLogix 5380 Safety Controller, 3MB
- Regular price
- $2,919.00
- Sale price
- $2,919.00
- Regular price
-
Do you need more quantity?
Product Description P/N: 5069-L320ERMS2
Description
The 5069-L320ERMS2 controller is an Allen-Bradley controller from the Compact GuardLogix 5380 SIL 2 controller series. It has 3 total MB of memory that is divided into 2 MB of user memory and 1 MB of safety memory. The 5069-L320ERMS2 controller is a safety integrity level 2 or SIL 2 type of controller. The 32 tasks that this controller can handle at a time include 1 safety task and 31 standard tasks. Additionally, the 5069-L320ERMS2 controller can handle 1000 programs per task.
Technical Specifications
Brand | Allen-Bradley |
Series | CompactLogix |
Part Number | 5069-L320ERMS2 |
Non-volatile memory | 2GB via 1784-SD2 (ships with the controller) |
Dimensions | 143.97 x 98.10 x 136.81 mm (5.67 x 3.86 x 5.39 in.) |
Programming Languages | Sequential Function Chart, Function Block Diagram, Structured Text, and Ladder Diagram |
CIP drive axes | 8 |
Motion Axes, maximum | 256 Motion Axes |
Integrated Motion | Yes |
Communication rate, USB | 12 Mbps |
Communication rate, Ethernet | 10 Mbps / 100 Mbps / 1 Gbps |
Communication Ports | 1 Type B 2.0 Full-Speed USB and 2 Ethernet/IP Ports |
Local I/O modules | 16 I/O modules |
Supported Ethernet/IP Network Topologies | Device Level Ring, Star, and Linear |
SIL Rating | SIL 2 |
No. of tasks | 31 Standard tasks; 1 Safety Task |
Safety Memory | 1 MB |
Application Memory | 2 Megabytes |
Module Type | Compact GuardLogix Controller |
Product Type | Controller |
Controller Tasks | 32 |
Programs/task | 1000 |
User Memory | 2 MB + 1 MB safety |
Ports | 2 Ethernet |
Port | 1 USB |
Network Nodes | 40 |
Information About 5069-L320ERMS2
The Allen-Bradley 5069-L320ERMS2 is a Compact GuardLogix controller. This device is specifically a safety controller that is capable of performing both standard and safety tasks at the same time. This controller is provided with dedicated 2 MB user memory for standard applications and 1 MB memory for safety application. The user memory may be complimented with a non-volatile memory wherein up to 32 GB may be installed. By default, the 5069-L320ERMS2 is installed with a 1784-SD2, 2 GB Secure Digital (SD) card.
To implement industrial communication, the 5069-L320ERMS2 supports Ethernet I/P protocol by default. Via the provided Two (2) Ethernet ports, this controller can communicate with partner devices at transmission speeds of 10 Mbps, 100 mbps and 1 Gbps communication speed. These ports may operate in dual IP mode wherein each port is assigned with individual IP address and Linear / DLR mode where the ports operate at a single IP address only. Up to 40 Ethernet I/P nodes can be connected to this controller and 32 socket connections are supported. This port cannot be used for industrial communication.
This Compact GuardLogix controller is rated Safety Integrity Level (SIL) 2. It can handle 32 tasks of continuous, periodic and event in nature. Of these tasks, 31 can be standard and 1 is a safety task. Each task is able to execute up to 1000 programs using all type of triggers available to the controller.
This controller also has 2 Ethernet ports that operate in a full-duplex setup at speeds of 10 Mbps, 100 Mbps, or 1 Gbps. The Allen-Bradley 5069-L320ERMS2 Ethernet controller can operate in either the Dual-IP Ethernet mode or in the Linear/DLR Ethernet mode. The topologies that it supports are the star topology, the ring topology, and the DLR topology. The mode and the topology that the 5069-L320ERMS2 controller uses depends on the applications that it is currently running. This controller can support up to 40 Ethernet/IP nodes at a time in a single application. Additionally, the 5069-L320ERMS2 controller can be programmed through 1 of several available programming languages which include the Ladder Diagram, the Structured Text, the Function Block Diagram, the Sequential Function Chart, and the Safety Task programming languages. Its built-in memory includes 2 MB of user memory and 1 MB of safety memory, and it can accommodate additional memory space if a non-volatile expansion memory module is installed.
Manufacturer information
Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
