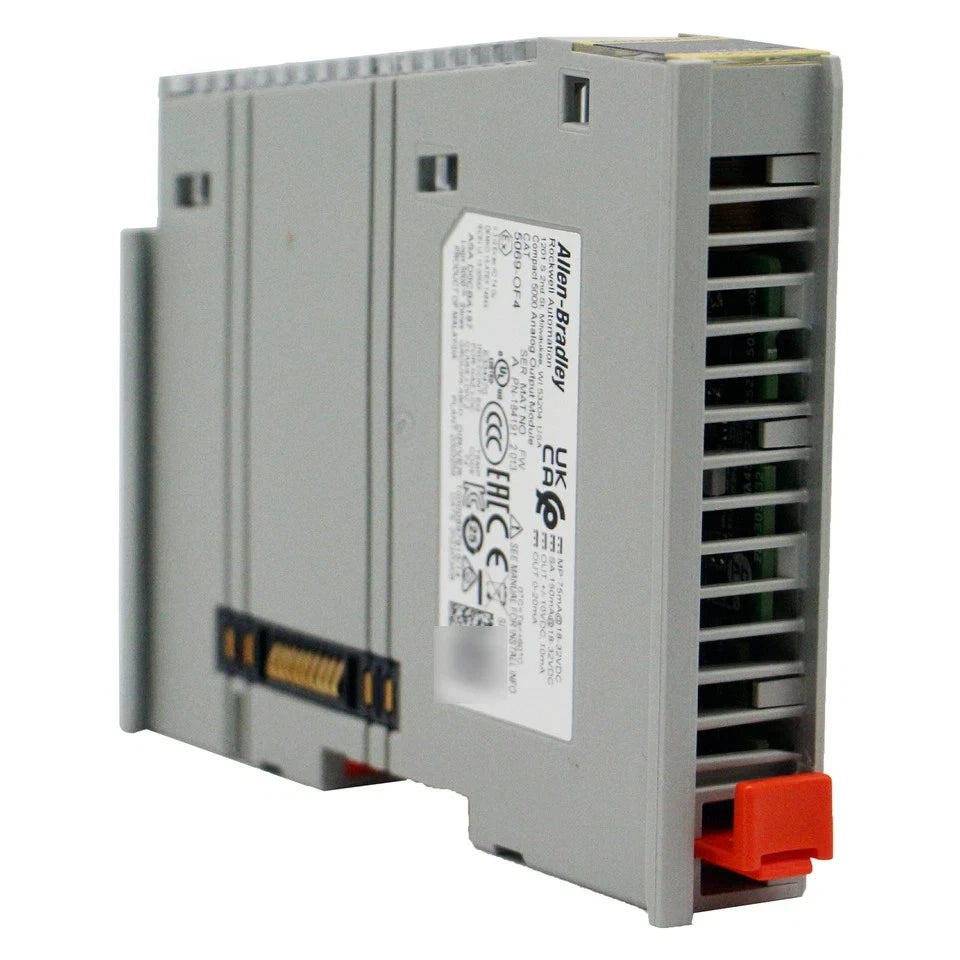

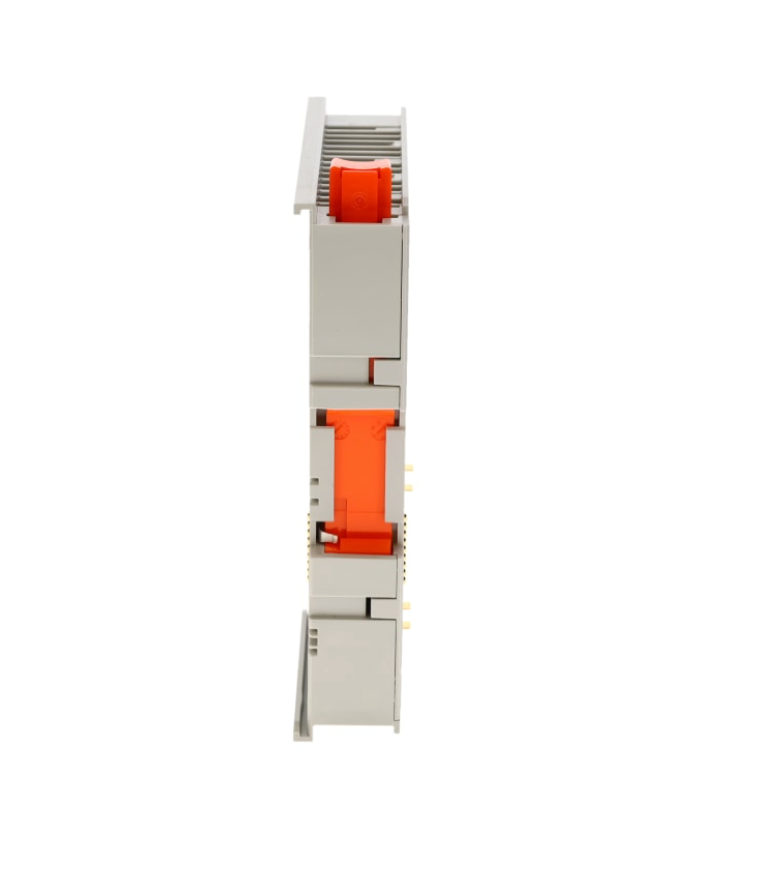

5069-OF8 | Allen-Bradley Compact I/O 8-Ch Current/Voltage Output Module
5069-OF8 | Allen-Bradley Compact I/O 8-Ch Current/Voltage Output Module
Part #: 5069-OF8 Manufactured by: Allen-Bradley

5069-OF8 | Allen-Bradley Compact I/O 8-Ch Current/Voltage Output Module

Regular price
$1,399.00
Sale price
$1,399.00
Regular price
Never Used Surplus
8 in Stock
Product Overview
The Allen-Bradley CompactLogix 5069-OF8 exhibits 8 Voltage or Current Outputs, 5.3 Watts Power Dissipation, and an Open-St...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
Product comes with IQElectro 2-Year Warranty
Warranty for item #: 5069-OF8
IQElectro International provides a 2-year warranty on every product we offer. Our complimentary 2-year warranty ensures that every IQElectro purchase is a trustworthy and reliable investment in the future of your company.
IQElectro is NOT an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
5069-OF8 | Allen-Bradley Compact I/O 8-Ch Current/Voltage Output Module
    5069-OF8 | Allen-Bradley Compact I/O 8-Ch Current/Voltage Output Module
5069-OF8 | Allen-Bradley Compact I/O 8-Ch Current/Voltage Output Module
Return/Exchange within 30-Days.
If any product is damaged upon delivery, you may request an Exchange or Refund within 30 days of receiving your order.
2-3-Day Free Shipping
"IQElectro provides free shipping within 2-3 days from the moment the order is placed on our website.

Product Description P/N: 5069-OF8

Description / Specifications

Description

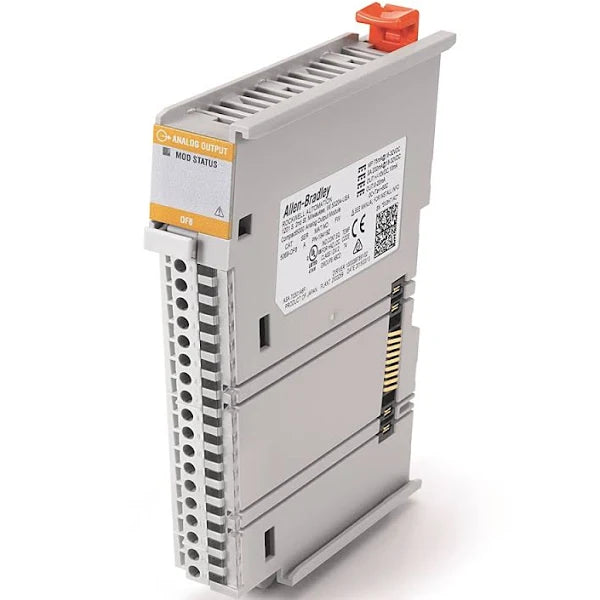

The Allen-Bradley 5069-OF8 is a Compact 5000 analog output module. This module features Eight (8) analog output channels, configurable for Voltage and Current signals. It delivers output Voltage signal ranges of ±10V; 0-10V and 0-5VDC and output Current range of 0-20 mA and 4-20 mA. This module uses R-Ladder DAC, monotonicity with no missing codes with 160bit resolution.



Technical Specifications



Brand Allen-Bradley
Series Compact 5000 I/O
Part Number 5069-OF8
MOD Power Passthrough, max 9.55 A @ 18…32V DC
Open circuit detection Current mode only
Resolution 16 bits across ± 10.5V - 320 µV/bit 16 bits across 10.5V - 160 µV/bit 16 bits across 5.25V - 80 µV/bit 16 bits across 21 mA - 320 nA/bit
Conversion time per channel 25 µs
Conversion method R-Ladder DAC, monotonicity with no missing codes
Output Current signal 0-20 mA and 4-20 mA
Output Voltage signal ±10VDC; 0-10VDC; 0-5VDC
No. of Inputs Eight (8) channels
Data format IEEE 32-bit floating point
Analog output ratings +/–10V DC, 0…20 mA per channel
MOD Power 75 mA @ 18…32V DC
SA Power 250 mA @ 18…32V DC
Manufacturer Rockwell Automation
Module Type Analog output module
SA Power Passthrough, max 9.95 A @ 18…32V DC
Number of Outputs 8 Voltage or Current Outputs
Output Voltage Range +/- 10 Volts, 0-10 Volts, 0-5 Volts
Power Dissipation 5.3 Watts
Enclosure Type None (Open Style)
Dimensions 5.4 x 0.9 x 4.2 in (138 x 22 x 105 mm)
CIP Sync Supported Yes
Pattern Matching Supported Yes





Information About 5069-OF8

The Allen-Bradley 5069-OF8 is a Compact 5000 analog output module. This module is compatible for use with CompactLogix 5000 controllers as local and distributed I/O modules and with ControlLogix controller as Distributed I/O modules only.

The 5069-OF8 is provided with Eight (8) analog output channels. Each channel is configurable for Voltage and Current output signals. Output signals include ± 10VDC, 0-10VDC and 0-5VDC for Voltage and 0-20 mA and 4-20 mA for Current signals. It has resolution of 16 bits across ± 10.5V - 320 µV/bit; 16 bits across 10.5V - 160 µV/bit; 16 bits across 5.25V - 80 µV/bit and 16 bits across 21 mA - 320 nA/bit. This module is capable of detecting open circuit when operating in Current mode and detect short-circuit when operating in Voltage mode. This module converts digital data back to analog data for use in actual process via the built-in R-Ladder Digital to Analog (DAC) converter, monotonicity with no mossing codes. This module has a conversion time per output channel of 25 µs and scan time of 1.0 ms for channels 0-3 and 2.0 ms for channels 4-7.

The 5069-OF8 may be used to drive and actuate modulating devices such as valves, Variable Frequency Drives (VFD), Dampers and other actuators. It may also be used to re-transmit signals to receiving elements such as panel meters, data loggers and recorders. This module may also be linked with the partner controller’s Proportional + Integral + Derivative (PID) controller to implement manual and fully automatic control of an analog control loop.

The 5069-OF8 module has output voltage ranges of +/- 10V, 0-10V, and 0-5V and output current ranges of 0-20 mA and 4-20 mA. It has a MOD power bus voltage range and a Passthrough voltage range of 18-32V DC for both voltages, a maximum current of 75 mA, and a maximum current rating of 9.55 A. Its sensor actuator or SA Field Power voltage range and Power bus Passthrough voltage range are 18-32V DC for both voltage ranges, its maximum current rating is 9.95 A, and its maximum Field Power current is 250 mA. The 5069-OF8 module also has a maximum thermal dissipation of 18.1 BTU/hour, as well as a maximum power dissipation of 5.3 W. This module has resolutions of 16 bits across ± 10.5V - 320 µV/bit, of 16 bits across 10.5V - 160 μV/bit, of 16 bits across 5.25V - 80 µV/bit, and of 16 bits across 21 mA - 320 nA/bit. Its maximum inductive load at current mode is 1 mH and its maximum capacitive load at voltage mode is 1 µF. Its drive capabilities are a maximum of 500 ? for the current and a minimum 1000 ? for the voltage. The 5069-OF8’s maximum overvoltage protection is 32V DC.
