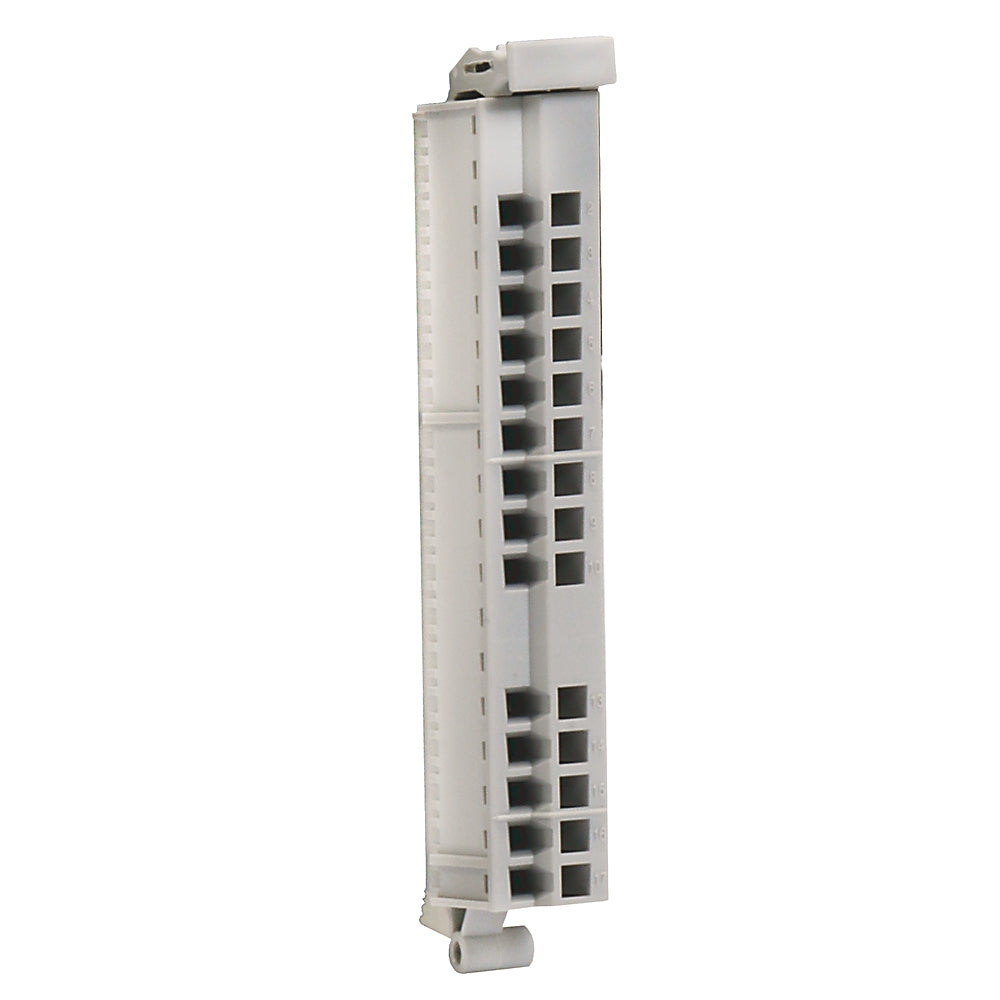

5069-RTB14CJC-SPRING | Allen Bradley Terminal Block
- Regular price
- $182.00
- Sale price
- $182.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 5069-RTB14CJC-SPRING
Description
The Allen-Bradley 5069-RTB14CJC-SPRING is a 14-point terminal block with a spring clamp connection. It is designed for use with CompactLogix 5069 I/O modules, featuring an integrated cold junction compensation (CJC) sensor for precise temperature input applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Allen Bradley |
| Category | Panel Accessories |
| Part Number | 5069-RTB14CJC-SPRING |
| Subcategory |
Terminal Strip Wiring
|
| Weight | 0.05 kgs |
| Number of Pins | 14 Pins |
| Number of Outputs | 4 Form C (SPDT) |
| Output Voltage Range | 5-264 Volts AC or 5-125 Volts DC |
| Power Dissipation | 2.6 Watts |
| Dimensions | 5.4 x 0.87 x 4.2 in (138 x 22 x 105 mm) |
| Temperature Rating | 0 - 60 °C |
Information About 5069-RTB14CJC-SPRING
The Allen-Bradley 5069-RTB14CJC-SPRING is a 14-point terminal block designed for use with CompactLogix 5069 I/O modules. This terminal block features spring clamp connections, making it easier to connect wires securely without the need for screwdrivers. It also includes cold junction compensation (CJC) for accurate temperature measurements in thermocouple applications.
Key Features and Specifications
- Model: 5069-RTB14CJC-SPRING
- Type: 14-point terminal block
- Connection Type: Spring clamp, no screwdrivers needed
- Cold Junction Compensation (CJC): Included for accurate thermocouple measurements
- Compatibility: Designed for use with CompactLogix 5069 I/O modules
- Applications: Ideal for connecting field wiring in industrial automation systems, particularly for temperature measurement with thermocouples
Benefits
- Easy Installation: Spring clamp connections allow for quick and secure wiring.
- Accurate Temperature Measurement: Cold junction compensation ensures reliable thermocouple input readings.
- Durability: Built for use in harsh industrial environments with robust construction.
Applications
- Industrial Automation: Suitable for connecting field devices in control systems.
- Temperature Monitoring: Ideal for thermocouple-based temperature measurement systems.
The 5069-RTB14CJC-SPRING terminal block is designed to simplify wiring and improve accuracy in temperature measurement applications, making it a valuable component for industrial control systems.
