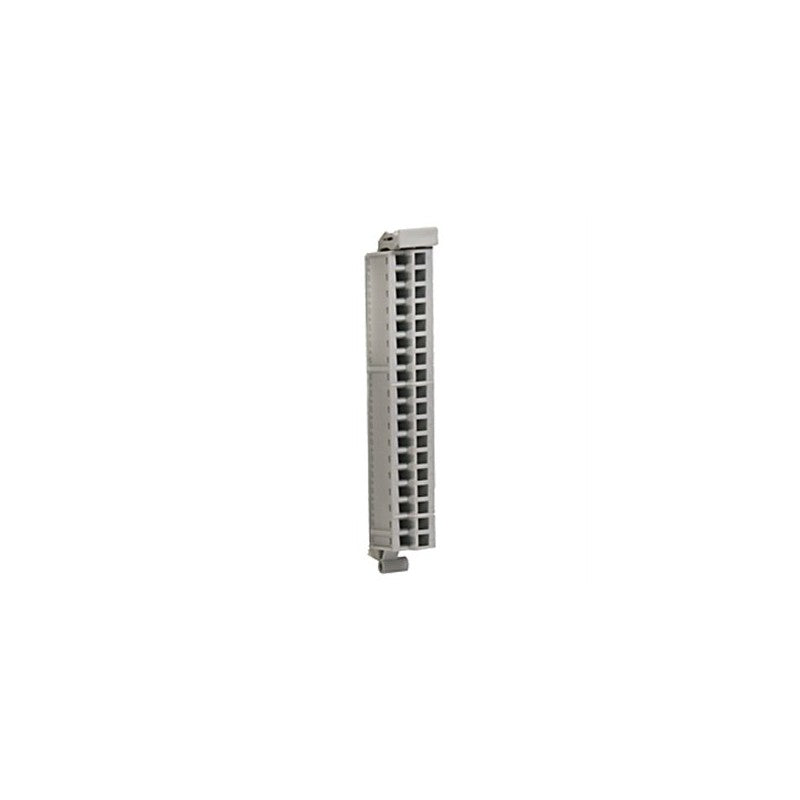

5069-RTB18-SPRING | Allen Bradley Spring Terminal Block
- Regular price
- $87.00
- Sale price
- $87.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 5069-RTB18-SPRING
Description
The Allen-Bradley 5069-RTB18-SPRING is a Spring Terminal Block with 18 terminals, designed for CompactLogix 5069 I/O systems. It offers secure, tool-free wire connections, simplifying installation and maintenance in industrial automation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Allen Bradley |
| Category | Panel Accessories |
| Part Number | 5069-RTB18-SPRING |
| Subcategory |
Terminal Blk/Strip Wiring Dev
|
| Weight | 0.09 lbs |
| Temperature Rating | 0 - 60 degrees C |
| Type | Removable, 18-Pin |
| Voltage Rating | 300V AC |
| Current Rating | 10A maximum |
| Wire Size | Supports 0.5-1.5 mm² (22-16 AWG) solid or stranded copper wire |
| Wire Insulation | Rated at 105°C or higher |
| Maximum Wire Diameter | 2.9 mm (including insulation) |
| Connection | Single wire connection only |
Information About 5069-RTB18-SPRING
The Allen-Bradley 5069-RTB18-SPRING is a Spring Terminal Block designed for use with CompactLogix 5069 I/O systems, providing reliable and secure wiring connections. This terminal block supports high-density connections and ensures efficient performance in industrial automation setups.
Key Features:
- Model: 5069-RTB18-SPRING
- Type: Compact I/O Spring Clip Terminal Block
- Pins: 18 terminals
- Voltage Rating: Up to 300V AC
- Current Rating: 10A maximum per terminal
- Wire Compatibility:
- Wire size: 0.5-1.5 mm² (22-16 AWG)
- Supports solid or stranded copper wires
- Rated for 105°C or higher insulation
- Maximum diameter (including insulation): 2.9 mm
- Connection Type: Spring clip, tool-free single wire connection
- Construction: Durable and compact design for industrial environments
- Quantity: 1 per package
- Applications: Suitable for CompactLogix 5069 I/O systems in automation environments requiring reliable and easy-to-maintain connections
Applications:
- Industrial Automation: Facilitates secure wiring for I/O modules in CompactLogix systems
- High-Density Wiring: Ideal for applications requiring multiple connections in a compact space
- Quick Installation: Enables tool-free, fast wiring for efficient system setup
The Allen-Bradley 5069-RTB18-SPRING is a robust solution for industrial wiring, offering convenience, reliability, and compatibility with modern automation systems.
