Product Description P/N: 5069-RTB64-SCREW

Description / Specifications

Description

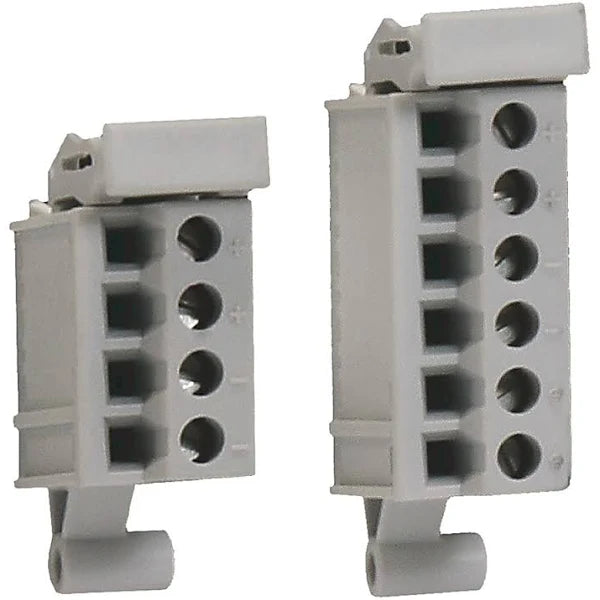

The Allen-Bradley 5069-RTB64-SCREW is a screw-type Power Terminal RTB (Removable Terminal Block) kit designed for use with CompactLogix 5069 I/O modules. This kit includes both the 5069-RTB4-SCREW and 5069-RTB6-SCREW terminal blocks, providing secure screw-clamp connections for field wiring. Engineered for the high-performance Compact 5069 platform, these RTBs deliver reliable connectivity, proper signal routing, and safe termination in demanding industrial control applications.




Technical Specifications

Condition New / Never Used Surplus
Brand Allen-Bradley
Manufacturer Rockwell Automation
Series Compact 5069 I/O
Part Number 5069-RTB64-SCREW
Product Type Power Terminal RTB Kit
Module Type Removable Terminal Block (RTB)
Terminal Types Included 5069-RTB4-SCREW & 5069-RTB6-SCREW
Number of Pins 4 Pins & 6 Pins
Output Type 4 Form C (SPDT)
Output Voltage Range 5–264V AC / 5–125V DC
Power Dissipation 2.6 W
Enclosure Rating Open Style
CIP Sync Support Yes
Pattern Matching Support Yes
Dimensions 5.4 × 0.87 × 4.2 in (138 × 22 × 105 mm)
Weight 0.39 lb (175 g)





Information About 5069-RTB64-SCREW

The Allen-Bradley 5069-RTB64-SCREW is part of the Compact 5069 I/O family, a high-speed, high-performance modular I/O system used in modern automation architectures. This RTB kit connects field wiring to 5069 Compact I/O modules, supporting up to 31 I/O modules in a single system. With a compact open-style design, these RTBs provide straightforward installation and easy access for maintenance. The 5069-RTB64-SCREW also supports CIP Sync for precise time synchronization across the control architecture and pattern matching functionality for advanced control applications.

Key Features:

  • Includes 5069-RTB4-SCREW and 5069-RTB6-SCREW terminal blocks
  • Secure screw-style field wiring
  • Supports up to 31 modules in a Compact 5069 I/O system
  • 4 Form C (SPDT) outputs
  • Wide AC/DC signal voltage support
  • CIP Sync compatible for precise system timing
  • Pattern matching supported
  • Open-style enclosure for easy access and installation
  • Reliable wiring interface for CompactLogix 5069 I/O modules

This terminal kit is essential for proper wiring termination, system reliability, and safe operation of 5069 Compact I/O hardware.
