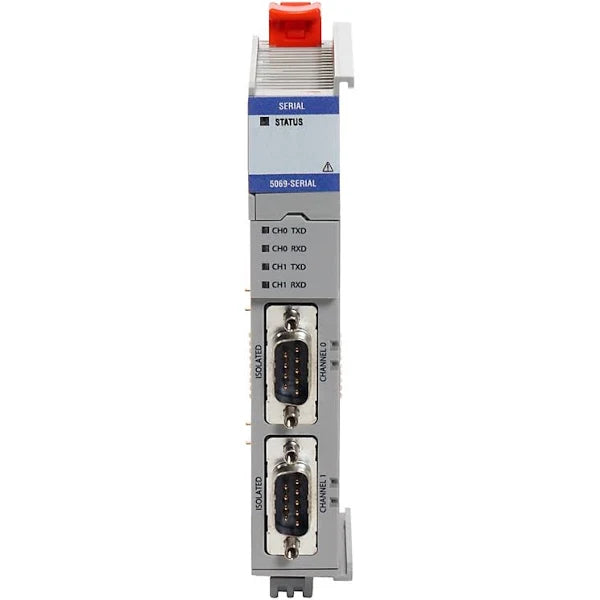

5069-SERIAL | Allen-Bradley Serial Interface Module for Compact 5000 I/O

The 5069-SERIAL module is designed to facilitate serial communication in industrial control systems. It enables Compact 5000 I/O platforms to connect with legacy or external devices using RS232C, RS422, or RS485 interfaces. The module supports protocols such as Modbus RTU/ASCII, DF1, DH-485, and Generic ASCII, making it suitable for a wide range of applications. It allows seamless integration between PLCs and third-party equipment like sensors, drives, and displays. This module enhances system flexibility and data interchange in automation environments.

The module supports a wide range of industrial communication protocols, including Modbus RTU, Modbus ASCII, DF1, DH-485, and Generic ASCII. This broad compatibility makes it suitable for interfacing with both modern and legacy serial devices. The support for ASCII allows basic text-based communication, while Modbus and DF1 are used for structured control communication. These protocols are essential for process monitoring, data logging, and equipment interfacing. The module’s flexibility ensures it can be tailored for many application scenarios.

Yes, the 5069-SERIAL module is fully compatible with CompactLogix controllers that support the Compact 5000 I/O architecture. It seamlessly integrates into the local chassis and communicates through the backplane. Users can configure the module and assign communication protocols via Studio 5000 software. This tight integration ensures fast data exchange and easy diagnostic access. The CompactLogix platform benefits from the module’s support for legacy serial protocols, broadening device connectivity options.

Yes, each of the two channels can be independently configured to operate using different communication protocols. For example, Channel 1 can use Modbus RTU while Channel 2 uses DF1 or ASCII. This feature makes the 5069-SERIAL module exceptionally flexible for systems with mixed serial device requirements. The configuration is managed through the controller's programming environment. However, each channel supports only one protocol at a time during operation.

Yes, as part of the Compact 5000 I/O series, the 5069-SERIAL module supports hot-swapping under appropriate conditions. This means it can be inserted or removed from the system without shutting down the controller, assuming the I/O system is designed to handle this operation. Hot-swapping improves system uptime and reduces maintenance downtime. However, safety precautions and appropriate software configurations should always be followed. It’s recommended to consult the module's user manual for detailed instructions on hot-swapping procedures.

Yes, the Allen-Bradley 5069-SERIAL module is currently in active production and part of the Compact 5000 I/O product line. It is a modern interface designed to provide serial communication capabilities within Logix-based architectures. Rockwell Automation continues to support and supply this module for industrial applications. Its ongoing availability ensures long-term support and compatibility with current automation systems. For lifecycle status updates, you may refer to Rockwell's Product Lifecycle Status Tool.
