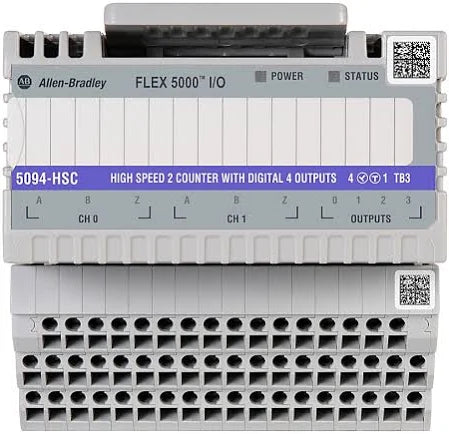

5094-HSC | Allen-Bradley Speed Counter Module
5094-HSC | Allen-Bradley Speed Counter Module

5094-HSC | Allen-Bradley Speed Counter Module

Part #: 5094-HSC Manufactured by: Allen-Bradley
Regular price
$2,419.00
Sale price
$2,419.00
Regular price
4 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The Allen-Bradley 5094-HSC Flex 5000 module is a high-speed counter and encoder interface designed for industrial automati...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: 5094-HSC
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
5094-HSC | Allen-Bradley Speed Counter Module
    5094-HSC | Allen-Bradley Speed Counter Module
5094-HSC | Allen-Bradley Speed Counter Module

Product Description P/N: 5094-HSC

Description / Specifications

Description

The Allen-Bradley 5094-HSC Flex 5000 module is a high-speed counter and encoder interface designed for industrial control systems. It supports 2/4 channels with quadrature (ABZ) differential inputs and 4 sourcing outputs, facilitating precise counting and encoding capabilities in automation applications.

Technical Specifications

Brand

Allen-Bradley

Part Number

5094-HSCXT

Module Type

High-speed Counter Module

On-state voltage, min

18V DC

On-state voltage, nom

24V DC

On-state voltage, max

32V DC

On-state voltage drop, max

< 0.3V DC

On-state current, min

3 mA

Off-state voltage, max

1.5V

Off-state current, max

1 mA

Input ratings (IN), max

8 mA per channel @ 18...32V DC

Output ratings (OUT)

1 A @ 18...32V DC per channel, 3 A per module

Pulse width, min

125 ns

Pulse separation, min

100 ns





Information About 5094-HSC

The Allen-Bradley 5094-HSC Flex 5000 module is a specialized component designed for high-speed counting and encoding tasks within industrial automation systems. It supports either 2 or 4 channels, providing flexibility in configuration based on application requirements. Specifically, it features 2 Quadrature (ABZ) differential inputs, ensuring precise signal processing from external encoders or sensors.

The module ensures robust performance with a minimal pulse width of 125 nanoseconds and precise pulse separation of 100 nanoseconds, enabling accurate counting and timing operations even in high-speed applications. Its sourcing outputs support up to 1 ampere per channel and aggregate to 3 amperes per module, facilitating effective control over connected devices or actuators.

Designed for seamless integration into Allen-Bradley control systems, the 5094-HSC Flex 5000 module is suitable for diverse industrial environments requiring reliable counting and encoding capabilities. It enhances operational efficiency by providing real-time data acquisition and processing, essential for applications in manufacturing, packaging, and material handling.



Manufacturer information

Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.

IQElectro is not an authorized distributor.
QElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
Description / Specifications

Description

The Allen-Bradley 5094-HSC Flex 5000 module is a high-speed counter and encoder interface designed for industrial control systems. It supports 2/4 channels with quadrature (ABZ) differential inputs and 4 sourcing outputs, facilitating precise counting and encoding capabilities in automation applications.

Technical Specifications

Brand

Allen-Bradley

Part Number

5094-HSCXT

Module Type

High-speed Counter Module

On-state voltage, min

18V DC

On-state voltage, nom

24V DC

On-state voltage, max

32V DC

On-state voltage drop, max

< 0.3V DC

On-state current, min

3 mA

Off-state voltage, max

1.5V

Off-state current, max

1 mA

Input ratings (IN), max

8 mA per channel @ 18...32V DC

Output ratings (OUT)

1 A @ 18...32V DC per channel, 3 A per module

Pulse width, min

125 ns

Pulse separation, min

100 ns





Information About 5094-HSC

The Allen-Bradley 5094-HSC Flex 5000 module is a specialized component designed for high-speed counting and encoding tasks within industrial automation systems. It supports either 2 or 4 channels, providing flexibility in configuration based on application requirements. Specifically, it features 2 Quadrature (ABZ) differential inputs, ensuring precise signal processing from external encoders or sensors.

The module ensures robust performance with a minimal pulse width of 125 nanoseconds and precise pulse separation of 100 nanoseconds, enabling accurate counting and timing operations even in high-speed applications. Its sourcing outputs support up to 1 ampere per channel and aggregate to 3 amperes per module, facilitating effective control over connected devices or actuators.

Designed for seamless integration into Allen-Bradley control systems, the 5094-HSC Flex 5000 module is suitable for diverse industrial environments requiring reliable counting and encoding capabilities. It enhances operational efficiency by providing real-time data acquisition and processing, essential for applications in manufacturing, packaging, and material handling.



Manufacturer information

Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
