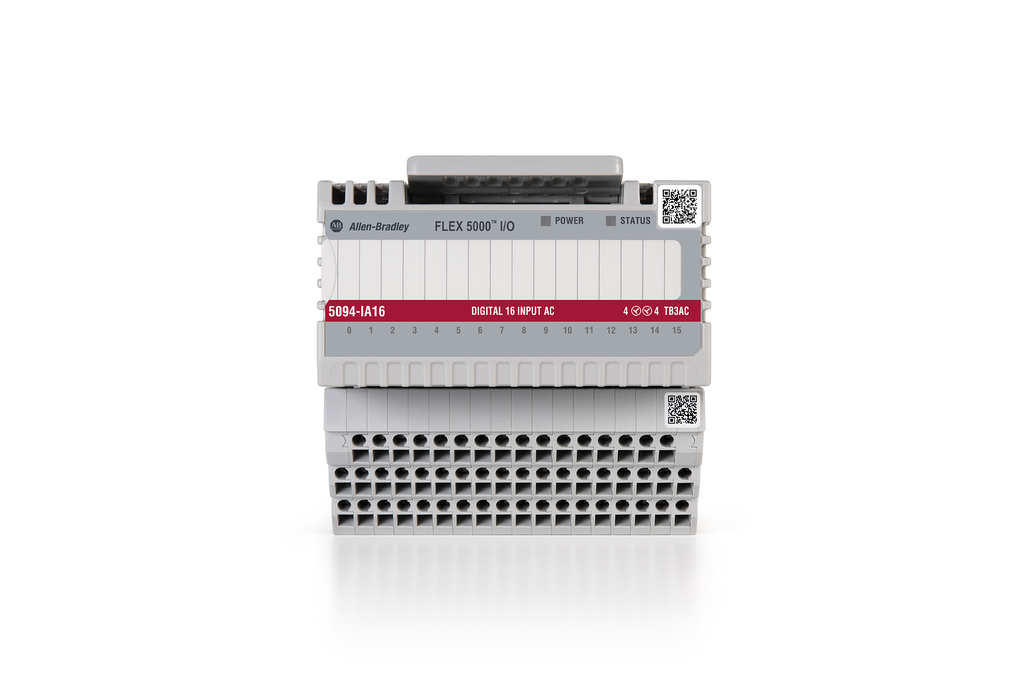

5094-IA16 | Allen-Bradley FLEX 5000 Digital 16 Input
- Regular price
- $474.00
- Sale price
- $474.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 5094-IA16
Description
The 5094-IA16 is a 16-point digital input module from the FLEX 5000 I/O series, designed to receive 120V AC input signals in industrial control systems.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
| Category |
PLCs/Machine Contro
|
| Part Number | 5094-IA16 |
| Subcatecory |
PLC Module/Rack
|
| Amperage | 15 mA |
|
Temperature Rating |
-40 to 70°C |
| Voltage | 120 VAC |
| Mounting Type | DIN Rail |
| Type | Digital |
| Weight | 0.50 lbs |
Information About 5094-IA16
The Allen-Bradley 5094-IA16 is a 16-channel 120V AC digital input module from the FLEX 5000™ I/O series, designed for high-density signal acquisition in industrial automation systems. It detects input transitions from field devices, converting them into logic-level signals for controller processing. The module supports the Producer/Consumer communication model, enabling efficient data exchange within distributed control architectures.
Key Features:
-
Input Channels: 16 (single group)
-
Voltage Category: 120V AC
-
Input Voltage Range: 74–132V AC
-
Frequency Range: 47–63 Hz
-
Input Current per Channel: Max 15 mA @ 120V AC
-
On-State Current: Nominal 10 mA @ 120V AC
-
Off-State Voltage: Max 20V AC
-
Input Impedance: Nominal 12 kΩ @ 120V AC
-
Power Dissipation: Max 3.5 W
-
Thermal Dissipation: Max 11.9 BTU/hr
-
Isolation Voltage: 250V (continuous), reinforced insulation between system and field
-
Indicators: 1 green/red module status, 1 green/red SA power status, 16 yellow/red I/O status indicators
-
Mounting Orientation: Horizontal, vertical, and inverted
-
Enclosure Type Rating: None (open-style)
This module is ideal for applications requiring reliable detection of 120V AC input signals, offering flexibility and high performance in distributed I/O systems.
