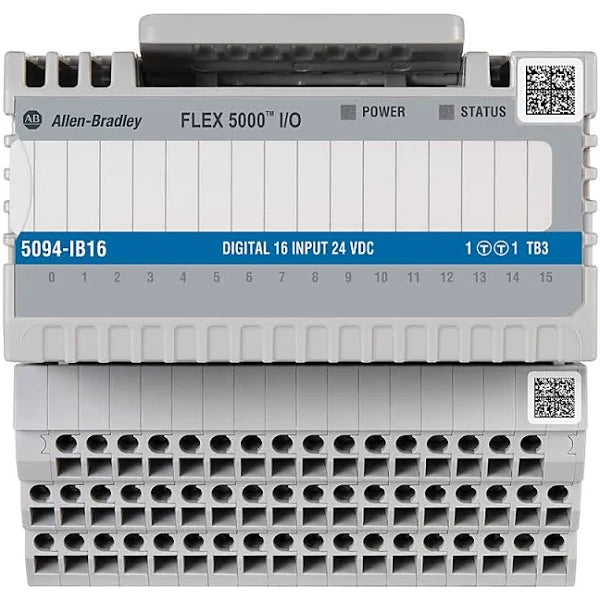

5094-IB16  | Allen-Bradley FLEX 5000 Input Module, 24V DC, 16 Inputs
5094-IB16  | Allen-Bradley FLEX 5000 Input Module, 24V DC, 16 Inputs
Part #: 5094-IB16 Manufactured by: Allen-Bradley

5094-IB16 | Allen-Bradley FLEX 5000 Input Module, 24V DC, 16 Inputs

Regular price
$344.00
Sale price
$344.00
Regular price
Never Used Surplus
2 in Stock
Product Overview
The 5094-IB16 is a Safety Digital 16-point Sinking Input Module manufactured by Allen-Bradley which has an On-state voltag...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
Product comes with IQElectro 2-Year Warranty
Warranty for item #: 5094-IB16
IQElectro International provides a 2-year warranty on every product we offer. Our complimentary 2-year warranty ensures that every IQElectro purchase is a trustworthy and reliable investment in the future of your company.
IQElectro is NOT an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
5094-IB16  | Allen-Bradley FLEX 5000 Input Module, 24V DC, 16 Inputs
    5094-IB16  | Allen-Bradley FLEX 5000 Input Module, 24V DC, 16 Inputs
5094-IB16  | Allen-Bradley FLEX 5000 Input Module, 24V DC, 16 Inputs
Return/Exchange within 30-Days.
If any product is damaged upon delivery, you may request an Exchange or Refund within 30 days of receiving your order.
2-3-Day Free Shipping
"IQElectro provides free shipping within 2-3 days from the moment the order is placed on our website.

Product Description P/N: 5094-IB16

Description / Specifications

Description

The Allen-Bradley 5094-IB16 module is a Flex 5000 series input module. It features 16 sinking input channels. The 5094-IB16 sinking input module can support the Ethernet industrial communication network. It operates with an on-state voltage range of 18 to 32 Volts DC. The 5094-IB16 sinking input module can operate at a maximum altitude of 2000 meters above sea level without derating.



Technical Specifications



Brand Allen-Bradley
Manufacturer Rockwell Automation
Part Number 5094-IB16
Module Type Safety Digital 16-point Sinking Input Module
On-state voltage range 10 to 32 Volts DC
On-state current, min 2 mA at 10 Volts DC
On-state current, nom 6 mA at 24 Volts DC
On-state current, max 8 mA at 32 Volts DC
Off-state voltage, max 5 Volts DC
Off-state current, max 1.5 mA
Input impedance, min 1.3 kΩ at 10 Volts DC
Input impedance, nom 4 kΩ at 24 Volts DC
Input impedance, max 7.4 kΩ at 32 Volts DC
Module inrush current, max 250 mA peak (decaying to 37% in 22 ms, without activation)
Input delay time (screw to backplane), max for Off to On and On to Off 100 μs at 25 °C (77 °F)100 μs at 25 °C (77 °F)





Information About 5094-IB16

The Allen-Bradley 5094-IB16 module is a 16-point digital sinking input module from the FLEX 5000 series. This input module is rated for use in industrial settings that have Pollution Degree 2 ratings and for use in applications that have overvoltage Category II ratings. The 5094-IB16 sinking input module can be installed at an altitude of up to 6562 feet or 2000 meters above sea level and operate without derating. This module is rated for industrial environments only and should not be used in residential environments. The 5094-IB16 16-point digital sinking input module ships as an open module and it should be installed in an enclosure that will protect it from dangerous elements in its operating environment and protect its users from being injured by the voltage in its live parts.

The Allen-Bradley 5094-IB16 input module operates with an on-state voltage range of 10 to 32 Volts DC. Its maximum off-state voltage is 5 Volts DC and its maximum off-state current is 1.5 milliamps. This input module can handle different levels of input impedance at different voltage levels. Its minimum input impedance rating is 1.3 kiloohms at 10 Volts DC, its nominal input impedance rating is 4 kiloohms at 24 Volts DC, and its maximum input impedance rating is 7.4 kiloohms at 32 Volts DC. The 5094-IB16 input module is sensitive to ESD or electrostatic discharge. The technicians who are installing or servicing this module should avoid ESD by using a work station that is static-safe, touching a grounded object that discharges potential static, and by avoiding touching the connectors, pins, or circuit components.



Manufacturer information

Allen‑Bradley components, integrated control and information solutions are built for demanding industrial applications. We integrate control and information across the enterprise to make you as productive as possible.

Warrany image

IQElectro 2 Year Warranty

IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.
Warranty Terms and Conditions
warningIQElectro is not an authorized distributor.
IQElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses. Some hardware products may contain software and firmware and may not be legally operated without first obtaining an appropriate license from the manufacturer. IQElectro makes no representation as to whether a product will or will not have software or firmware and, if it does, whether the software or firmware is the revision level that you need for your application. IQElectro also makes no representations as to your ability or right to download or otherwise obtain software or firmware for the product from the Original Manufacturer, its distributors, or any other source. IQElectro also makes no representations as to your right to install any such software or firmware on the product. IQElectro will not obtain or supply software or firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing software or firmware. Customer acknowledges and agrees that IQElectro DOES NOT provide any software, firmware, operating system, or right-to-use licenses with the products it sells. Customers understand and agree that proper software (firmware) licensing, maintenance, and upgrades are subject to the applicable manufacturer's Licensing Agreement or similar document. Disclaimer Policy.
Description / Specifications

Description

The Allen-Bradley 5094-IB16 module is a Flex 5000 series input module. It features 16 sinking input channels. The 5094-IB16 sinking input module can support the Ethernet industrial communication network. It operates with an on-state voltage range of 18 to 32 Volts DC. The 5094-IB16 sinking input module can operate at a maximum altitude of 2000 meters above sea level without derating.



Technical Specifications



Brand Allen-Bradley
Manufacturer Rockwell Automation
Part Number 5094-IB16
Module Type Safety Digital 16-point Sinking Input Module
On-state voltage range 10 to 32 Volts DC
On-state current, min 2 mA at 10 Volts DC
On-state current, nom 6 mA at 24 Volts DC
On-state current, max 8 mA at 32 Volts DC
Off-state voltage, max 5 Volts DC
Off-state current, max 1.5 mA
Input impedance, min 1.3 kΩ at 10 Volts DC
Input impedance, nom 4 kΩ at 24 Volts DC
Input impedance, max 7.4 kΩ at 32 Volts DC
Module inrush current, max 250 mA peak (decaying to 37% in 22 ms, without activation)
Input delay time (screw to backplane), max for Off to On and On to Off 100 μs at 25 °C (77 °F)100 μs at 25 °C (77 °F)





Information About 5094-IB16

The Allen-Bradley 5094-IB16 module is a 16-point digital sinking input module from the FLEX 5000 series. This input module is rated for use in industrial settings that have Pollution Degree 2 ratings and for use in applications that have overvoltage Category II ratings. The 5094-IB16 sinking input module can be installed at an altitude of up to 6562 feet or 2000 meters above sea level and operate without derating. This module is rated for industrial environments only and should not be used in residential environments. The 5094-IB16 16-point digital sinking input module ships as an open module and it should be installed in an enclosure that will protect it from dangerous elements in its operating environment and protect its users from being injured by the voltage in its live parts.

The Allen-Bradley 5094-IB16 input module operates with an on-state voltage range of 10 to 32 Volts DC. Its maximum off-state voltage is 5 Volts DC and its maximum off-state current is 1.5 milliamps. This input module can handle different levels of input impedance at different voltage levels. Its minimum input impedance rating is 1.3 kiloohms at 10 Volts DC, its nominal input impedance rating is 4 kiloohms at 24 Volts DC, and its maximum input impedance rating is 7.4 kiloohms at 32 Volts DC. The 5094-IB16 input module is sensitive to ESD or electrostatic discharge. The technicians who are installing or servicing this module should avoid ESD by using a work station that is static-safe, touching a grounded object that discharges potential static, and by avoiding touching the connectors, pins, or circuit components.



Manufacturer information

Allen‑Bradley components, integrated control and information solutions are built for demanding industrial applications. We integrate control and information across the enterprise to make you as productive as possible.
