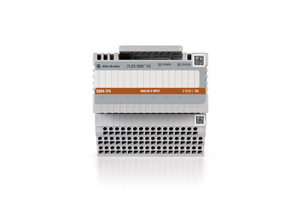

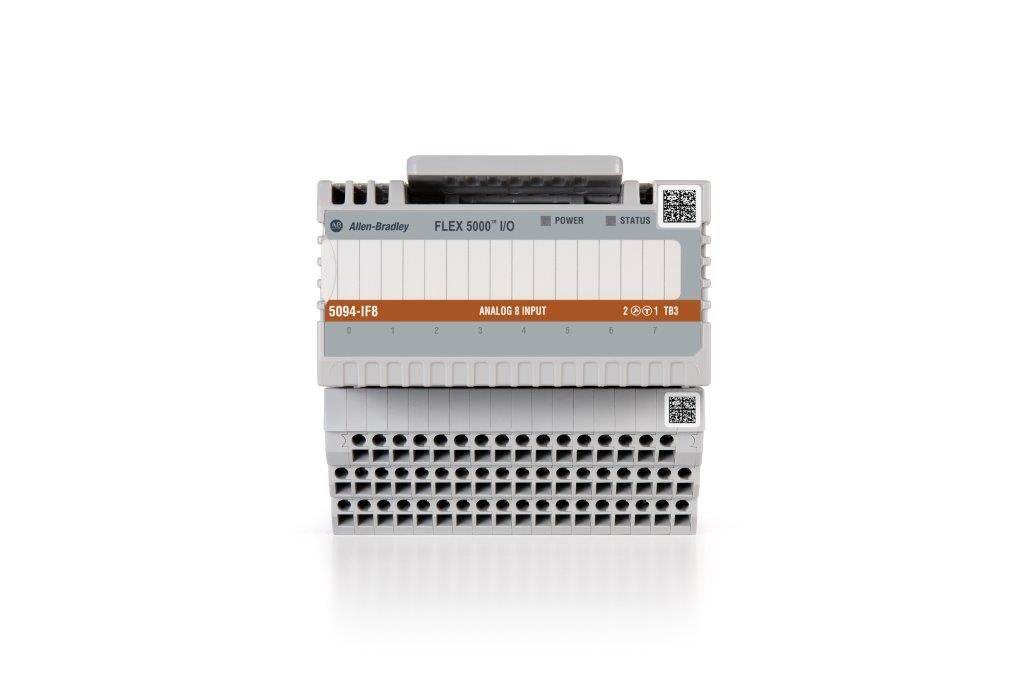

Part #: 5094-IF8 Manufactured by: Allen-Bradley
$919.00
$919.00
9 in Stock

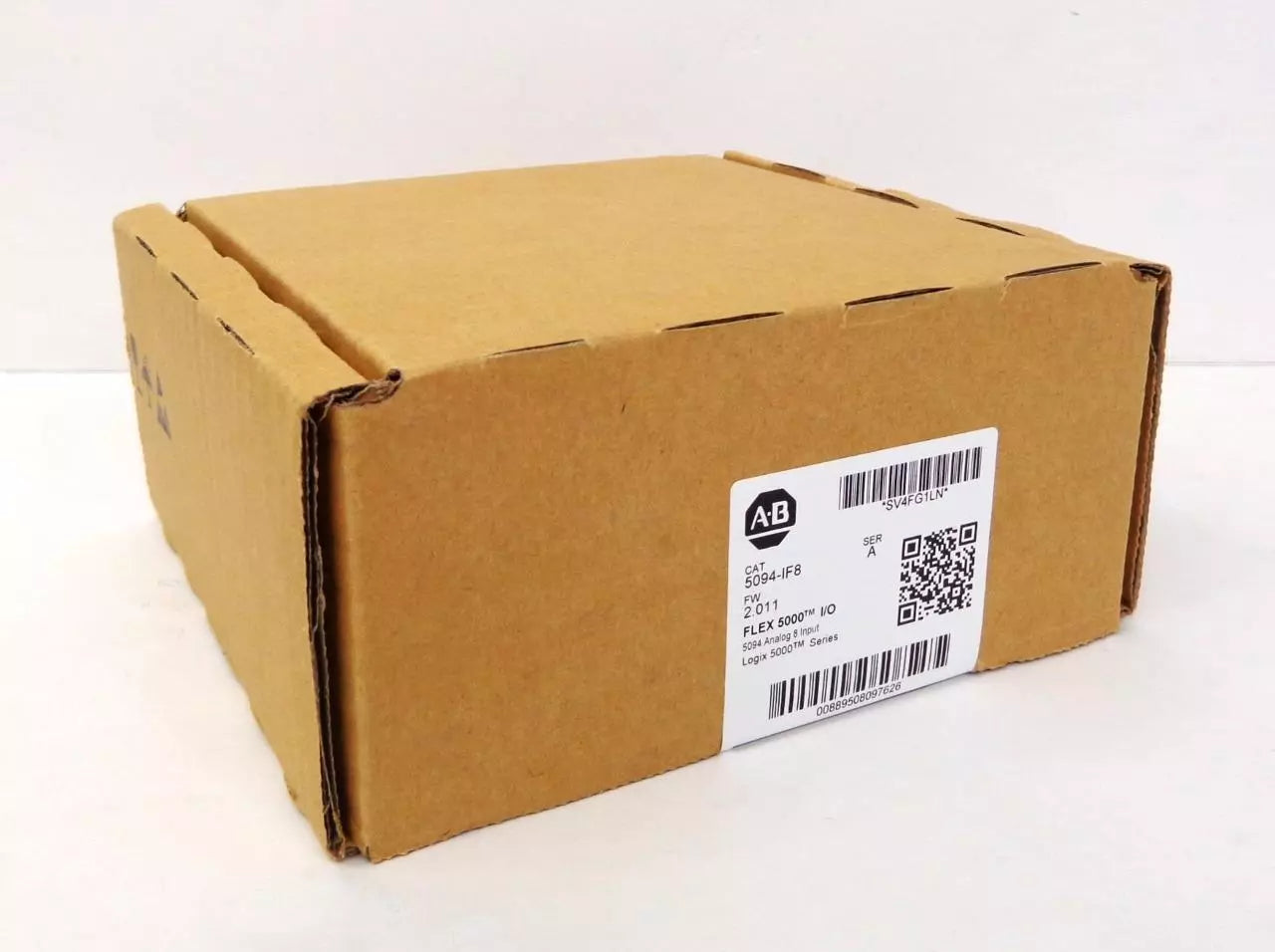

Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The 5094-IF8 is an Analog 8-channel Current/Voltage Input Module manufactured by Allen-Bradley which has Inputs of 8 singl...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Do you need help?

Call our Sales Manager
phone
+1 (828) 222-3490
Mon./Sat.: 7:00AM - 8:00PM
Write to us now
email
sales@iqelectro.com
Mon./Sat.: 7:00AM - 12:00PM
warranty
IQElectro 2-Year Warranty
Warranty for Product #: 5094-IF8
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: 5094-IF8

Description / Specifications

Description

The 5094-IF8 input module is an 8-channel input module from the Allen-Bradley/ Rockwell Automation Flex 5000 series. All 8 of the input channels are single-ended. The 5094-IF8 input module is a DC-powered input module. Its input voltage range is from 18 to 32 Volts DC. It has a maximum sensor-actuator or SA current rating of 120 milliamps. The 5094-IF8 input module supports Category 2 wire for its power ports and its shielded ports.



Technical Specifications



Brand Allen-Bradley
Manufacturer Rockwell Automation
Part Number 5094-IF8
Module Type Analog 8-channel Current/Voltage Input Module
Inputs 8 single-ended
Input range, voltage ±10V0...10V0...5V
Input range, current 0...20 mA4...20 mA
Input impedance Voltage: >1 MΩ Current: 250 Ω typical
Common mode voltage (channel to channel) ±10V
Module conversion method Sigma-Delta,Two 24-bit multiplexed ADC
Resolution, voltage (16 bits at 10 Hz notch filter) ±10.5V: <320 μV/count(15 bits plus sign bipolar)0...10.5V: <160 μV/count(16 bits unipolar)0...5.25V: <80 μ/V count(16 bits unipolar)
Resolution, current (16 bits at 10 Hz notch filter 0...21 mA: <0.32 μA/count(16 bits)3.6...21 mA: <0.32 μA/count(16 bits)
Calibrated accuracy at 25 °C (77 °F) Voltage: 0.05% full scaleCurrent: 0.05% full scale
Accuracy drift with temperature Voltage: 28 ppm/ºCCurrent: 47 ppm/ºC
Scan Time Per channel, Per module 625 μs, 2.5 ms
Series A





Information About 5094-IF8

The Allen-Bradley 5094-IF8 FLEX 5000 module comes with 8 channels, and it is a current and voltage input module. The module’s 8 inputs are single-ended input channels. It uses Sigma-Delta module conversion and two 24-bit multiplexed ADC module conversion too. The 5094-IF8 module’s scan time is 360 microseconds per channel and 1.4 milliseconds per module. This current and voltage input module has the HART handheld compliance rating. It can scale to engineering units, timestamp the inputs, and handle real-time onboard data alarming and CIP Sync. The data formats that the 5094-IF8 module can use are the IEEE 754 data format and the 32-bit floating-point data format. The 5094-IF8 module uses category 2 wire for its shielded ports and for its power ports.

The Allen-Bradley 5094-IF8 FLEX 5000 8-channel module comes factory calibrated, but it can be user-calibrated too. Its maximum backplane power voltage rating is 15 Volts DC and the maximum backplane power current is 70 milliamps. The sensor actuator (SA) power voltage range for the 5094-IF8 module 18 to 32 Volts DC and its maximum sensor-actuator (SA) current rating is 120 milliamps. The maximum power dissipation rating in the current mode is 3.5 Watts and the maximum thermal dissipation rating in the current rating 11.94 BTU/hour. This module is an open module that does not come with an enclosure. The maximum surrounding air temperature that the 5094-IF8 current and voltage module can withstand is 158 degrees Fahrenheit.


Manufacturer information

Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.

Frequently Asked Questions about 5094-IF8
Question: What are the key specifications of the 5094-IF8 module?
Date Update:28/05/2025
Answer:
  • Input Channels: 8 single-ended, non-isolated
  • Input Types: Current and Voltage
  • Current Input Ranges: 0–20 mA, 4–20 mA
  • Voltage Input Ranges: ±10V, 0–10V, 0–5V
  • Input Impedance: Voltage: 1 MΩ, Current: 250 Ω (typical)
  • Resolution: 16 bits
  • Conversion Type: Delta-Sigma
  • Operating Temperature: -20°C to 60°C (-4°F to 140°F)
  • Power Supply: 24V DC
  • Mounting: DIN rail
  • Certifications: UL, CE, ATEX, IECEx, CCC, RCM
Question: What types of analog signals can the 5094-IF8 module process?
Date Update:28/05/2025
Answer:

The 5094-IF8 module is capable of processing both current and voltage analog signals. It supports:

  • Current Inputs: 0–20 mA, 4–20 mA
  • Voltage Inputs: ±10V, 0–10V, 0–5V

Each of the eight input channels can be individually configured for current or voltage input, providing flexibility for various analog signal applications.

Question: How is the 5094-IF8 module configured and integrated into a FLEX 5000 system?
Date Update:28/05/2025
Answer:

The 5094-IF8 module is designed to be an expansion I/O module for FLEX 5000 systems. It connects to the system via the expansion I/O bus. Configuration involves:

  • Input Type Selection: Each channel can be individually configured for current or voltage input through the Studio 5000 Logix Designer® software.
  • Software Configuration: Using Studio 5000 Logix Designer®, you can configure the input ranges, scaling factors, and other parameters for each channel.

Ensure that the module is properly addressed in the I/O configuration of the controller to facilitate accurate data acquisition.

Question: What are the wiring and installation guidelines for the 5094-IF8 module?
Date Update:28/05/2025
Answer:

Wire Size: Use solid or stranded copper wire rated at 90°C (194°F), with sizes ranging from 14 to 22 AWG.

Terminal Screw Torque: Tighten terminal screws to the specified torque as per the installation manual.

Shielding: For analog signals, use shielded cables to minimize electrical noise. Connect the shield to ground at one end only.

Mounting: The module can be mounted on a DIN rail. Ensure that it is installed in a clean, dry environment (Pollution Degree 2) and that it is not more than six modules away from the system power supply.

Question: What are the environmental and operational considerations for the 5094-IF8 module?
Date Update:28/05/2025
Answer:
  • Operating Temperature Range: -20°C to 60°C (-4°F to 140°F)
  • Storage Temperature Range: -40°C to 85°C (-40°F to 185°F)
  • Relative Humidity: 5% to 95% non-condensing
  • Vibration: 5 g at 10–500 Hz
  • Shock: 30 g
  • Enclosure Type: Open-style; the module should be installed within an appropriate enclosure to protect against environmental factors.
IQElectro is not an authorized distributor.
QElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
Description / Specifications

Description

The 5094-IF8 input module is an 8-channel input module from the Allen-Bradley/ Rockwell Automation Flex 5000 series. All 8 of the input channels are single-ended. The 5094-IF8 input module is a DC-powered input module. Its input voltage range is from 18 to 32 Volts DC. It has a maximum sensor-actuator or SA current rating of 120 milliamps. The 5094-IF8 input module supports Category 2 wire for its power ports and its shielded ports.



Technical Specifications



Brand Allen-Bradley
Manufacturer Rockwell Automation
Part Number 5094-IF8
Module Type Analog 8-channel Current/Voltage Input Module
Inputs 8 single-ended
Input range, voltage ±10V0...10V0...5V
Input range, current 0...20 mA4...20 mA
Input impedance Voltage: >1 MΩ Current: 250 Ω typical
Common mode voltage (channel to channel) ±10V
Module conversion method Sigma-Delta,Two 24-bit multiplexed ADC
Resolution, voltage (16 bits at 10 Hz notch filter) ±10.5V: <320 μV/count(15 bits plus sign bipolar)0...10.5V: <160 μV/count(16 bits unipolar)0...5.25V: <80 μ/V count(16 bits unipolar)
Resolution, current (16 bits at 10 Hz notch filter 0...21 mA: <0.32 μA/count(16 bits)3.6...21 mA: <0.32 μA/count(16 bits)
Calibrated accuracy at 25 °C (77 °F) Voltage: 0.05% full scaleCurrent: 0.05% full scale
Accuracy drift with temperature Voltage: 28 ppm/ºCCurrent: 47 ppm/ºC
Scan Time Per channel, Per module 625 μs, 2.5 ms
Series A





Information About 5094-IF8

The Allen-Bradley 5094-IF8 FLEX 5000 module comes with 8 channels, and it is a current and voltage input module. The module’s 8 inputs are single-ended input channels. It uses Sigma-Delta module conversion and two 24-bit multiplexed ADC module conversion too. The 5094-IF8 module’s scan time is 360 microseconds per channel and 1.4 milliseconds per module. This current and voltage input module has the HART handheld compliance rating. It can scale to engineering units, timestamp the inputs, and handle real-time onboard data alarming and CIP Sync. The data formats that the 5094-IF8 module can use are the IEEE 754 data format and the 32-bit floating-point data format. The 5094-IF8 module uses category 2 wire for its shielded ports and for its power ports.

The Allen-Bradley 5094-IF8 FLEX 5000 8-channel module comes factory calibrated, but it can be user-calibrated too. Its maximum backplane power voltage rating is 15 Volts DC and the maximum backplane power current is 70 milliamps. The sensor actuator (SA) power voltage range for the 5094-IF8 module 18 to 32 Volts DC and its maximum sensor-actuator (SA) current rating is 120 milliamps. The maximum power dissipation rating in the current mode is 3.5 Watts and the maximum thermal dissipation rating in the current rating 11.94 BTU/hour. This module is an open module that does not come with an enclosure. The maximum surrounding air temperature that the 5094-IF8 current and voltage module can withstand is 158 degrees Fahrenheit.


Manufacturer information

Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
