5094-IY8 | Allen-Bradley | Analog Input Module
- Regular price
- $2,247.00
- Sale price
- $2,247.00
- Regular price
-
Couldn't load pickup availability
Do you need help?

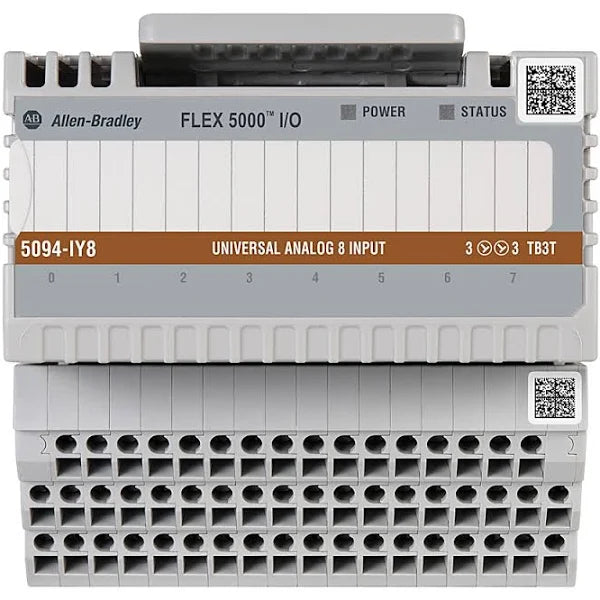

Product Description P/N: 5094-IY8
Description
The Allen-Bradley 5094-IY8 Flex 5000 Analog Input Module is designed for precise data acquisition in industrial environments. Featuring 8 differential or single-ended inputs, it offers versatility in signal acquisition. The module supports a wide range of signal types including current, voltage, resistance temperature detectors (RTD), and thermocouples.
With a signal range spanning from 4-20mA for current inputs to ±100 mV for voltage inputs, it accommodates various input signals commonly encountered in industrial applications. Additionally, it supports resistance ranges from 1 to 5000 Ohms, catering to diverse sensing requirements.
Technical Specifications
|
Brand |
Allen-Bradley |
|
Part Number |
5094-IY8XT |
|
Module Type |
Analog 8-channel Current/Voltage/RTD/Thermocouple Input Module |
|
Inputs |
8 differential/single-ended |
|
Differential / Single-ended mode |
Yes |
|
Input range, voltage |
±10V, 0-10V, 0-5V |
|
Input range, current |
0-20 mA, 4-20 mA |
|
Input range, resistive |
1-500 Ω, 2-1000 Ω, 4-2000 Ω, 8-4000 Ω |
|
Input type, RTD |
100Ω, 200Ω, 500Ω, 1000Ω platinum, alpha=385 |
|
Input type, RTD |
100Ω, 200Ω, 500Ω, 1000Ω platinum, alpha=3916 |
|
Input type, RTD |
120Ω nickel, alpha=672 |
|
Input type, RTD |
100Ω, 120Ω, 200Ω, 500Ω nickel, alpha=618 |
|
Input type, RTD |
10Ω copper 427 |
|
Input range, thermocouple / millivolt |
±100 mV |
|
Input type, thermocouple |
B, C, D, E, J, K, L (TXK/XK), N, R, S, T |
|
Input impedance |
Voltage: >1 MΩ |
|
Input impedance |
Current: 90 Ω typical, 70-110 Ω range |
|
Input impedance |
RTD: >1 MΩ |
|
Input impedance |
Thermocouple/millivolt: >1 MΩ |
|
Common mode voltage (channel to channel) |
±10V |
|
Module conversion method |
Sigma-Delta, Two 24-bit multiplexed ADC |
Information About 5094-IY8
The Allen-Bradley 5094-IY8 Flex 5000 Analog Input Module is engineered for precise industrial applications requiring versatile input capabilities. Offering 8 inputs, it supports both differential and single-ended configurations. The module accommodates a wide range of input types, including current, voltage, RTD (Resistance Temperature Detector), and thermocouple signals.
For current inputs, the module accepts signals within the range of 4-20mA and 0-20mA. Voltage inputs can vary between ±10V, 0-10V, and 0-5V, providing flexibility for different voltage levels. It also caters to RTD inputs with resistances ranging from 1 to 500 Ohms, 2 to 1000 Ohms, 4 to 2000 Ohms, and 8 to 4000 Ohms.
Moreover, the module supports a diverse array of thermocouple types including B, C, D, E, J, K, L (TXK/XK), N, R, S, and T. Additionally, it accepts millivolt signals within the range of ±100 mV, allowing for precise measurements in various industrial contexts.
Each input channel is designed to ensure accuracy and reliability in data acquisition. The module integrates seamlessly into complex industrial systems, offering robust performance under diverse operating conditions. Its versatile input capabilities make it suitable for a wide range of applications across different industries.
Furthermore, the Allen-Bradley 5094-IY8 Flex 5000 Analog Input Module conforms to stringent industrial standards, ensuring compatibility and reliability in demanding environments. With its comprehensive feature set and precise signal processing capabilities, it provides engineers and operators with valuable insights into critical process variables.
Manufacturer information
Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
